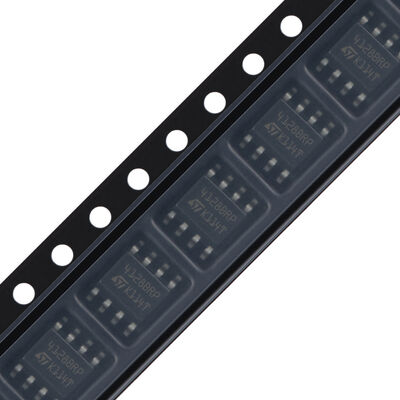

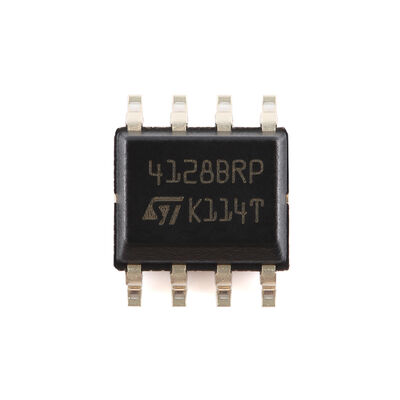

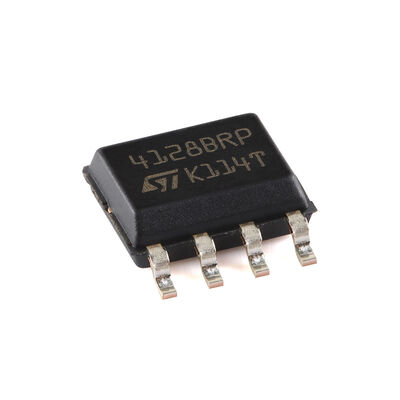

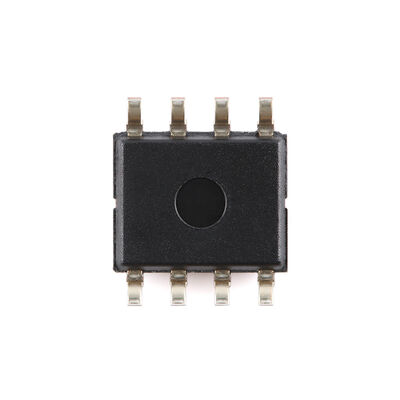

M24128-BRMN6TP 128-Kbit serial I²C bus EEPROM 1.8V~5.5V 1MHz I2C

• Compatible with all I2C bus modes: 1 MHz, 400 kHz, 100 kHz
• Memory array: 128 Kbit (16 Kbyte) of EEPROM
• Page size: 64 byte
• Additional Write lockable page (M24128-D order codes)
• Single supply voltage and high speed: 1 MHz clock from 1.7 V to 5.5 V
• Write operations: Byte Write within 5 ms, Page Write within 5 ms
• Operating temperature range: -40 °C to +85 °C
• Random and sequential Read modes
• Write protect of the whole memory array
• Enhanced ESD/Latch-Up protection
• More than 4 million Write cycles
• More than 200-years data retention

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
