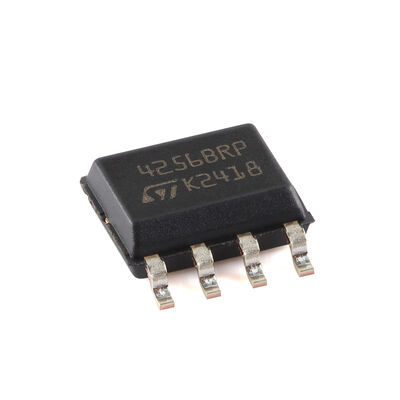

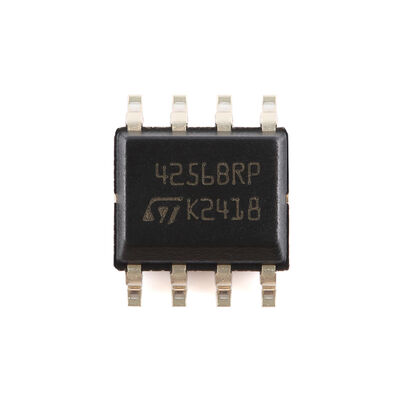

M24256-BRMN6TP 256-Kbit serial I²C bus EEPROM I2C 1.8V~5.5V 1MHz

Large Image : M24256-BRMN6TP 256-Kbit serial I²C bus EEPROM I2C 1.8V~5.5V 1MHz

Product Details:

Place of Origin:	CN
Brand Name:	ST
Certification:	rohs
Model Number:	M24256-BRMN6TP
Document:	C155665_1515157394966123466...68.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	consult with

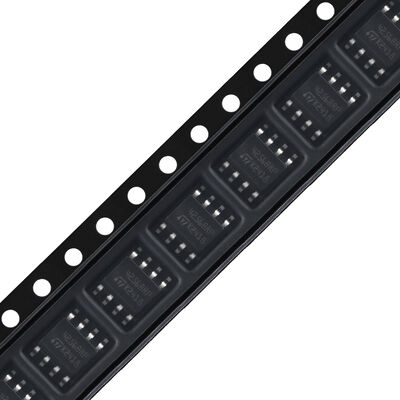

Packaging Details:	T/R
Delivery Time:	5-8days
Payment Terms:	T/T,Western Union
Supply Ability:	100000

Contact Now Chat Now

M24256-BRMN6TP 256-Kbit serial I²C bus EEPROM I2C 1.8V~5.5V 1MHz

Description

Operating Temperature:	-40℃~+85℃	Operating Voltage:	1.8V~5.5V
Interface Type:	I2C	Storage Capadity:	256Kbit
Clock Frequency (fc):	1MHz	Write Cycle Time (Tw):	5ms
Highlight:	256-Kbit I2C bus EEPROM chip , 1.8V~5.5V serial EEPROM memory , 1MHz I²C EEPROM with warranty

M24256-BRMN6TP 256-Kbit serial I²C bus EEPROM I2C 1.8V~5.5V 1MHz

Product Overview

M24256-BRMN6TP 256-Kbit serial I²C bus EEPROM I2C 1.8V~5.5V 1MHz. Compatible models include M24256-BW, M24256-BR, M24256-BF, M24256-DR, and M24256-DF.

Key Features

Compatible with all I2C bus modes: 1 MHz, 400 kHz, and 100 kHz
Memory array: 256 Kbit (32 Kbytes) of EEPROM with 64-byte page size
Additional write lockable page (M24256-D order codes)
Single supply voltage and high speed: 1 MHz clock from 1.7 V to 5.5 V
Fast write operations: Byte Write and Page Write within 5 ms
Wide operating temperature range: -40 °C to +85 °C
Random and sequential Read modes
Write protect of the whole memory array
Enhanced ESD/Latch-Up protection
Exceptional durability: Over 4 million Write cycles
Long-term data retention: Over 200 years

Signal Pin Configuration

Signal Name	Function	Direction
E2, E1, E0	Chip Enable	Input
SDA	Serial Data	I/O
SCL	Serial Clock	Input
WC	Write Control	Input
VCC	Supply Voltage	-
VSS	Ground	-

Product Documentation

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
