M24256E-FMN6TP 256-Kbit Serial I²C Bus EEPROM With Configurable Device Address Andpreprogrammed Device Address

M24256E-FMN6TP 256-Kbit Serial I²C Bus EEPROM With Configurable Device Address Andpreprogrammed Device Address
M24256E-FMN6TP 256-Kbit Serial I²C Bus EEPROM With Configurable Device Address Andpreprogrammed Device Address M24256E-FMN6TP 256-Kbit Serial I²C Bus EEPROM With Configurable Device Address Andpreprogrammed Device Address M24256E-FMN6TP 256-Kbit Serial I²C Bus EEPROM With Configurable Device Address Andpreprogrammed Device Address M24256E-FMN6TP 256-Kbit Serial I²C Bus EEPROM With Configurable Device Address Andpreprogrammed Device Address

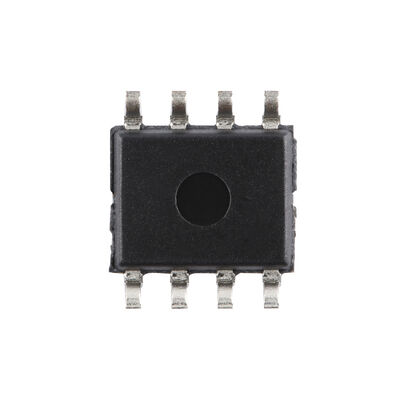

Large Image :  M24256E-FMN6TP 256-Kbit Serial I²C Bus EEPROM With Configurable Device Address Andpreprogrammed Device Address

Product Details:
Place of Origin: CN
Brand Name: ST
Certification: rohs
Model Number: M24256-BRMN6TP
Document: C155665_1515157394966123466...2).pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

M24256E-FMN6TP 256-Kbit Serial I²C Bus EEPROM With Configurable Device Address Andpreprogrammed Device Address

Description
Operating Temperature: -40℃~+85℃ Operating Voltage: 1.8V~5.5V
Interface Type: I2C Storage Capadity: 256Kbit
Clock Frequency (fc): 1MHz Write Cycle Time (Tw): 5ms
Highlight:

256-Kbit I²C Bus EEPROM

,

Serial EEPROM with configurable address

,

Preprogrammed address EEPROM chip

M24256E-FMN6TP 256-Kbit Serial I²C Bus EEPROM
256-Kbit Serial I²C Bus EEPROM with configurable device address and preprogrammed device address capabilities.
Key Features
  • Compatible with I²C bus modes:
    • 1 MHz (Fast-mode Plus)
    • 400 kHz (Fast-mode)
    • 100 kHz (Standard-mode)
  • Memory array: 256 Kbit (32 Kbytes) of EEPROM
  • Page size: 64 bytes with additional identification page
  • Single supply voltage: 1.6 to 5.5 V
  • Operating temperature range: -40°C to +85°C
  • Write cycle time: Byte write within 5 ms, Page write within 5 ms
  • Random and sequential read modes
  • Write protection of the whole memory array
  • Configurable device address with preprogrammed option
  • Enhanced ESD and latch-up protection
  • More than 4 million write cycles
  • More than 200-year data retention
Signal Pin Functions
Signal Name Function Direction
SDA Serial data I/O
SCL Serial clock Input
VCC Supply voltage -
VSS Ground -
WC Write control Input

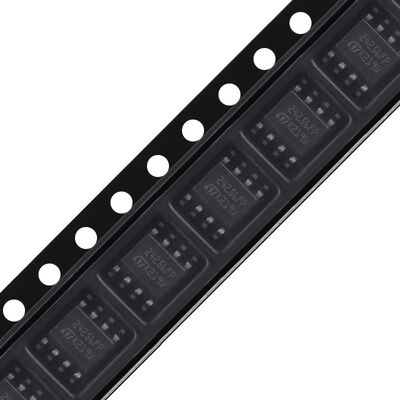

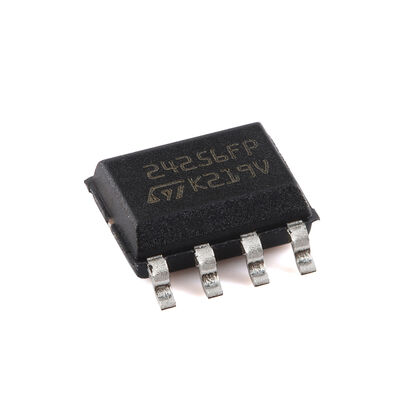

M24256E-FMN6TP 256-Kbit Serial I²C Bus EEPROM With Configurable Device Address Andpreprogrammed Device Address 0 M24256E-FMN6TP 256-Kbit Serial I²C Bus EEPROM With Configurable Device Address Andpreprogrammed Device Address 1 M24256E-FMN6TP 256-Kbit Serial I²C Bus EEPROM With Configurable Device Address Andpreprogrammed Device Address 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
