M95080-WMN6TP 8-Kbit Serial SPI Bus EEPROM With High-speed Clock 2.5V~5.5V 20MHz

M95080-WMN6TP 8-Kbit Serial SPI Bus EEPROM With High-speed Clock 2.5V~5.5V 20MHz
M95080-WMN6TP 8-Kbit Serial SPI Bus EEPROM With High-speed Clock 2.5V~5.5V 20MHz M95080-WMN6TP 8-Kbit Serial SPI Bus EEPROM With High-speed Clock 2.5V~5.5V 20MHz M95080-WMN6TP 8-Kbit Serial SPI Bus EEPROM With High-speed Clock 2.5V~5.5V 20MHz M95080-WMN6TP 8-Kbit Serial SPI Bus EEPROM With High-speed Clock 2.5V~5.5V 20MHz

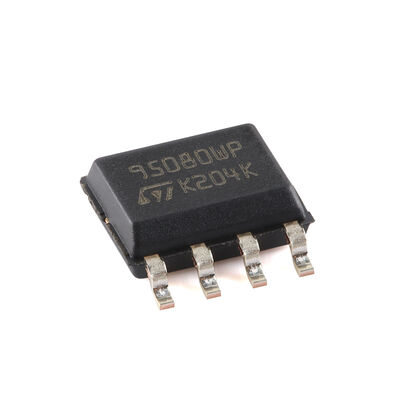

Large Image :  M95080-WMN6TP 8-Kbit Serial SPI Bus EEPROM With High-speed Clock 2.5V~5.5V 20MHz

Product Details:
Place of Origin: CN
Brand Name: ST
Certification: rohs
Model Number: M95080-WMN6TP
Document: 1457707261447.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with

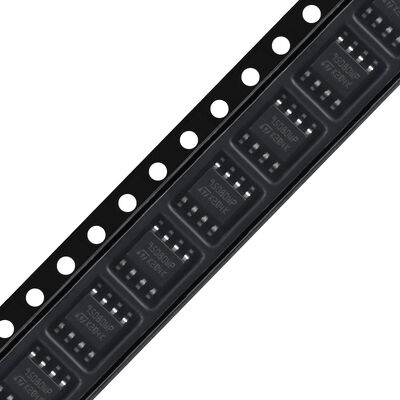

Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

M95080-WMN6TP 8-Kbit Serial SPI Bus EEPROM With High-speed Clock 2.5V~5.5V 20MHz

Description
Operating Temperature: -40℃~+85℃ Operating Voltage: 2.5V~5.5V
Interface Type: I2C Storage Capadity: 8Kbit
Clock Frequency (fc): 20MHz Write Cycle Time (Tw): 5ms
Highlight:

8-Kbit SPI Bus EEPROM

,

20MHz high-speed EEPROM chip

,

2.5V~5.5V serial EEPROM

M95080-WMN6TP 8-Kbit Serial SPI Bus EEPROM With High-speed Clock 2.5V~5.5V 20MHz
M95080-WMN6TP 8-Kbit Serial SPI Bus EEPROM With High-speed Clock 2.5V~5.5V 20MHz
Product Variants
M95080-W M95080-R M95080-DF
Key Features
  • Compatible with the Serial Peripheral Interface (SPI) bus
  • Memory array:
    • 8 Kb (1 Kbyte) of EEPROM
    • Page size: 32 bytes
    • Additional Write lockable Page (Identification page)
  • Write performance:
    • Byte Write within 5 ms
    • Page Write within 5 ms
  • Write Protect: quarter, half or whole memory array
  • High-speed clock: 20 MHz
  • Single supply voltage:
    • 2.5 V to 5.5 V for M95080-W
    • 1.8 V to 5.5 V for M95080-R
    • 1.7 V to 5.5 V for M95080-DF
  • Operating temperature range: -40°C to +85°C
  • Enhanced ESD protection
  • More than 4 million Write cycles
  • More than 200-year data retention
Signal Pin Configuration
Signal Name Function Direction
C Serial Clock Input
D Serial Data Input Input
Q Serial Data Output Output
S Chip Select Input
W Write Protect Input
HOLD Hold Input
VCC Supply voltage -
VSS Ground -
M95080-WMN6TP 8-Kbit Serial SPI Bus EEPROM With High-speed Clock 2.5V~5.5V 20MHz 0 M95080-WMN6TP 8-Kbit Serial SPI Bus EEPROM With High-speed Clock 2.5V~5.5V 20MHz 1 M95080-WMN6TP 8-Kbit Serial SPI Bus EEPROM With High-speed Clock 2.5V~5.5V 20MHz 2 M95080-WMN6TP 8-Kbit Serial SPI Bus EEPROM With High-speed Clock 2.5V~5.5V 20MHz 3
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
