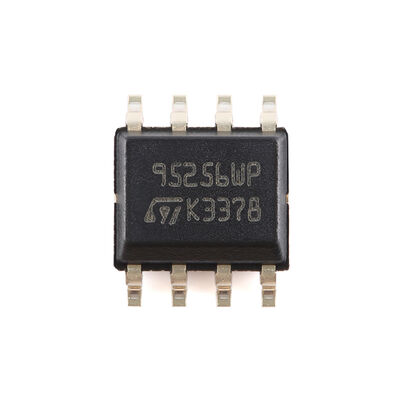

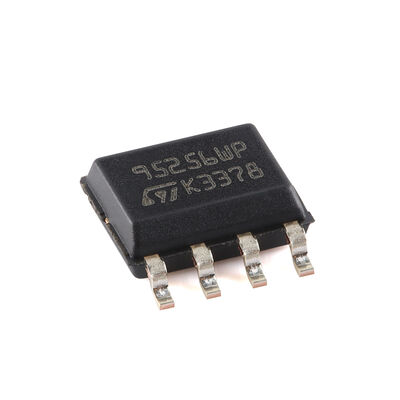

M95256-WMN6TP 256-Kbit Serial SPI Bus EEPROM With High-speed Clock

M95256-WMN6TP 256-Kbit Serial SPI Bus EEPROM With High-speed Clock
M95256-WMN6TP 256-Kbit Serial SPI Bus EEPROM With High-speed Clock M95256-WMN6TP 256-Kbit Serial SPI Bus EEPROM With High-speed Clock M95256-WMN6TP 256-Kbit Serial SPI Bus EEPROM With High-speed Clock M95256-WMN6TP 256-Kbit Serial SPI Bus EEPROM With High-speed Clock

Large Image :  M95256-WMN6TP 256-Kbit Serial SPI Bus EEPROM With High-speed Clock

Product Details:
Place of Origin: CN
Brand Name: ST
Certification: rohs
Model Number: M95256-WMN6TP
Document: C283458_836F6AE3903746F09E1...1).pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with

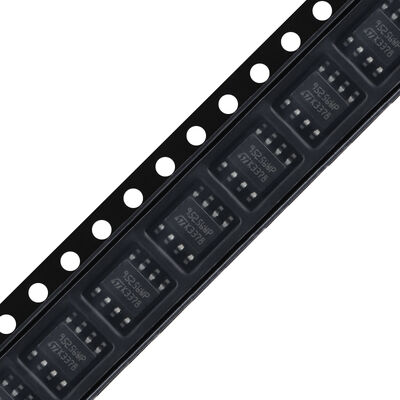

Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

M95256-WMN6TP 256-Kbit Serial SPI Bus EEPROM With High-speed Clock

Description
Operating Temperature: -40℃~+85℃ Operating Voltage: 2.5V~5.5V
Interface Type: SPI Storage Capadity: 256Kbit
Clock Frequency (fc): 20MHz Write Cycle Time (Tw): 5ms
Highlight:

256-Kbit SPI Bus EEPROM

,

high-speed clock EEPROM chip

,

serial EEPROM with warranty

M95256-WMN6TP 256-Kbit Serial SPI Bus EEPROM With High-speed Clock
M95256-WMN6TP 256-Kbit Serial SPI Bus EEPROM With High-speed Clock M95256-W M95256-R M95256-DF
Key Features
  • Compatible with the Serial Peripheral Interface (SPI) bus
  • Memory array: 256 Kb (32 Kbytes) of EEPROM with 64-byte page size
  • Fast write operations: Byte Write and Page Write within 5 ms
  • Additional write lockable identification page
  • Flexible write protection: quarter, half or whole memory array
  • High-speed clock: 20 MHz
  • Single supply voltage options:
    • 2.5 V to 5.5 V for M95256-W
    • 1.8 V to 5.5 V for M95256-R
    • 1.7 V to 5.5 V for M95256-DF
  • Wide operating temperature range: -40°C to +85°C
  • Enhanced ESD protection
  • Exceptional durability: over 4 million write cycles
  • Long-term data retention: over 200 years
Signal Names and Functions
Signal Name Function Direction
C Serial Clock Input
D Serial Data Input Input
Q Serial Data Output Output
S Chip Select Input
W Write Protect Input
HOLD Hold Input
VCC Supply Voltage -
VSS Ground -
M95256-WMN6TP 256-Kbit Serial SPI Bus EEPROM With High-speed Clock 0 M95256-WMN6TP 256-Kbit Serial SPI Bus EEPROM With High-speed Clock 1 M95256-WMN6TP 256-Kbit Serial SPI Bus EEPROM With High-speed Clock 2 M95256-WMN6TP 256-Kbit Serial SPI Bus EEPROM With High-speed Clock 3
Packaging and Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
