LMT87DCKR SC70/TO-92/TO-92S,Analog Temperature Sensors With Class-AB Output

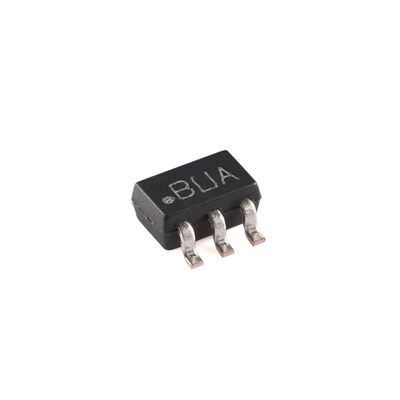

Large Image : LMT87DCKR SC70/TO-92/TO-92S,Analog Temperature Sensors With Class-AB Output

Product Details:

Place of Origin:	CN
Brand Name:	TI
Certification:	ROHS
Model Number:	LMT87DCKR
Document:	lmt87.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	consult with
Packaging Details:	T/R
Delivery Time:	5-8day
Payment Terms:	T/T,Western Union
Supply Ability:	10000

Contact Now Chat Now

LMT87DCKR SC70/TO-92/TO-92S,Analog Temperature Sensors With Class-AB Output

Description

Local Sensor Accuracy (max):	2.7	Rating:	Catalog
Operating Temperature Range (°C):	-50 To 150	Supply Voltage (min) (V):	2.7
Supply Voltage (max) (V):	5.5	Supply Current (max) (µA):	8.1
Interface Type:	Analog Output
Highlight:	LMT87DCKR temperature sensor SC70 , Analog temperature sensor TO-92 , Class-AB output temperature sensor

LMT87DCKR SC70/TO-92/TO-92S Analog Temperature Sensors With Class-AB Output

High-precision analog temperature sensors featuring Class-AB output for accurate thermal monitoring across a wide range of applications.

Key Features

LMT87LPG (TO-92S package) features fast thermal time constant: 10-s typical (1.2 m/s airflow)
Exceptional accuracy: ±0.4°C typical
Low voltage operation: 2.7V
Average sensor gain: -13.6 mV/°C
Ultra-low quiescent current: 5.4 µA
Wide temperature range: –50°C to 150°C
Short-circuit protected output
Push-pull output with ±50 µA drive capability
Footprint compatible with industry-standard LM20/19 and LM35 temperature sensors
Cost-effective alternative to thermistors

Applications
