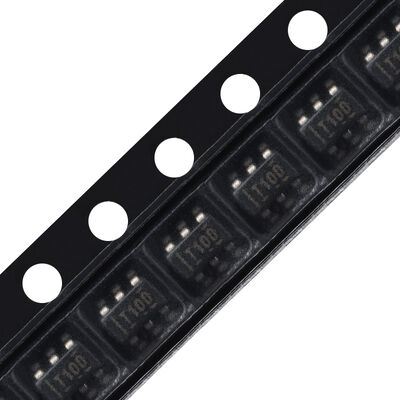

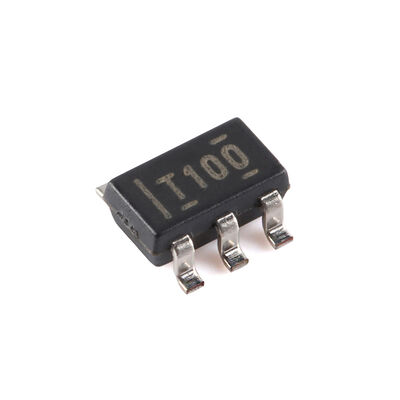

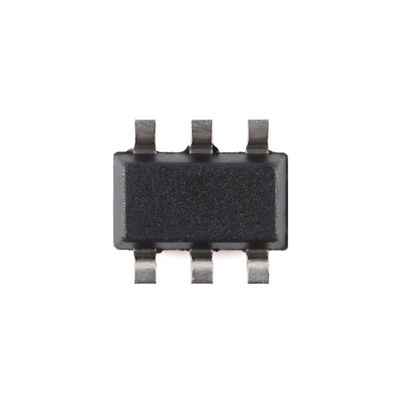

TMP100NA/3K Temperature Sensor With I2C And SMBus Interface WithAlert Function In SOT-23 Package

• Digital Output: SMBus™, Two-Wire, and I2C Interface Compatibility
• Resolution: 9 to 12 Bits, User-Selectable
• Accuracy:
  • ±1°C (Typical) from –55°C to 125°C
  • ±2°C (Maximum) from –55°C to 125°C
• Low Quiescent Current: 45-μA, 0.1-μA Standby
• Wide Supply Range: 2.7 V to 5.5 V
• TMP100 Features Two Address Pins
• TMP101 Features One Address Pin and an ALERT Pin
• 6-Pin SOT-23 Package

The TMP100 and TMP101 devices are digital temperature sensors ideal for negative temperature coefficient (NTC) and positive temperature coefficient (PTC) thermistor replacement. The devices offer a typical accuracy of ±1°C without requiring calibration or external component signal conditioning. Device temperature sensors are highly linear and do not require complex calculations or look-up tables to derive the temperature. The on-chip, 12-bit ADC offers resolutions down to 0.0625°C. The devices are available in 6-Pin SOT-23 packages.

The TMP100 and TMP101 devices feature SMBus, Two-Wire, and I2C interface compatibility. The TMP100 device allows up to eight devices on one bus. The TMP101 device offers an SMBus Alert function with up to three devices per bus.
