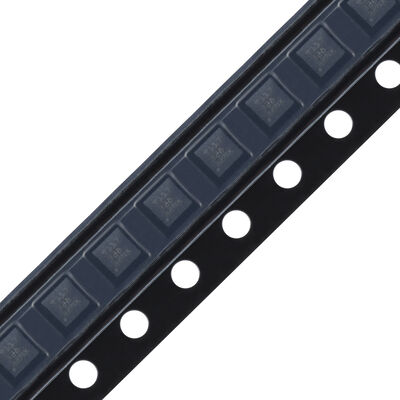

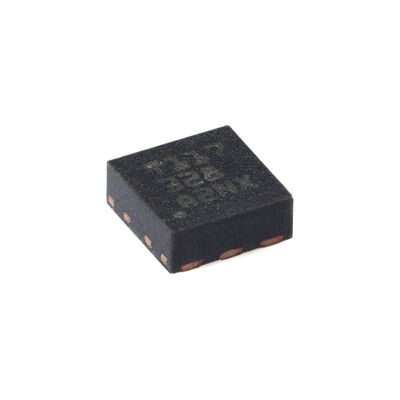

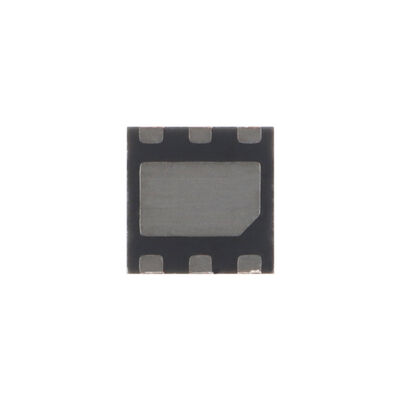

TMP117AIDRVR High-Accuracy Low-Power Digital Temperature SensorWith SMBus™- And I2C-Compatible Interface

• TMP117 high-accuracy temperature sensor
  • ±0.1 °C (maximum) from –20 °C to 50 °C
  • ±0.15 °C (maximum) from –40 °C to 70 °C
  • ±0.2 °C (maximum) from –40 °C to 100 °C
  • ±0.25 °C (maximum) from –55 °C to 125 °C
  • ±0.3 °C (maximum) from –55 °C to 150 °C
• Operating temperature range: –55 °C to 150 °C
• Low power consumption:
  • 3.5-μA, 1-Hz conversion cycle
  • 150-nA shutdown current
• Supply range:
  • 1.7 V to 5.5 V from –55 °C to 70 °C
  • 1.8 V to 5.5 V from –55 °C to 150 °C
• 16-bit resolution: 0.0078°C (1 LSB)
• Programmable temperature alert limits
• Selectable averaging
• Digital offset for system correction
• General-purpose EEPROM: 48 bits
• NIST traceability
• SMBus™, I2C interface compatibility
• Medical grade: meets ASTM E1112 and ISO80601-2-56
• RTDs replacement: PT100, PT500, PT1000

• Electronic thermometers
• Wireless environmental sensors
• Thermostats
• Automotive test equipment
• Wearable fitness and activity monitors
• Cold chain asset tracking
• Gas meters and heat meters
• Temperature transmitters
