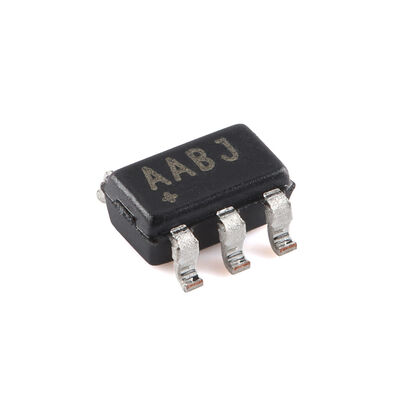

MAX6577ZUT+T SOT Temperature Sensors WithPeriod/Frequency Output

Large Image : MAX6577ZUT+T SOT Temperature Sensors WithPeriod/Frequency Output

Product Details:

Place of Origin:	CN
Brand Name:	ADI
Certification:	rohs
Model Number:	MAX6577ZUT+T
Document:	C2848032_7C5F67BA7CFF39BAAB...6D.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	consult with
Packaging Details:	T/R
Delivery Time:	5-8day
Payment Terms:	T/T,Western Union
Supply Ability:	10000

Contact Now Chat Now

MAX6577ZUT+T SOT Temperature Sensors WithPeriod/Frequency Output

Description

Operating Temperature Range (°C):	-40℃~+125℃	Interface Type:	-
Operating Voltage:	2.7V~5.5V	Standby Current:	-
Temperature Conversion Time:	-	Temperature Resolution:	-
Highlight:	MAX6577ZUT+T SOT temperature sensor , temperature sensor with frequency output , SOT temperature sensor for lithium battery

MAX6577ZUT+T SOT Temperature Sensors With Period/Frequency Output

The MAX6577ZUT+T SOT temperature sensors provide precise temperature monitoring with simple single-wire period or frequency output, ideal for various electronic applications requiring accurate thermal management.

Key Features

Simple Single-Wire Output Interface
Two Output Types Available:
- Temperature to Period (μs) - MAX6576
- Temperature to Frequency (Hz) - MAX6577
±0.8°C Accuracy at +25°C (±3°C maximum)
No External Components Required
Operates from +2.7V to +5.5V Supply Voltage
Low 140μA Typical Supply Current
Standard Operating Temperature Range: -40°C to +125°C
Compact 6-Pin SOT23 Package

Applications

Critical μP and μC Temperature Monitoring
Portable Battery-Powered Equipment
Cell Phones and Mobile Devices
Battery Packs and Power Systems
Hard Drives and Tape Drives
Networking and Telecom Equipment
Medical Equipment and Devices

Product Specifications

Part Number	Temperature Range	Pin Count	Package	SOT Topmark
MAX6576ZUT	-40°C to +125°C	6	SOT23	AABI
MAX6577ZUT	-40°C to +125°C	6	SOT23	AABJ

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
