BH1730FVC-TR Digital 16bit Serial Output TypeAmbient Light Sensor IC

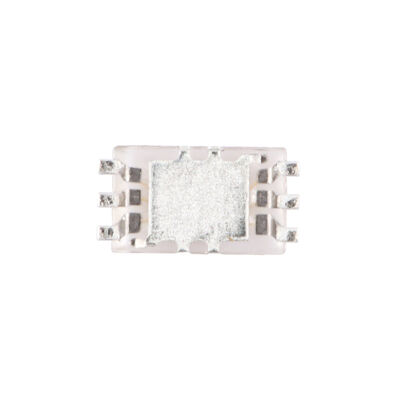

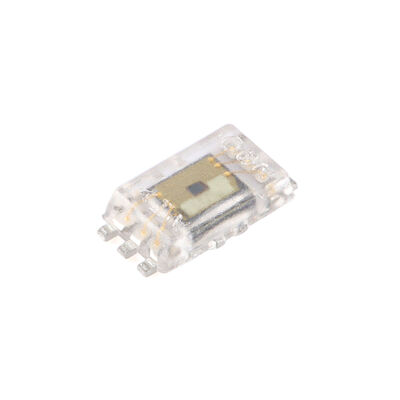

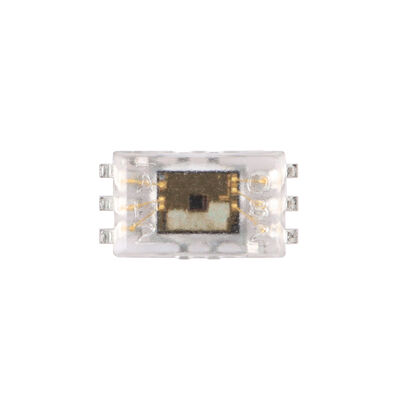

Large Image : BH1730FVC-TR Digital 16bit Serial Output TypeAmbient Light Sensor IC

Product Details:

Place of Origin:	CN
Brand Name:	ROHM
Certification:	rohs
Model Number:	BH1730FVC-TR
Document:	1469779561620.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	consult with
Packaging Details:	T/R
Delivery Time:	5-8day
Payment Terms:	T/T,Western Union
Supply Ability:	10000

Contact Now

BH1730FVC-TR Digital 16bit Serial Output TypeAmbient Light Sensor IC

Description

Operating Temperature Range (°C):	-40℃~+85℃	Interface Type:	I2C
Operating Voltage:	2.4V~3.6V	Operating Current:	16bit
2C I/O Voltage::	1.65V To VCC V	Power Down Current::	0.85 µA (Typ)
Highlight:	16bit ambient light sensor IC , digital ambient light sensor , serial output light sensor IC

BH1730FVC-TR Digital 16-bit Serial Output Ambient Light Sensor IC

The BH1730FVC-TR is a digital 16-bit serial output ambient light sensor IC designed for precise light measurement applications across various lighting conditions.

Key Features

I2C bus interface with f/s mode support and slave address "0101001"
Dual outputs with peak wavelengths for visible light and infrared light
Integrated illuminance to digital converter
Low current consumption with power down function
50Hz/60Hz light noise rejection function
Minimal light source dependency (incandescent, fluorescent, halogen, white LED, sunlight)
Built-in interrupt function
Sensitivity adjustment for optical window compensation

Applications

LCD TVs
Mobile Phones
Tablet PCs
Notebook Computers
Digital Cameras
Portable Gaming Devices

Pin Configuration

Pin No.	Pin Name	Function
1	VCC	Power supply terminal
2	INT	INT pin output terminal. If not in use, connect to GND or leave open.
3	GND	GND terminal
4	SDA	I2C bus interface SDA terminal
5	DVI	I2C bus I/O voltage
6	SCL	I2C bus interface SCL terminal

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
