BH1745NUC-E2 Digital 16bit Serial Output TypeColor Sensor IC

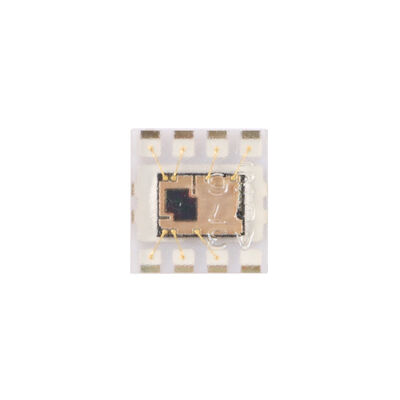

Large Image : BH1745NUC-E2 Digital 16bit Serial Output TypeColor Sensor IC

Product Details:

Place of Origin:	CN
Brand Name:	ROHM
Certification:	rohs
Model Number:	BH1745NUC-E2
Document:	C2837801_041CF2449DB91B4F89...68.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	consult with
Packaging Details:	T/R
Delivery Time:	5-8day
Payment Terms:	T/T,Western Union
Supply Ability:	10000

Contact Now Chat Now

BH1745NUC-E2 Digital 16bit Serial Output TypeColor Sensor IC

Description

Operating Temperature Range (°C):	-40℃~+85℃	Interface Type:	I2C
Operating Voltage:	2.4V~3.6V	Operating Current:	16bit
Maximum Sensitivity::	0.005Lx/step	Power Down Current::	0.85 µA (Typ)
Highlight:	16bit digital color sensor IC , serial output color sensor , BH1745NUC-E2 color sensor IC

BH1745NUC-E2 Digital 16-bit Serial Output Color Sensor IC

The BH1745NUC-E2 is a digital 16-bit serial output color sensor IC designed for precise color detection and light sensing applications across various electronic devices.

Key Features

Excellent IR-cut characteristics with integrated IR-cut filter
High sensitivity and wide dynamic range (0.005 to 40k lx)
Supports low transmittance (dark) window applications
I2C bus interface compatibility (f/s mode support)
Low current consumption with power down function
50Hz/60Hz light noise rejection capability
1.8V logic interface compatibility
Programmable interrupt function
Selectable I2C bus slave addresses (ADDR = L: 0111000, ADDR = H: 0111001)

Applications

LCD TVs, Mobile phones, Notebook PCs, Tablet PCs, Portable game machines, Digital cameras, Digital video cameras, PDAs, LCD displays

Pin Description

Pin No.	Pin Name	Function
1	ADDR	I2C bus slave address terminal
2	VCC	Power supply terminal
3	GND	GND terminal
4	TEST	Test terminal. Connect to GND.
5	SCL	I2C bus Interface SCL terminal
6	SDA	I2C bus Interface SDA terminal
7	INTN	Open drain output. Interrupt setting defined by internal register configurable via I2C bus
8	NC	Non connect (Open)

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
