74LVC1G00GW-Q100H S A Single 2-input NAND Gate. Inputs Can Be Driven From Either 3.3 V Or5 V Devices This Feature Allows The Use Of These Devices As Translators In Mixed 3.3 V And 5 Venvironments

74LVC1G00GW-Q100H S A Single 2-input NAND Gate. Inputs Can Be Driven From Either 3.3 V Or5 V Devices This Feature Allows The Use Of These Devices As Translators In Mixed 3.3 V And 5 Venvironments
74LVC1G00GW-Q100H S A Single 2-input NAND Gate. Inputs Can Be Driven From Either 3.3 V Or5 V Devices This Feature Allows The Use Of These Devices As Translators In Mixed 3.3 V And 5 Venvironments 74LVC1G00GW-Q100H S A Single 2-input NAND Gate. Inputs Can Be Driven From Either 3.3 V Or5 V Devices This Feature Allows The Use Of These Devices As Translators In Mixed 3.3 V And 5 Venvironments 74LVC1G00GW-Q100H S A Single 2-input NAND Gate. Inputs Can Be Driven From Either 3.3 V Or5 V Devices This Feature Allows The Use Of These Devices As Translators In Mixed 3.3 V And 5 Venvironments 74LVC1G00GW-Q100H S A Single 2-input NAND Gate. Inputs Can Be Driven From Either 3.3 V Or5 V Devices This Feature Allows The Use Of These Devices As Translators In Mixed 3.3 V And 5 Venvironments

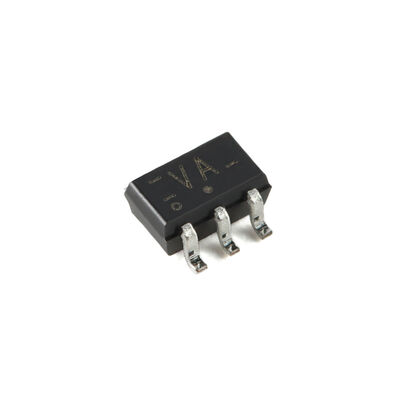

Large Image :  74LVC1G00GW-Q100H S A Single 2-input NAND Gate. Inputs Can Be Driven From Either 3.3 V Or5 V Devices This Feature Allows The Use Of These Devices As Translators In Mixed 3.3 V And 5 Venvironments

Product Details:
Place of Origin: CN
Brand Name: Nexperia
Certification: ROHS
Model Number: 74LVC1G00GW-Q100H
Document: CCAEF448D2211AA7A4DDB0BBD93...43.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

74LVC1G00GW-Q100H S A Single 2-input NAND Gate. Inputs Can Be Driven From Either 3.3 V Or5 V Devices This Feature Allows The Use Of These Devices As Translators In Mixed 3.3 V And 5 Venvironments

Description
Description: Single 2-input NAND Gate VCC (V): 1.65 - 5.5
Logic Switching Levels: CMOS/LVTTL Output Drive Capability (mA): ± 32
Tpd (ns): 2.2 Fmax (MHz): 175
Highlight:

74LVC1G00GW-Q100H NAND gate

,

2-input NAND gate with 3.3V 5V translator

,

single NAND gate with mixed voltage support

74LVC1G00GW-Q100H Single 2-Input NAND Gate
A high-performance single 2-input NAND gate featuring voltage translation capability. Inputs can be driven from either 3.3V or 5V devices, enabling seamless use as translators in mixed 3.3V and 5V environments.
Key Features
  • Automotive product qualification in accordance with AEC-Q100 (Grade 1)
  • Specified from -40°C to +85°C and from -40°C to +125°C
  • Wide supply voltage range from 1.65V to 5.5V
  • Overvoltage tolerant inputs to 5.5V
  • High noise immunity
  • CMOS low power dissipation
  • IOFF circuitry provides partial Power-down mode operation
  • ±24mA output drive (VCC = 3.0V)
  • Latch-up performance exceeds 250mA
  • Direct interface with TTL levels
  • Complies with JEDEC standards:
    • JESD8-7 (1.65V to 1.95V)
    • JESD8-5 (2.3V to 2.7V)
    • JESD8C (2.7V to 3.6V)
    • JESD36 (4.5V to 5.5V)
  • ESD protection:
    • HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000V
    • CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000V
Product Variants
Type Number Temperature Range Package Description
74LVC1G00GW-Q100 -40°C to +125°C TSSOP5 plastic thin shrink small outline package; 5 leads; body width 1.25mm SOT353-1
74LVC1G00GV-Q100 -40°C to +125°C SC-74A plastic surface-mounted package; 5 leads SOT753
Product Images
74LVC1G00GW-Q100H S A Single 2-input NAND Gate. Inputs Can Be Driven From Either 3.3 V Or5 V Devices This Feature Allows The Use Of These Devices As Translators In Mixed 3.3 V And 5 Venvironments 0 74LVC1G00GW-Q100H S A Single 2-input NAND Gate. Inputs Can Be Driven From Either 3.3 V Or5 V Devices This Feature Allows The Use Of These Devices As Translators In Mixed 3.3 V And 5 Venvironments 1 74LVC1G00GW-Q100H S A Single 2-input NAND Gate. Inputs Can Be Driven From Either 3.3 V Or5 V Devices This Feature Allows The Use Of These Devices As Translators In Mixed 3.3 V And 5 Venvironments 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
