74AHC1G32GV-Q100,1 A Single 2-input OR Gate Inputs Are Overvoltagetolerant. This Feature Allows The Use Of These Devices As Translators In Mixed Voltage Environments

74AHC1G32GV-Q100,1 A Single 2-input OR Gate Inputs Are Overvoltagetolerant. This Feature Allows The Use Of These Devices As Translators In Mixed Voltage Environments
74AHC1G32GV-Q100,1 A Single 2-input OR Gate Inputs Are Overvoltagetolerant. This Feature Allows The Use Of These Devices As Translators In Mixed Voltage Environments 74AHC1G32GV-Q100,1 A Single 2-input OR Gate Inputs Are Overvoltagetolerant. This Feature Allows The Use Of These Devices As Translators In Mixed Voltage Environments 74AHC1G32GV-Q100,1 A Single 2-input OR Gate Inputs Are Overvoltagetolerant. This Feature Allows The Use Of These Devices As Translators In Mixed Voltage Environments 74AHC1G32GV-Q100,1 A Single 2-input OR Gate Inputs Are Overvoltagetolerant. This Feature Allows The Use Of These Devices As Translators In Mixed Voltage Environments

Large Image :  74AHC1G32GV-Q100,1 A Single 2-input OR Gate Inputs Are Overvoltagetolerant. This Feature Allows The Use Of These Devices As Translators In Mixed Voltage Environments

Product Details:
Place of Origin: CN
Brand Name: Nexperia
Certification: ROHS
Model Number: 74AHC1G32GV-Q100,1
Document: 17419BA77916FAF3AC36C46D384...D3.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

74AHC1G32GV-Q100,1 A Single 2-input OR Gate Inputs Are Overvoltagetolerant. This Feature Allows The Use Of These Devices As Translators In Mixed Voltage Environments

Description
Description: Single 2-input OR Gate VCC (V): 2.0 - 5.5
Logic Switching Levels: CMOS Output Drive Capability (mA): ± 8
Tpd (ns): 3.2 Fmax (MHz): 60
Highlight:

74AHC1G32GV-Q100 OR gate

,

2-input OR gate with overvoltage tolerance

,

OR gate for mixed voltage environments

74AHC1G32GV-Q100 Single 2-Input OR Gate
A single 2-input OR gate with overvoltage tolerant inputs, allowing use as translators in mixed voltage environments.
Key Features
  • Automotive product qualification in accordance with AEC-Q100 (Grade 1)
  • Specified from -40°C to +85°C and from -40°C to +125°C
  • Wide supply voltage range from 2.0V to 5.5V
  • Overvoltage tolerant inputs to 5.5V
  • High noise immunity
  • CMOS low power dissipation
  • Latch-up performance exceeds 100mA per JESD 78 Class II Level A
  • Symmetrical output impedance
  • Balanced propagation delays
  • Input levels: CMOS level for 74AHC1G32-Q100, TTL level for 74AHCT1G32-Q100
  • ESD protection: HBM class 2 exceeds 2000V, CDM class C3 exceeds 1000V
Product Variants
Type Number Package Temperature Range Description
74AHC1G32GW-Q100
74AHCT1G32GW-Q100		 TSSOP5 -40°C to +125°C Plastic thin shrink small outline package; 5 leads; body width 1.25mm SOT353-1
74AHC1G32GV-Q100
74AHCT1G32GV-Q100		 SC-74A -40°C to +125°C Plastic surface-mounted package; 5 leads SOT753

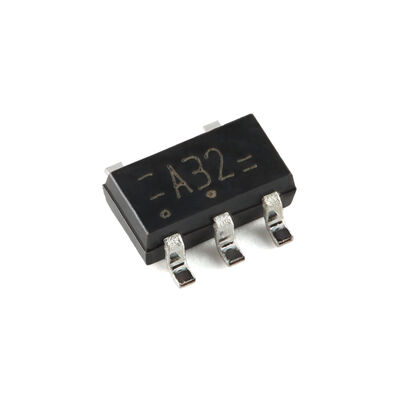

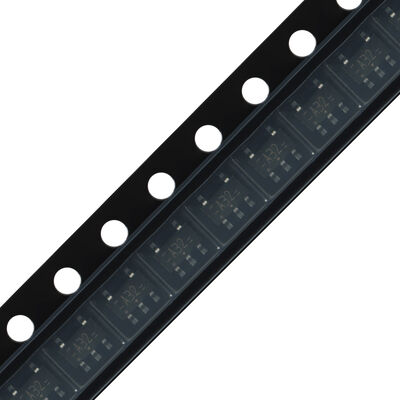

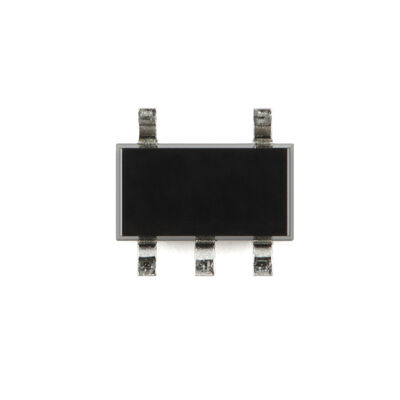

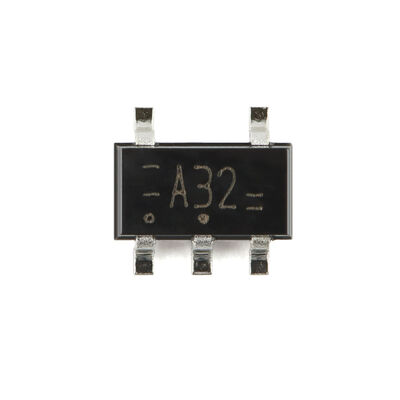

Product Images
74AHC1G32GV-Q100,1 A Single 2-input OR Gate Inputs Are Overvoltagetolerant. This Feature Allows The Use Of These Devices As Translators In Mixed Voltage Environments 0 74AHC1G32GV-Q100,1 A Single 2-input OR Gate Inputs Are Overvoltagetolerant. This Feature Allows The Use Of These Devices As Translators In Mixed Voltage Environments 1 74AHC1G32GV-Q100,1 A Single 2-input OR Gate Inputs Are Overvoltagetolerant. This Feature Allows The Use Of These Devices As Translators In Mixed Voltage Environments 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
