SN74LVC2G08DCTR 2-ch 2-input 1.65-V To 5.5-V 32 MA Drive Strength AND Gate

SN74LVC2G08DCTR 2-ch 2-input 1.65-V To 5.5-V 32 MA Drive Strength AND Gate
SN74LVC2G08DCTR 2-ch 2-input 1.65-V To 5.5-V 32 MA Drive Strength AND Gate SN74LVC2G08DCTR 2-ch 2-input 1.65-V To 5.5-V 32 MA Drive Strength AND Gate SN74LVC2G08DCTR 2-ch 2-input 1.65-V To 5.5-V 32 MA Drive Strength AND Gate SN74LVC2G08DCTR 2-ch 2-input 1.65-V To 5.5-V 32 MA Drive Strength AND Gate

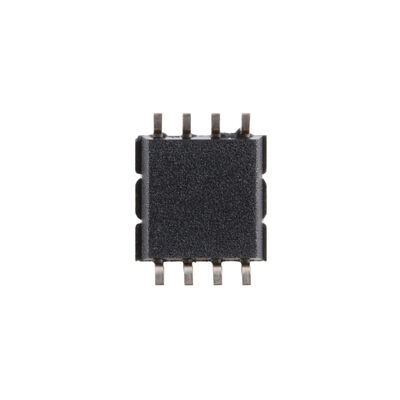

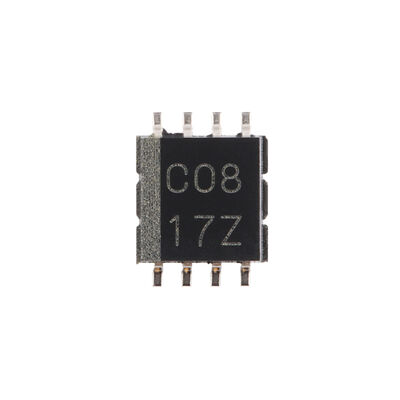

Large Image :  SN74LVC2G08DCTR 2-ch 2-input 1.65-V To 5.5-V 32 MA Drive Strength AND Gate

Product Details:
Place of Origin: CN
Brand Name: TI
Certification: ROHS
Model Number: SN74LVC2G08DCTR
Document: sn74lvc2g08.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

SN74LVC2G08DCTR 2-ch 2-input 1.65-V To 5.5-V 32 MA Drive Strength AND Gate

Description
Operating Temperature Range (°C): -40 To 125 Rating: Catalog
RoHS: Yes MSL Rating / Peak Reflow: Level-1-260C-UNLIM
IOL (max) (mA): - IOH (max) (mA): -
Highlight:

SN74LVC2G08DCTR AND Gate IC

,

2-input 5.5V logic gate

,

32 mA drive strength IC

SN74LVC2G08DCTR 2-Channel AND Gate
Dual 2-input positive-AND gate designed for 1.65-V to 5.5-V VCC operation with 32 mA drive strength
Key Features
  • Supports 5-V VCC operation
  • Inputs accept voltages up to 5.5 V
  • Maximum propagation delay of 4.7 ns at 3.3 V
  • Low power consumption: 10-μA maximum ICC
  • ±24-mA output drive at 3.3 V
  • Ioff supports live insertion, partial-power-down mode, and back-drive protection
  • Can be used as a down translator for voltage level shifting
Product Description
This dual 2-input positive-AND gate performs Boolean functions in positive logic and is designed for 1.65-V to 5.5-V VCC operation. The device features NanoFree package technology, using the die as the package for advanced IC packaging. It is fully specified for partial-power-down applications using Ioff circuitry, which disables outputs to prevent damaging current backflow when powered down.
Device Information
Part Number Package Body Size (Nominal)
SN74LVC2G08DCT SM8 (8) 2.95 mm × 2.80 mm
SN74LVC2G08DCU VSSOP (8) 2.30 mm × 2.00 mm
SN74LVC2G08YZP DSBGA (8) 1.91 mm × 0.91 mm
SN74LVC2G08DCTR 2-ch 2-input 1.65-V To 5.5-V 32 MA Drive Strength AND Gate 0 SN74LVC2G08DCTR 2-ch 2-input 1.65-V To 5.5-V 32 MA Drive Strength AND Gate 1 SN74LVC2G08DCTR 2-ch 2-input 1.65-V To 5.5-V 32 MA Drive Strength AND Gate 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
