STM32F100C8T6B Low & Medium-density Value Line Advanced ARM-based 32-bit MCUwith 16 To 128 KB Flash 12 Timers ADC DAC & 8 Comm Interfaces

STM32F100C8T6B Low & Medium-density Value Line Advanced ARM-based 32-bit MCUwith 16 To 128 KB Flash 12 Timers ADC DAC & 8 Comm Interfaces
STM32F100C8T6B Low & Medium-density Value Line Advanced ARM-based 32-bit MCUwith 16 To 128 KB Flash 12 Timers ADC DAC & 8 Comm Interfaces STM32F100C8T6B Low & Medium-density Value Line Advanced ARM-based 32-bit MCUwith 16 To 128 KB Flash 12 Timers ADC DAC & 8 Comm Interfaces STM32F100C8T6B Low & Medium-density Value Line Advanced ARM-based 32-bit MCUwith 16 To 128 KB Flash 12 Timers ADC DAC & 8 Comm Interfaces

Large Image :  STM32F100C8T6B Low & Medium-density Value Line Advanced ARM-based 32-bit MCUwith 16 To 128 KB Flash 12 Timers ADC DAC & 8 Comm Interfaces

Product Details:
Place of Origin: CN
Brand Name: ST
Certification: rohs
Model Number: STM32F100C8T6B
Document: 1457707173213.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

STM32F100C8T6B Low & Medium-density Value Line Advanced ARM-based 32-bit MCUwith 16 To 128 KB Flash 12 Timers ADC DAC & 8 Comm Interfaces

Description
Product Category:: MCU Maximum Clock Frequency:: 24MHz
Data Bus Width:: 32 Bit Program Memory Size:: 64KB
Program Memory Type:: FLASH Data RAM Size:: 8KB
Number Of I/Os:: 37
Highlight:

STM32F100C8T6B ARM-based 32-bit MCU

,

STM32F100C8T6B microcontroller with 128KB Flash

,

STM32F100C8T6B MCU with ADC DAC

STM32F100C8T6B Low & Medium-density Value Line Advanced ARM-based 32-bit MCU
16 to 128 KB Flash, 12 Timers, ADC, DAC & 8 Communication Interfaces
Product Overview
The STM32F100C8T6B is a high-performance, low-power 32-bit microcontroller based on the ARM Cortex-M3 core, designed for cost-sensitive applications requiring advanced processing capabilities.
Key Features
  • Core: ARM 32-bit Cortex-M3 CPU
    • 24 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance
    • Single-cycle multiplication and hardware division
  • Memories:
    • 16 to 128 Kbytes of Flash memory
    • 4 to 8 Kbytes of SRAM
  • Clock, Reset and Supply Management:
    • 2.0 to 3.6 V application supply and I/Os
    • POR, PDR and programmable voltage detector (PVD)
    • 4-to-24 MHz crystal oscillator
    • Internal 8 MHz factory-trimmed RC
    • Internal 40 kHz RC
    • PLL for CPU clock
    • 32 kHz oscillator for RTC with calibration
  • Low Power Modes: Sleep, Stop and Standby modes
  • Debug Mode: Serial wire debug (SWD) and JTAG interfaces
  • DMA: 7-channel DMA controller supporting timers, ADC, SPIs, I2Cs, USARTs and DACs
  • Analog Peripherals:
    • 1 × 12-bit, 1.2 µs A/D converter (up to 16 channels)
    • Conversion range: 0 to 3.6 V with temperature sensor
    • 2 × 12-bit D/A converters
  • I/O Ports: Up to 80 fast I/O ports (37/51/80 I/Os), all mappable on 16 external interrupt vectors and almost all 5 V-tolerant
Product Variants
Series Models
STM32F100x4 STM32F100x6 STM32F100C4, STM32F100R4, STM32F100C6, STM32F100R6
STM32F100x8 STM32F100xB STM32F100C8, STM32F100R8, STM32F100V8, STM32F100CB, STM32F100RB, STM32F100VB

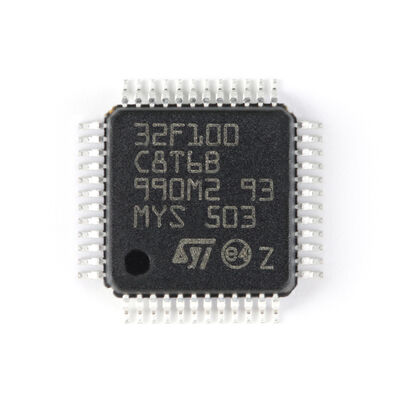

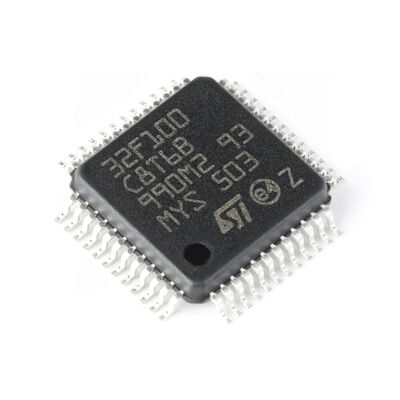

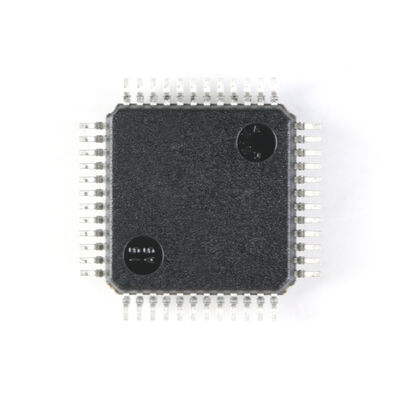

Product Images
STM32F100C8T6B Low & Medium-density Value Line Advanced ARM-based 32-bit MCUwith 16 To 128 KB Flash 12 Timers ADC DAC & 8 Comm Interfaces 0 STM32F100C8T6B Low & Medium-density Value Line Advanced ARM-based 32-bit MCUwith 16 To 128 KB Flash 12 Timers ADC DAC & 8 Comm Interfaces 1 STM32F100C8T6B Low & Medium-density Value Line Advanced ARM-based 32-bit MCUwith 16 To 128 KB Flash 12 Timers ADC DAC & 8 Comm Interfaces 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
