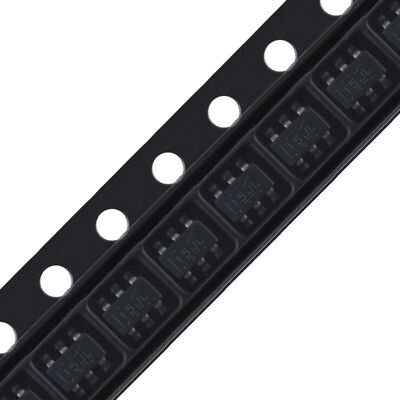

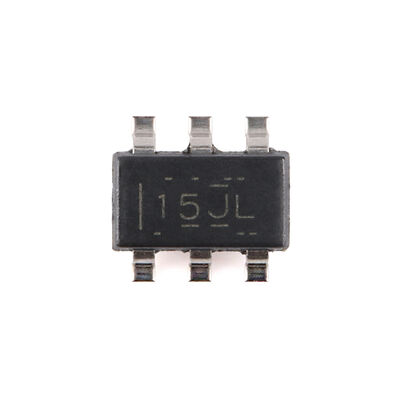

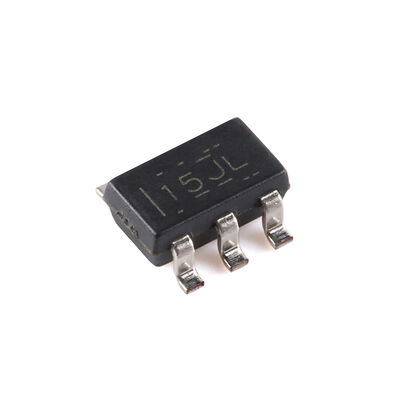

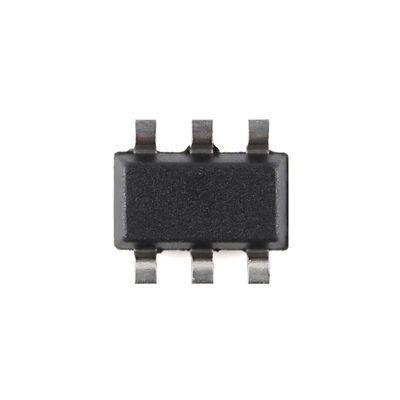

TPS2553DDBVR 0.075-1.7A Adj ILIMIT 2.5-6.5V 85mΩ USB Power Switch Active-high Reverse Blocking Multi

TPS2553DDBVR 0.075-1.7A Adj ILIMIT 2.5-6.5V 85mΩ USB Power Switch Active-high Reverse Blocking Multi
TPS2553DDBVR 0.075-1.7A Adj ILIMIT 2.5-6.5V 85mΩ USB Power Switch Active-high Reverse Blocking Multi TPS2553DDBVR 0.075-1.7A Adj ILIMIT 2.5-6.5V 85mΩ USB Power Switch Active-high Reverse Blocking Multi TPS2553DDBVR 0.075-1.7A Adj ILIMIT 2.5-6.5V 85mΩ USB Power Switch Active-high Reverse Blocking Multi TPS2553DDBVR 0.075-1.7A Adj ILIMIT 2.5-6.5V 85mΩ USB Power Switch Active-high Reverse Blocking Multi

Large Image :  TPS2553DDBVR 0.075-1.7A Adj ILIMIT 2.5-6.5V 85mΩ USB Power Switch Active-high Reverse Blocking Multi

Product Details:
Place of Origin: CN
Brand Name: TI
Certification: rohs
Model Number: TPS2553DDBVR
Document: tps2553d.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

TPS2553DDBVR 0.075-1.7A Adj ILIMIT 2.5-6.5V 85mΩ USB Power Switch Active-high Reverse Blocking Multi

Description
Product Category:: Power Switch ICs - Power Distribution Number Of Outputs:: 1
Operating Supply Voltage:: 2.7V~6.5V Minimum Operating Temperature:: - 40 °C
Maximum Operating Temperature:: + 125 °C Package | Pins: SOT-23-6
Highlight:

USB power switch active-high

,

TPS2553DDBVR reverse blocking switch

,

adjustable current limit power switch

TPS2553DDBVR USB Power Switch
0.075-1.7A Adjustable Current Limit, 2.5-6.5V Operating Range, 85mΩ High-Side MOSFET with Active-high Reverse Blocking
Key Features
  • Up to 1.5 A Maximum Load Current
  • ±6% Current-Limit Accuracy at 1.7 A (Typical)
  • Meets USB Current-Limiting Requirements
  • Backwards Compatible with TPS2550/51 Series
  • Adjustable Current Limit: 75 mA to 1700 mA (Typical)
  • Constant-Current Operation (TPS2552D and TPS2553D)
  • TPS2552D (Enable Low) and TPS2553D (Enable High)
  • Fast Overcurrent Response: 2 μs (Typical)
  • 85-mΩ High-Side MOSFET (DBV Package)
  • Reverse Input-Output Voltage Protection
  • Operating Range: 2.7 V to 6.5 V
  • Built-in Soft-Start Function
  • 15 kV ESD Protection per IEC 61000-4-2 (With External Capacitance)
  • UL Listed – File No. E169910 and NEMKO IEC60950-1-am1 ed2.0
  • Compatible with TI Switch Portfolio
Applications
  • USB Ports and Hubs
  • Digital TV Systems
  • Set-Top Boxes
  • VOIP Phones
Part Number Specifications
Part Number Package Body Size (Nominal)
TPS2552D SOT-23 (6) 2.90 mm * 1.60 mm
TPS2553D SOT-23 (6) 2.90 mm * 1.60 mm
