DAC8760IPWPR 16-Bit Single-Channel Programmable Current/Voltage Output DAC For 4-20mA Current Loop Applications

DAC8760IPWPR 16-Bit Single-Channel Programmable Current/Voltage Output DAC For 4-20mA Current Loop Applications
DAC8760IPWPR 16-Bit Single-Channel Programmable Current/Voltage Output DAC For 4-20mA Current Loop Applications DAC8760IPWPR 16-Bit Single-Channel Programmable Current/Voltage Output DAC For 4-20mA Current Loop Applications DAC8760IPWPR 16-Bit Single-Channel Programmable Current/Voltage Output DAC For 4-20mA Current Loop Applications DAC8760IPWPR 16-Bit Single-Channel Programmable Current/Voltage Output DAC For 4-20mA Current Loop Applications

Large Image :  DAC8760IPWPR 16-Bit Single-Channel Programmable Current/Voltage Output DAC For 4-20mA Current Loop Applications

Product Details:
Place of Origin: CN
Brand Name: TI
Certification: rohs
Model Number: DAC8760IPWPR
Document: dac8760.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

DAC8760IPWPR 16-Bit Single-Channel Programmable Current/Voltage Output DAC For 4-20mA Current Loop Applications

Description
Product Category:: Digital To Analog Converters - DAC Number Of Outputs:: 1
Operating Supply Voltage:: 2.7V~5.5V Minimum Operating Temperature:: - 40 °C
Maximum Operating Temperature:: + 125 °C Package | Pins: HTSSOP-24-EP
Highlight:

16-bit programmable current voltage DAC

,

4-20mA current loop DAC

,

single-channel output DAC with warranty

DAC8760IPWPR 16-Bit Single-Channel Programmable Current/Voltage Output DAC
16-bit single-channel programmable current/voltage output DAC designed for 4-20mA current loop applications in industrial automation and control systems.
Key Features
  • Current output: 4 mA to 20 mA; 0 mA to 20 mA; 0 mA to 24 mA
  • Voltage output: 0 V to 5 V; 0 V to 10 V; ±5 V; ±10 V; 0 V to 5.5 V; 0 V to 11 V; ±5.5 V; ±11 V (10% overrange)
  • ±0.1% FSR total unadjusted error (TUE) maximum
  • DNL: ±1 LSB maximum
  • Simultaneous voltage and current output
  • Internal 5-V reference (10 ppm/°C, maximum)
  • Internal 4.6-V power-supply output
  • Reliability features: CRC check and watchdog timer, thermal alarm, open alarm, short current limit
  • Wide temperature range: -40°C to 125°C
  • Packages: 6-mm × 6-mm 40-pin VQFN and 24-pin HTSSOP
Applications
  • Analog output module
  • CPU (PLC controller)
  • HVAC valve and actuator control
  • Flow transmitter
  • Other sensor transmitter
  • Actuator
Part Number Details
Part Number Package Body Size (Nom)
DACx760 HTSSOP (24) 7.80 mm × 4.40 mm
DACx760 VQFN (40) 6.00 mm × 6.00 mm

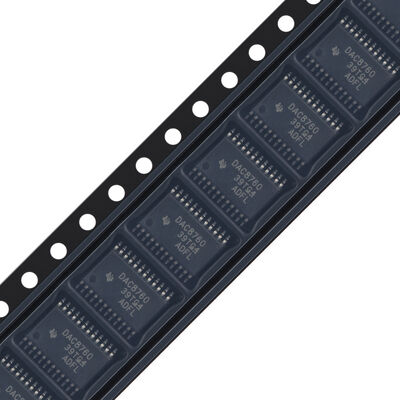

Product Images
DAC8760IPWPR 16-Bit Single-Channel Programmable Current/Voltage Output DAC For 4-20mA Current Loop Applications 0 DAC8760IPWPR 16-Bit Single-Channel Programmable Current/Voltage Output DAC For 4-20mA Current Loop Applications 1 DAC8760IPWPR 16-Bit Single-Channel Programmable Current/Voltage Output DAC For 4-20mA Current Loop Applications 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
