MCP3204-CI/SL 2.7V 4-Channel/8-Channel 12-Bit A/D Converterswith SPI Serial Interface

MCP3204-CI/SL 2.7V 4-Channel/8-Channel 12-Bit A/D Converterswith SPI Serial Interface
MCP3204-CI/SL 2.7V 4-Channel/8-Channel 12-Bit A/D Converterswith SPI Serial Interface MCP3204-CI/SL 2.7V 4-Channel/8-Channel 12-Bit A/D Converterswith SPI Serial Interface MCP3204-CI/SL 2.7V 4-Channel/8-Channel 12-Bit A/D Converterswith SPI Serial Interface MCP3204-CI/SL 2.7V 4-Channel/8-Channel 12-Bit A/D Converterswith SPI Serial Interface

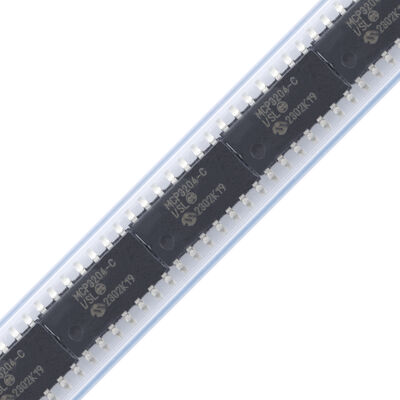

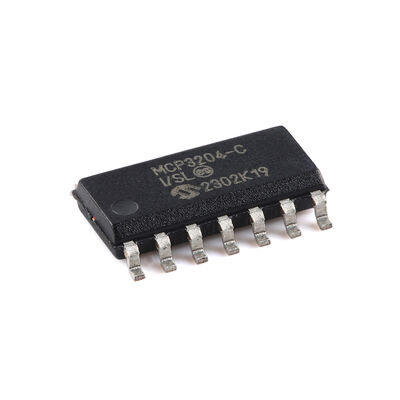

Large Image :  MCP3204-CI/SL 2.7V 4-Channel/8-Channel 12-Bit A/D Converterswith SPI Serial Interface

Product Details:
Place of Origin: CN
Brand Name: MICROCHIP
Certification: rohs
Model Number: MCP3204-CI/SL
Document: 1457707162058.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

MCP3204-CI/SL 2.7V 4-Channel/8-Channel 12-Bit A/D Converterswith SPI Serial Interface

Description
Product Category:: Digital To Analog Converters - ADC Number Of Outputs:: 4
Operating Supply Voltage:: 2.7V~5.5V Minimum Operating Temperature:: - 40 °C
Maximum Operating Temperature:: + 85 °C Package | Pins: SOIC-14
Highlight:

MCP3204 12-bit ADC converter

,

SPI interface A/D converter

,

4-channel 8-channel ADC chip

MCP3204-CI/SL 2.7V 4-Channel/8-Channel 12-Bit A/D Converters with SPI Serial Interface
The MCP3204-CI/SL is a high-performance 12-bit analog-to-digital converter featuring 4 or 8 input channels with SPI serial interface, designed for precision data acquisition applications.
Key Features
  • 12-bit resolution for precise analog-to-digital conversion
  • ±1 LSB maximum differential nonlinearity (DNL)
  • ±1 LSB maximum integral nonlinearity (MCP3204/3208-B)
  • ±2 LSB maximum integral nonlinearity (MCP3204/3208-C)
  • 4 (MCP3204) or 8 (MCP3208) programmable input channels
  • Analog inputs configurable as single-ended or pseudo-differential pairs
  • Integrated on-chip sample and hold circuitry
  • SPI serial interface supporting modes 0,0 and 1,1
  • Single supply operation: 2.7V to 5.5V
  • Maximum sampling rate: 100 ksps at 5V, 50 ksps at 2.7V
  • Low power CMOS technology:
    • 500 nA typical standby current, 2 µA maximum
    • 400 µA maximum active current at 5V
  • Industrial temperature range: -40°C to +85°C
  • Available in PDIP, SOIC and TSSOP packages
Applications
  • Sensor Interface Systems
  • Process Control Equipment
  • Data Acquisition Systems
  • Battery Operated Systems
Temperature Specifications
Range Type Value
Specified Temperature Range TA -40°C to +125°C
Operating Temperature Range TA -40°C to +125°C
Storage Temperature Range TA -65°C to +150°C
MCP3204-CI/SL 2.7V 4-Channel/8-Channel 12-Bit A/D Converterswith SPI Serial Interface 0 MCP3204-CI/SL 2.7V 4-Channel/8-Channel 12-Bit A/D Converterswith SPI Serial Interface 1 MCP3204-CI/SL 2.7V 4-Channel/8-Channel 12-Bit A/D Converterswith SPI Serial Interface 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
