MCP4716A0T-E/CH 8-/10-/12-Bit Voltage Output Digital-to-Analog Converterwith EEPROM And I2C™ Interface

MCP4716A0T-E/CH 8-/10-/12-Bit Voltage Output Digital-to-Analog Converterwith EEPROM And I2C™ Interface
MCP4716A0T-E/CH 8-/10-/12-Bit Voltage Output Digital-to-Analog Converterwith EEPROM And I2C™ Interface MCP4716A0T-E/CH 8-/10-/12-Bit Voltage Output Digital-to-Analog Converterwith EEPROM And I2C™ Interface MCP4716A0T-E/CH 8-/10-/12-Bit Voltage Output Digital-to-Analog Converterwith EEPROM And I2C™ Interface

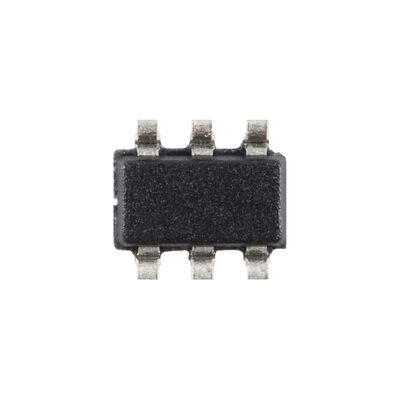

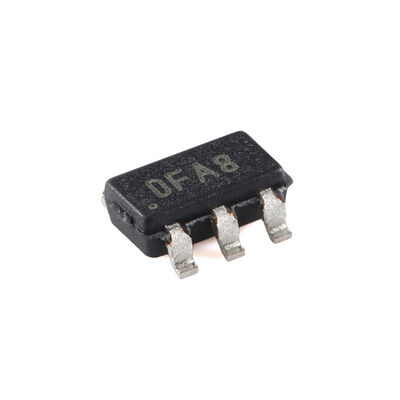

Large Image :  MCP4716A0T-E/CH 8-/10-/12-Bit Voltage Output Digital-to-Analog Converterwith EEPROM And I2C™ Interface

Product Details:
Place of Origin: CN
Brand Name: MICROCHIP
Certification: rohs
Model Number: MCP4716A0T-E/CH
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with

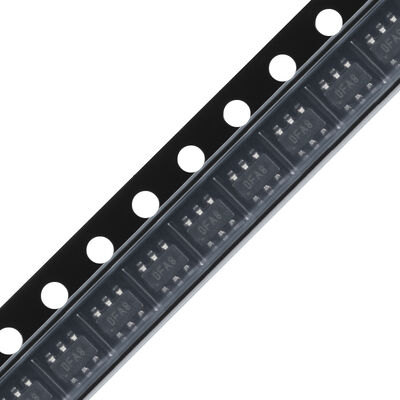

Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

MCP4716A0T-E/CH 8-/10-/12-Bit Voltage Output Digital-to-Analog Converterwith EEPROM And I2C™ Interface

Description
Product Category:: Digital To Analog Converters - ADC Number Of Outputs:: 1
Operating Supply Voltage:: 2.7V~5.5V Minimum Operating Temperature:: - 40 °C
Maximum Operating Temperature:: + 125 °C Package | Pins: SOT-23-6
Highlight:

12-bit voltage output DAC

,

I2C interface digital-to-analog converter

,

DAC with EEPROM memory

MCP4716A0T-E/CH 8-/10-/12-Bit Voltage Output Digital-to-Analog Converter with EEPROM and I2C™ Interface
High-performance digital-to-analog converter featuring multiple resolution options, EEPROM memory, and I2C interface for precision voltage control applications.
Key Features
  • Output Voltage Resolutions: 12-bit (MCP4726), 10-bit (MCP4716), 8-bit (MCP4706)
  • Rail-to-Rail Output
  • Fast Settling Time: 6 µs (typical)
  • DAC Voltage Reference Options: VDD or VREF Pin
  • Output Gain Options: Unity (1x) or 2x (when VREF pin used)
  • Nonvolatile Memory (EEPROM) for auto recall of saved settings
  • Power-Down modes with configurable VOUT pull-down resistors
  • Low-Power Consumption: 210 µA (normal), 60 nA (power-down)
  • Single-Supply Operation: 2.7V to 5.5V
  • I2C™ Interface with eight address options and multiple speed modes
  • Compact 6-lead SOT-23 and DFN (2x2) packages
  • Extended Temperature Range: -40°C to +125°C
Applications
  • Set Point or Offset Trimming
  • Sensor Calibration
  • Low-Power Portable Instrumentation
  • PC Peripherals
  • Data Acquisition Systems
  • Motor Control
Pin Configuration
Pin No. Symbol Type Description
1 VOUT A Analog Buffered analog voltage output pin
2 VSS P Ground reference pin for all circuitries on the device
3 VDD P Supply Voltage Pin
4 SDA I/O ST I2C™ Serial Data Pin
5 SCL I ST I2C Serial Clock Pin
6 VREF A Voltage Reference Input Pin
— EP — Exposed Pad
Note 1: EP refers to Exposed Pad
MCP4716A0T-E/CH 8-/10-/12-Bit Voltage Output Digital-to-Analog Converterwith EEPROM And I2C™ Interface 0 MCP4716A0T-E/CH 8-/10-/12-Bit Voltage Output Digital-to-Analog Converterwith EEPROM And I2C™ Interface 1 MCP4716A0T-E/CH 8-/10-/12-Bit Voltage Output Digital-to-Analog Converterwith EEPROM And I2C™ Interface 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
