RX8025T-UC Built-in 32.768 KHz-DTCXO High StabilityI2C-Bus INTERFACE REAL TIME CLOCK MODULE

RX8025T-UC Built-in 32.768 KHz-DTCXO High StabilityI2C-Bus INTERFACE REAL TIME CLOCK MODULE
RX8025T-UC Built-in 32.768 KHz-DTCXO High StabilityI2C-Bus INTERFACE REAL TIME CLOCK MODULE RX8025T-UC Built-in 32.768 KHz-DTCXO High StabilityI2C-Bus INTERFACE REAL TIME CLOCK MODULE RX8025T-UC Built-in 32.768 KHz-DTCXO High StabilityI2C-Bus INTERFACE REAL TIME CLOCK MODULE

Large Image :  RX8025T-UC Built-in 32.768 KHz-DTCXO High StabilityI2C-Bus INTERFACE REAL TIME CLOCK MODULE

Product Details:
Place of Origin: CN
Brand Name: EPSON
Certification: ROHS
Model Number: RX8025T-UC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8day
Payment Terms: T/T,Western Union
Supply Ability: 10000
Contact Now Chat Now

RX8025T-UC Built-in 32.768 KHz-DTCXO High StabilityI2C-Bus INTERFACE REAL TIME CLOCK MODULE

Description
Product Category:: Real Time Clock RTC Bus Interface:: I2C
Operating Temperature Range (°C): -40℃~+85℃ Supply Voltage (min) (V): 1.8 V
Supply Voltage (max) (V): 5.5 V Operating Current: -

RX8025T-UC Built-in 32.768 KHz-DTCXO High Stability I2C-Bus INTERFACE REAL TIME CLOCK MODULE
Product Overview

RX8025T-UC Built-in 32.768 KHz-DTCXO High Stability I2C-Bus Interface Real Time Clock Module featuring advanced temperature compensation and wide voltage range operation.

Key Features
  • Built-in frequency adjusted 32.768 kHz crystal unit and DTCXO
  • Interface Type: I2C-Bus Interface (400 kHz)
  • Interface voltage range: 1.8 V to 5.5 V
  • Temperature compensated voltage range: 2.2 V to 5.5 V
  • Wide Timekeeper voltage range: 1.6 V to 5.5 V
  • 32.768 kHz frequency output function: C-MOS output with Control Pin
  • Comprehensive functions include full calendar, alarm, and timer
Signal Pinout
Signal Name Pin No. I / O Function
T1(CE) 1 input * Use by the manufacturer for testing. (Do not connect externally.)
SCL 2 input Serial clock input pin
FOUT 3 Output The pin outputs the reference clock signal. (CMOS output)
TEST 5 input * Use by the manufacturer for testing. (Do not connect externally.)
VDD 6 - Connected to a positive power supply
FOE 7 input The input pin for the FOUT output control
/ INT 10 Output Interrupt output (N-ch open drain)
GND 11 - Connected to a ground
T2(VPP) 12 - * Use by the manufacturer for testing. (Do not connect externally.)
SDA 13 I / O Data input and output pin
Product Images

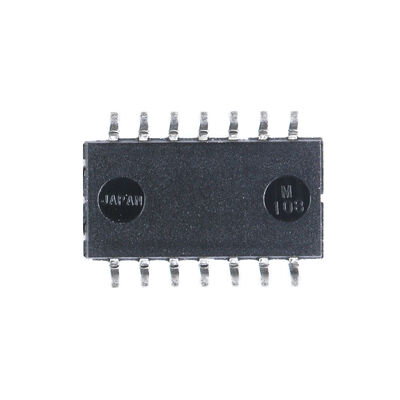

RX8025T-UC Built-in 32.768 KHz-DTCXO High StabilityI2C-Bus INTERFACE REAL TIME CLOCK MODULE 0

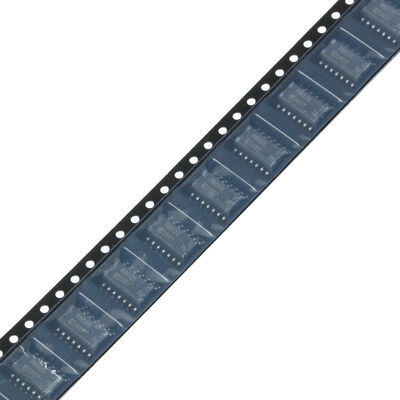

RX8025T-UC Built-in 32.768 KHz-DTCXO High StabilityI2C-Bus INTERFACE REAL TIME CLOCK MODULE 1

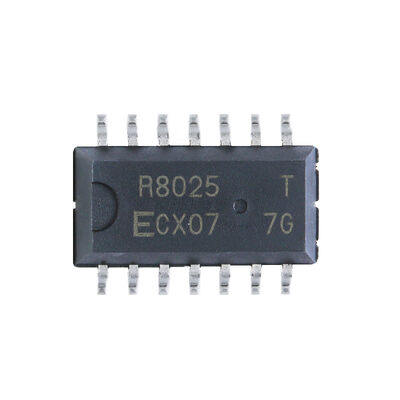

RX8025T-UC Built-in 32.768 KHz-DTCXO High StabilityI2C-Bus INTERFACE REAL TIME CLOCK MODULE 2
Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
