TLC59116IPWR 16-Channel FM+ I2C-Bus Constant-Current LED Sink Driver

Large Image : TLC59116IPWR 16-Channel FM+ I2C-Bus Constant-Current LED Sink Driver

Product Details:

Place of Origin:	CN
Brand Name:	TI
Certification:	ROHS
Model Number:	TLC59116IPWR
Document:	tlc59116.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	consult with
Packaging Details:	T/R
Delivery Time:	5-8day
Payment Terms:	T/T,Western Union
Supply Ability:	10000

Contact Now Chat Now

TLC59116IPWR 16-Channel FM+ I2C-Bus Constant-Current LED Sink Driver

Description

Product Category::	LED Display Drivers	Package / Case::	TSSOP-28
Output Current::	3V	Input Voltage - Max::	5.5 V
Minimum Operating Temperature::	-40℃	Maximum Operating Temperature::	+85℃
Low Level Output Current::	-

TLC59116IPWR 16-Channel FM+ I2C-Bus Constant-Current LED Sink Driver

Product Overview

The TLC59116IPWR is a 16-channel constant-current LED sink driver with I2C-bus interface, designed for LED display and lighting applications.

Key Features

16 LED drivers with programmable outputs (Off, On, Programmable LED Brightness, or Programmable Group Dimming and Blinking)
Supports hot insertion capability
Low standby current consumption
3.3-V or 5-V supply voltage operation
5.5-V tolerant inputs
16 constant-current output channels
Available in 28-pin TSSOP and 32-pin QFN packages
256-step (8-bit) linear programmable brightness per LED output
97-kHz PWM signal for brightness control
Operating temperature range: –40°C to 85°C

Device Information

Part Number	Package	Body Size (Nominal)
TLC59116	TSSOP (28)	9.70 mm x 4.40 mm
TLC59116	VQFN (32)	5.00 mm x 5.00 mm

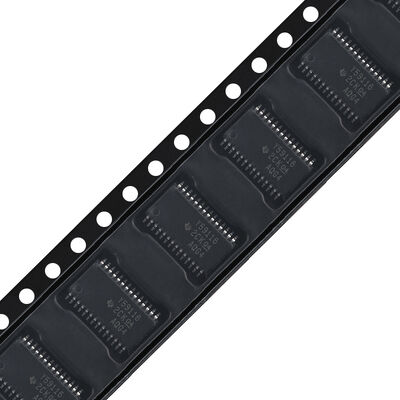

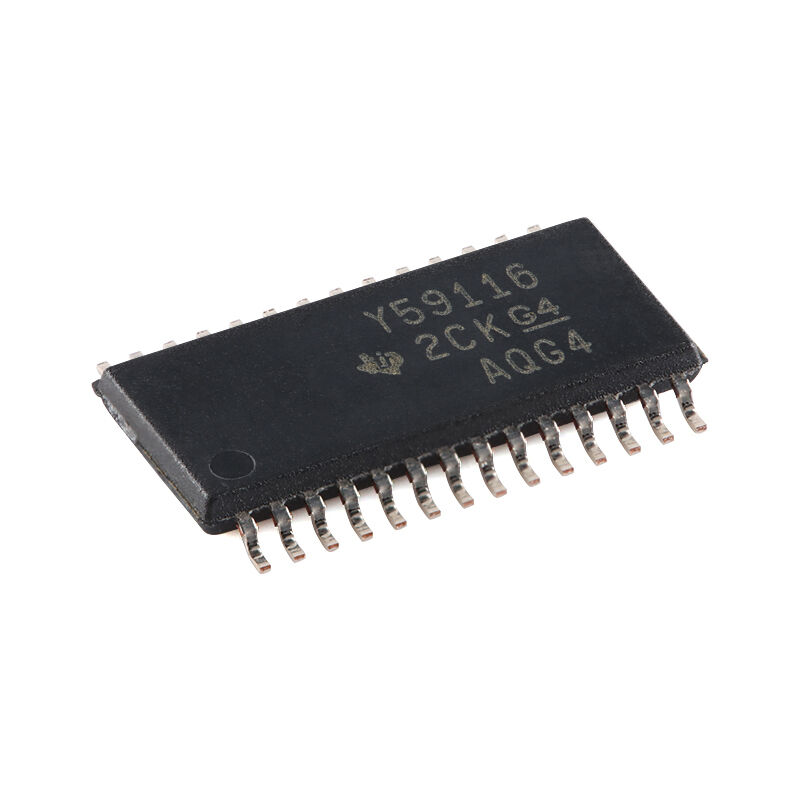

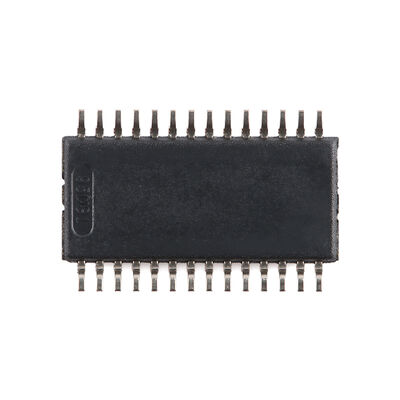

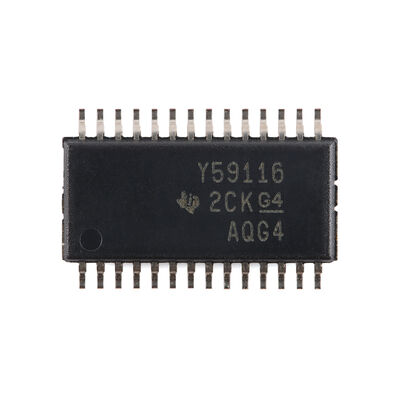

Product Images

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
