DRV8835DSSR Dual Low-Voltage H-Bridge IC

DRV8835DSSR Dual Low-Voltage H-Bridge IC
DRV8835DSSR Dual Low-Voltage H-Bridge IC
DRV8835DSSR Dual Low-Voltage H-Bridge IC DRV8835DSSR Dual Low-Voltage H-Bridge IC DRV8835DSSR Dual Low-Voltage H-Bridge IC DRV8835DSSR Dual Low-Voltage H-Bridge IC DRV8835DSSR Dual Low-Voltage H-Bridge IC

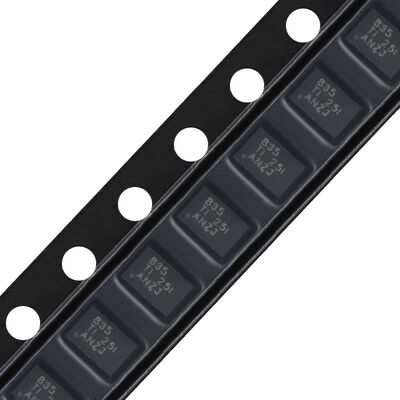

Large Image :  DRV8835DSSR Dual Low-Voltage H-Bridge IC

Product Details:
Place of Origin: CN
Brand Name: TI
Certification: ROHS
Model Number: DRV8835DSSR
Document: drv8835.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8day
Payment Terms: T/T,Western Union
Supply Ability: 10000
Contact Now Chat Now

DRV8835DSSR Dual Low-Voltage H-Bridge IC

Description
Product Category:: Motor / Motion / Ignition Controllers & Drivers Package / Case:: WSON-12-EP(2x3)
Output Current:: 1.5 A Number Of Outputs:: 2 Output
Minimum Operating Temperature:: -40℃ Maximum Operating Temperature:: +85℃
Supply Voltage - Max:: 11 V Supply Voltage - Min:: 2 V
Highlight:

DRV8835DSSR H-Bridge IC

,

dual low-voltage motor driver

,

H-Bridge IC with warranty

DRV8835DSSR Dual Low-Voltage H-Bridge IC

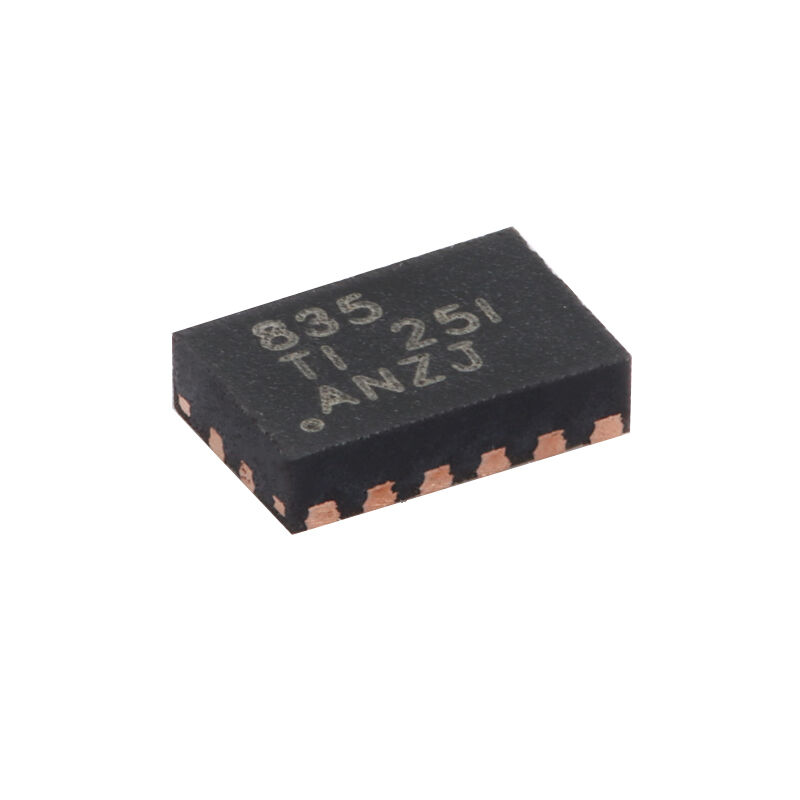

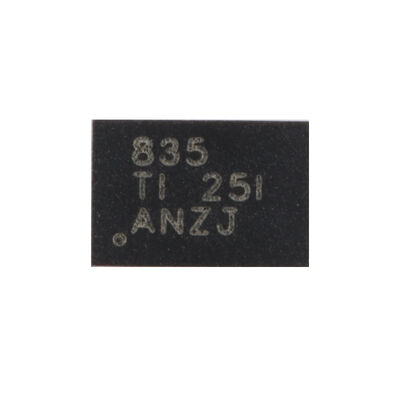

The DRV8835DSSR is a dual low-voltage H-Bridge motor driver IC designed for battery-powered motion control applications.
Key Features
  • Dual-H-Bridge motor driver capable of driving two DC motors or one stepper motor
  • Low MOSFET ON-resistance: HS + LS 305 mΩ
  • 1.5-A maximum drive current per H-bridge
  • Configurable parallel bridges for 3-A drive current
  • Separate motor and logic supply pins
  • Motor operating voltage: 0-V to 11-V
  • Logic supply voltage: 2-V to 7-V
  • Flexible PWM or PHASE/ENABLE interface
  • Low-power sleep mode with 95-nA maximum supply current

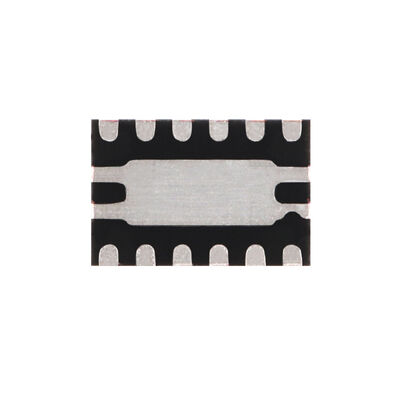

  • Tiny 2.00-mm × 3.00-mm WSON package
Product Description
The DRV8835 provides an integrated motor driver solution for cameras, consumer products, toys, and other low-voltage or battery-powered motion control applications. The device features two H-bridge drivers that can drive two DC motors or one stepper motor, as well as other devices like solenoids.
Each output driver block consists of N-channel power MOSFETs configured as an H-bridge to drive motor windings. An internal charge pump generates gate drive voltages. The DRV8835 supplies up to 1.5-A of output current per H-bridge and operates on motor power supply voltages from 0 V to 11 V, with device power supply voltage of 2 V to 7 V.
PHASE/ENABLE and IN/IN interfaces are compatible with industry-standard devices. Internal shutdown functions provide overcurrent protection, short circuit protection, undervoltage lockout, and overtemperature protection. The DRV8835 is packaged in a tiny 12-pin WSON package (Eco-friendly: RoHS and no Sb/Br).
Applications
  • Battery-Powered Devices:
    • Cameras
    • DSLR Lenses
    • Consumer Products
    • Toys
    • Robotics
    • Medical Devices
Device Information
Part Number Package Body Size (Nom)
DRV8835 WSON (12) 2.00 mm × 3.00 mm
