DRV8323HRTAR Gate Drivers 65-V Max 3-phase Sma Rt Gate Driver

DRV8323HRTAR Gate Drivers 65-V Max 3-phase Sma Rt Gate Driver
DRV8323HRTAR Gate Drivers 65-V Max 3-phase Sma Rt Gate Driver DRV8323HRTAR Gate Drivers 65-V Max 3-phase Sma Rt Gate Driver DRV8323HRTAR Gate Drivers 65-V Max 3-phase Sma Rt Gate Driver DRV8323HRTAR Gate Drivers 65-V Max 3-phase Sma Rt Gate Driver

Large Image :  DRV8323HRTAR Gate Drivers 65-V Max 3-phase Sma Rt Gate Driver

Product Details:
Place of Origin: CN
Brand Name: TI
Certification: ROHS
Model Number: DRV8323HRTAR
Document: drv8323r.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with

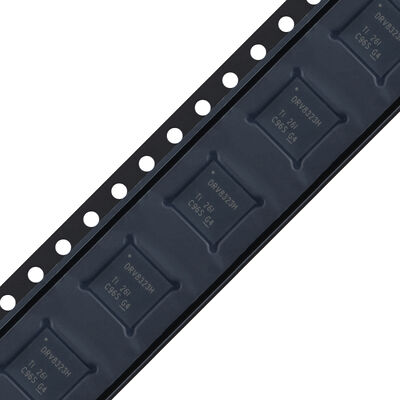

Packaging Details: T/R
Delivery Time: 5-8day
Payment Terms: T/T,Western Union
Supply Ability: 10000
Contact Now Chat Now

DRV8323HRTAR Gate Drivers 65-V Max 3-phase Sma Rt Gate Driver

Description
Product Category:: Gate Drivers Package / Case:: WQFN-40-EP(6x6)
Output Current:: 1 A Number Of Outputs:: 6 Output
Minimum Operating Temperature:: -40℃ Maximum Operating Temperature:: +125℃
Supply Voltage - Max:: 60 V Supply Voltage - Min:: 6 V
Highlight:

DRV8323HRTAR 3-phase gate driver

,

65-V max gate driver

,

Sma Rt gate driver IC

DRV8323HRTAR Gate Drivers 65-V Max 3-phase Smart Gate Driver
The DRV832x family of devices is an integrated gate driver for three-phase applications. The devices provide three half-bridge gate drivers, each capable of driving high-side and low-side N-channel power MOSFETs. The DRV832x generates the correct gate drive voltages using an integrated charge pump for the high-side MOSFETs and a linear regulator for the low-side MOSFETs.
Key Features
  • Triple Half-Bridge Gate Driver – Drives 3 High-Side and 3 Low-Side N-Channel MOSFETs (NMOS)
  • Smart Gate Drive Architecture with adjustable slew rate control
  • 10-mA to 1-A Peak Source Current and 20-mA to 2-A Peak Sink Current
  • Integrated Gate Driver Power Supplies supporting 100% PWM Duty Cycle
  • 6 to 60-V Operating Voltage Range
  • Optional Integrated Buck Regulator (LMR16006X SIMPLE SWITCHER®)
  • Optional Integrated Triple Current Sense Amplifiers (CSAs)
  • SPI and Hardware Interface Available
  • Multiple PWM Modes: 6x, 3x, 1x, and Independent
  • Supports 1.8-V, 3.3-V, and 5-V Logic Inputs
  • Low-Power Sleep Mode (12 µA)
  • Comprehensive Protection Features including UVLO, CPUV, OCP, GDF, OTW/OTSD
Applications
  • Brushless-DC (BLDC) Motor Modules and PMSM
  • Fans, Pumps, and Servo Drives
  • E-Bikes, E-Scooters, and E-Mobility
  • Cordless Garden and Power Tools, Lawnmowers
  • Cordless Vacuum Cleaners
  • Drones, Robotics, and RC Toys
  • Industrial and Logistics Robots
Device Information
Part Number Package Body Size (Nom)
DRV8320 WQFN (32) 5.00 mm × 5.00 mm
DRV8320R VQFN (40) 6.00 mm × 6.00 mm
DRV8323 WQFN (40) 6.00 mm × 6.00 mm
DRV8323R VQFN (48) 7.00 mm × 7.00 mm
Product Images

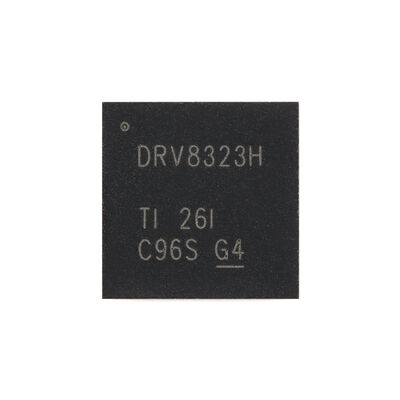

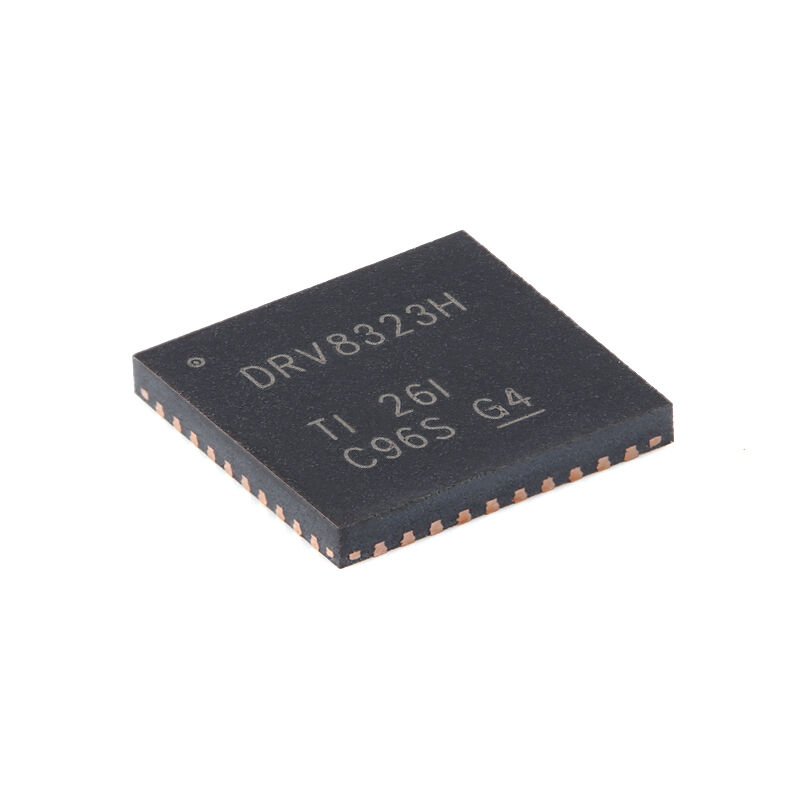

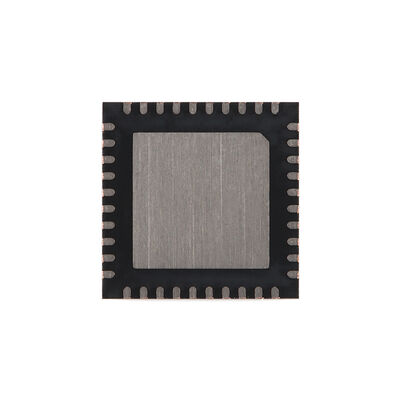

DRV8323HRTAR Gate Drivers 65-V Max 3-phase Sma Rt Gate Driver 0
