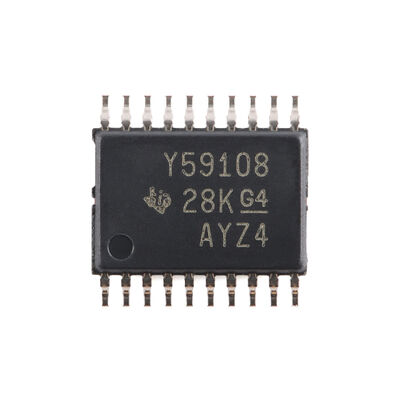

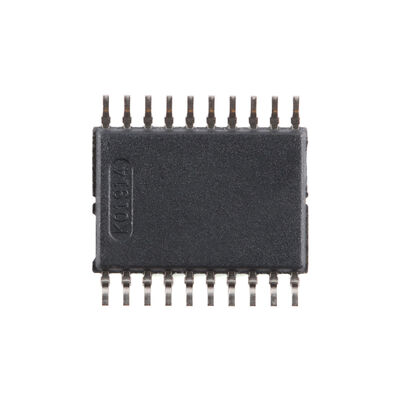

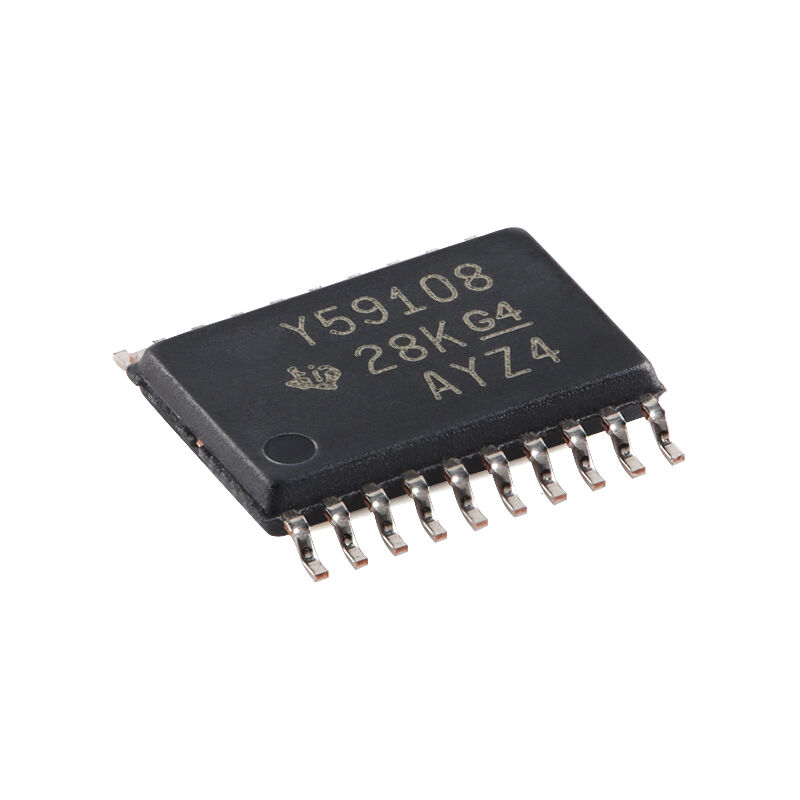

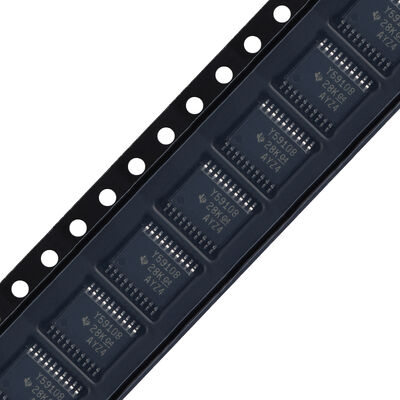

TLC59108IPWR 8-Bit Fm+ I2C-Bus Constant-Current LED Sink Driver

Large Image : TLC59108IPWR 8-Bit Fm+ I2C-Bus Constant-Current LED Sink Driver

Product Details:

Place of Origin:	CN
Brand Name:	TI
Certification:	ROHS
Model Number:	TLC59108IPWR
Document:	tlc59108.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	consult with
Packaging Details:	T/R
Delivery Time:	5-8day
Payment Terms:	T/T,Western Union
Supply Ability:	10000

Contact Now Chat Now

TLC59108IPWR 8-Bit Fm+ I2C-Bus Constant-Current LED Sink Driver

Description

Product Category::	LED Display Drivers	Package / Case::	TSSOP-20
Output Current::	120mA	Operating Voltage:	3V~5.5V
Minimum Operating Temperature::	-40℃	Maximum Operating Temperature::	+85℃
Maximum DC Collector Current::	-
Highlight:	TLC59108IPWR 8-bit LED driver , I2C-Bus constant-current LED sink , Fm+ LED driver with warranty

TLC59108IPWR 8-Bit Fm+ I2C-Bus Constant-Current LED Sink Driver

Product Overview

The TLC59108 is an I2C bus controlled 8-bit LED driver optimized for red/green/blue/amber (RGBA) color mixing and backlight applications.

Key Features

Eight LED drivers with programmable outputs (Off, On, Brightness, Group Dimming/Blinking)
25-MHz internal oscillator requiring no external components
1-MHz Fast Mode Plus compatible I2C bus interface
Eight constant-current output channels
Internal power-on reset and active-low reset
256-step (8-bit) linear programmable brightness per LED output
Noise filter on SCL/SDA inputs with no glitch on power up
256-step group brightness control and group blinking
Supports hot insertion
Four hardware address pins allowing 14 devices on same I2C bus
3.3-V or 5-V supply voltage operation
Software-programmable I2C bus addresses and software reset feature
Open-load/overtemperature detection for individual LED error detection
Constant output current adjustable through external resistor (10mA to 120mA)
Maximum output voltage: 17 V

Applications

Gaming systems
Small signage displays
Industrial equipment

Device Information

Part Number	Package	Body Size (Nom)
TLC59108	TSSOP (20)	6.50 mm × 4.40 mm
TLC59108	VQFN (20)	4.50 mm × 3.50 mm
