Cylindrical Lithium Manganese Dioxide Batteries (CR) Disposable Industrial Lithium Battery CR17335A
Product Specifications
| Attribute |
Value |
| Model |
CR17335A |
| Nominal voltage (V) |
3 |
| Nominal capacity (mAh)*1 |
1650 |
| Nominal discharge current (mA) |
5 |
| Operating temperature range (deg. C)*2 |
-40 to +85 |
| Diameter (mm) |
17 |
| Height (mm) |
33.5 |
| Weight (g)*3 |
17 |
*1 Volumetric energy density of 15% or more compared to typical cylindrical CR batteries
*2 Designed lifetime at 20 deg. C when not yet used
*3 Actual values may vary slightly
Product Description
Maxell's cylindrical lithium manganese dioxide battery provides stable discharge characteristics through its original sealing structure, unique configuration for enhanced electrical conductivity, and specialized negative electrode material. With long-term reliability exceeding 10 years, this battery is ideal for industrial applications including IoT devices and smart meters (gas, water). Custom battery packs are available to meet specific requirements.
Key Features
High Energy Density
Optimized material filling rate through unique electrode structure achieves 15% higher volumetric energy density than standard cylindrical CR batteries.
Long-Term Reliability
Heat-resistant gasket and laser-seal structure prevent water intrusion and electrolyte evaporation, ensuring over 10 years of service life with only 0.5% annual self-discharge rate.
Stable Discharge Characteristics
Specialized negative electrode material maintains low internal resistance even at high discharge depths.
Superior Low-Temperature Performance
Reliable operation in extreme cold conditions down to -40°C.
High Safety Design
Internal short-circuit prevention structure enhances operational safety.
UL Recognition
CR series batteries are UL Recognized Components (User Replaceable). Certification number: MH12568
Recognized models: CR17335A, CR17450A, CR17450AH, CR17500AU
Applications
- Smart meters (gas, water)
- IoT devices
- Communication devices (LPWA, cellular networks)
- In-vehicle devices
- Security systems
- Memory backup power
Product Comparison
| Model |
CR17335A |
CR17450A |
CR17450AH |
CR17500AU |
| Image |
 |
|
|
|
| Nominal voltage (V) |
3 |
3 |
3 |
3 |
| Nominal capacity (mAh) |
1650 |
2500 |
3000 |
3500 |
| Nominal discharge current (mA) |
5 |
5 |
1 |
1 |
| Dimensions |
17×33.5mm |
17×45mm |
17×45mm |
17×50mm |
| Weight (g) |
17 |
22 |
24 |
26 |

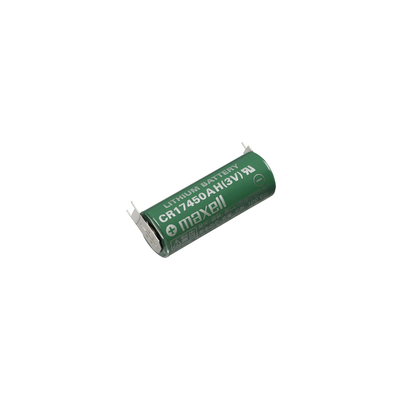

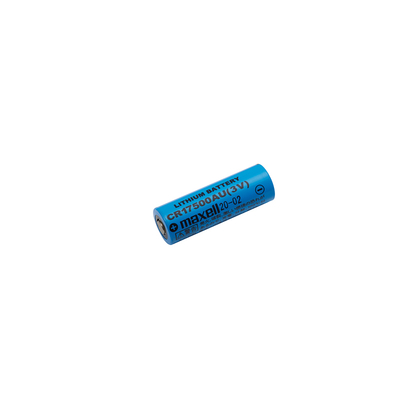

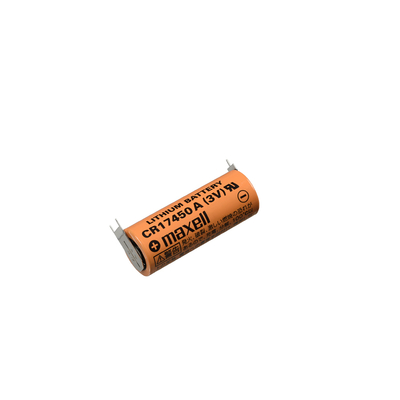

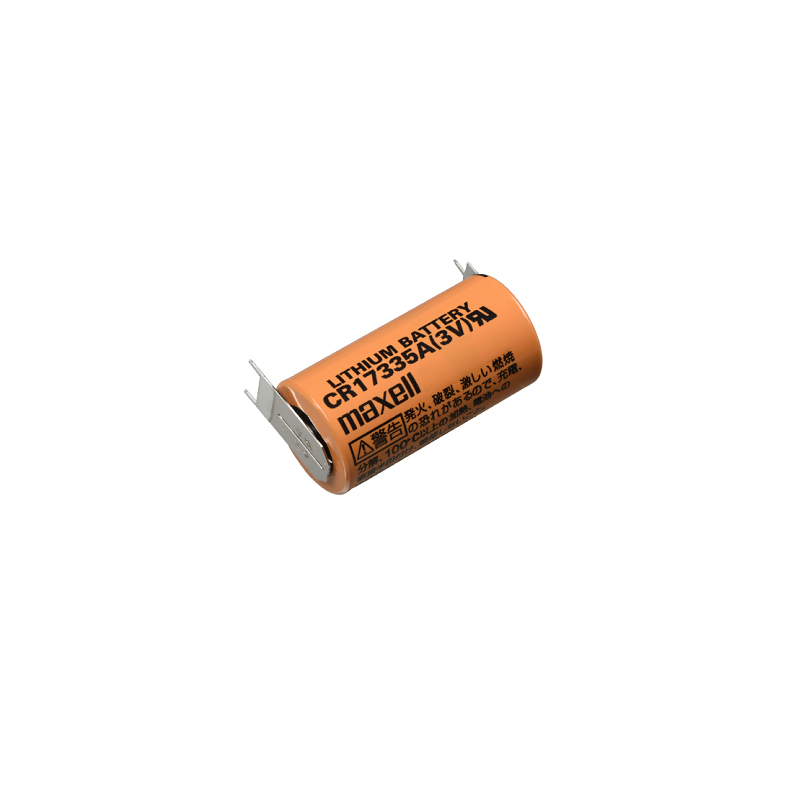

Product Images
Packaging and Shipping
Standard export packaging available. Custom options include cartons, wooden cases, and wooden pallets to meet specific requirements.
Frequently Asked Questions
How to obtain the price?
Quotations are typically provided within 24 hours of inquiry receipt (excluding weekends/holidays). For urgent requests, please contact us directly.
What is your delivery time?
Small batches: 7-15 days. Large quantities: approximately 30 days. Lead times may vary by season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment before shipment via T/T transfer.
What are the shipping options?
Available methods include sea freight, air cargo, and express services (DHL, UPS, FedEx, etc.). Please confirm preferred method before ordering.
