1P17S Cylindrical Lithium Ion Battery Lithium Ion Button Cell For Notebook Motherboard

Large Image : 1P17S Cylindrical Lithium Ion Battery Lithium Ion Button Cell For Notebook Motherboard

Product Details:

Place of Origin:	CN
Brand Name:	Omnergy
Certification:	ROHS
Model Number:	ML1220
Document:	ML1220 OM-2.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	consult with
Packaging Details:	T/R
Delivery Time:	5-8DAY
Payment Terms:	T/T
Supply Ability:	10000

Contact Now Chat Now

1P17S Cylindrical Lithium Ion Battery Lithium Ion Button Cell For Notebook Motherboard

Description

Pack Mode:	1P17S	Battery Pack Mode:	1P17S
Energy Volume Ratio:	(160～210) KWh/m3	Chemistry:	Lithium-ion
Cell Material:	NMC	Ventilation:	Built-in
Terminal Ports:	M6	Shape:	Cylindrical
Working Temperature Range:	-20-60℃
Highlight:	NMC Lithium Ion Battery , Cylindrical Lithium ion Button Battery , lithium ion button cell

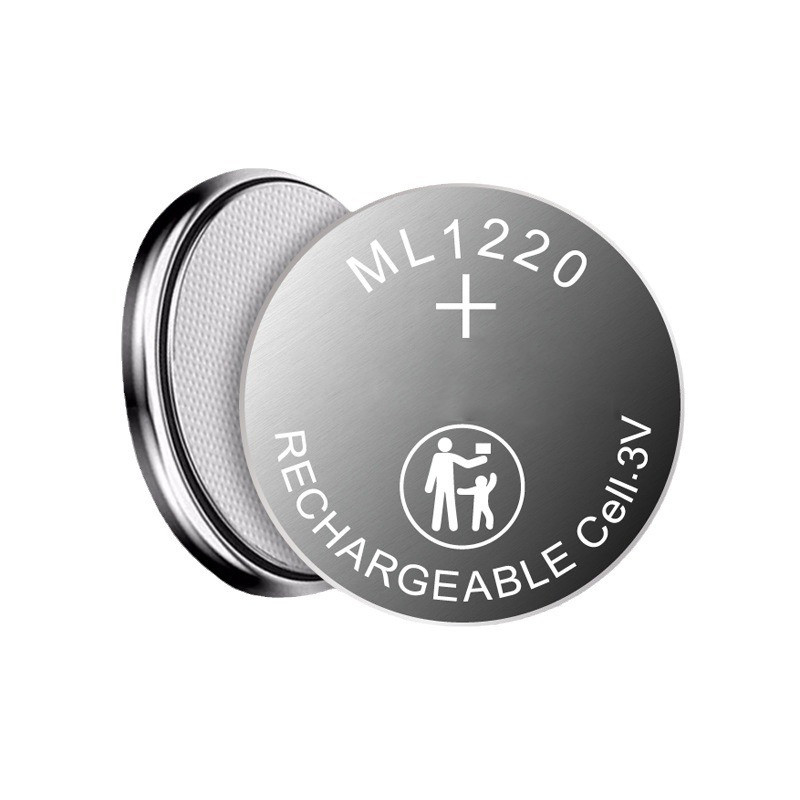

3V Rechargeable Lithium-ion Button Battery ML1220 For Notebook Motherboard

Product Specifications

Attribute	Value
Pack Mode	1P17S
Battery Pack Mode	1P17S
Energy Volume Ratio	(160～210) kWh/m3
Chemistry	Lithium-ion
Cell Material	NMC
Ventilation	Built-in
Terminal Ports	M6
Shape	Cylindrical
Working Temperature Range	-20-60℃

Technical Details

Model: ML1220
Nominal Discharge Current: 0.1mA
Nominal Voltage: 3V
Nominal Capacity: 18mAh
Continuous Standard Load: 30kΩ
Nominal Charge Current: 1mA
Operating Temperature: -20℃ to 70℃
Weight: 0.8g
Certification: UL

Performance Characteristics

Open Circuit Voltage: 2.8V to 3.2V (initial), 2.5V to 3.2V (after 12 months)

Service Life: ≥180 hours (initial), ≥150 hours (after 12 months at 20±2℃)

High Temperature Storage: 60±2℃ for 20 days

Cycle Life: ≥12 cycles (100% discharge), ≥300 cycles (10% discharge)

Installation & Operation Notes

Proper handling is crucial to prevent short circuits and ensure battery safety:

Do not overlap batteries or place on conductive surfaces
Avoid using metal tweezers during handling
Ensure correct polarity during installation
Limit soldering time to 5 seconds maximum
Store in proper conditions (0℃~30℃/35%~75% RH)

WARNING: Lithium manganese batteries contain flammable materials. Improper handling may cause leakage, heating, explosion or fire.

Do not expose to microwave or dryer
Do not drop or deform the battery
Do not mix old and new batteries
Keep away from children - if swallowed, seek immediate medical attention

Packaging & Shipping

Standard export packaging available. Customers can choose from:

Cartons
Wooden cases
Wooden pallets

Frequently Asked Questions

1. How to obtain the price?

We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). For urgent requests, please contact us directly.

2. What is your delivery time?

Small batches: 7-15 days. Large batches: approximately 30 days (varies by season).

3. What are your payment terms?

30% deposit, 70% T/T payment before shipment.

4. What is the mode of transportation?

Available by sea, air or express (EMS, UPS, DHL, TNT, FEDEX). Please confirm before ordering.
