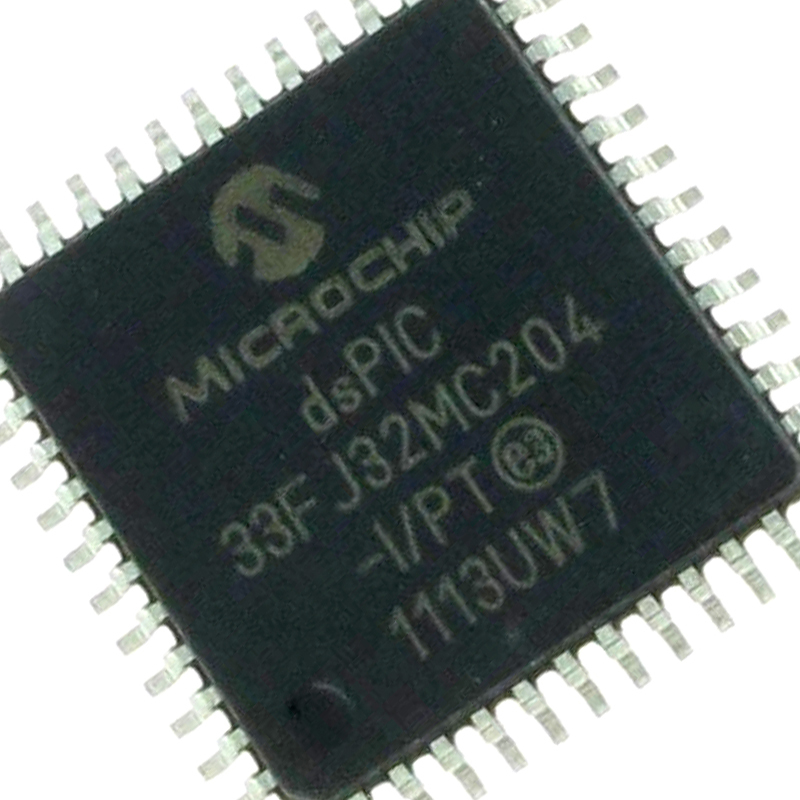

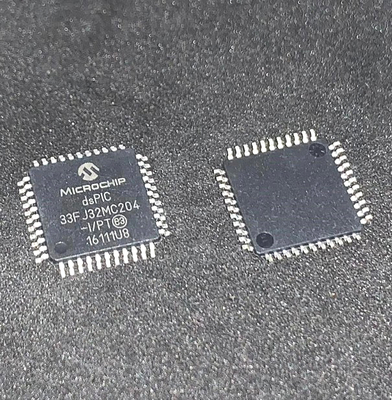

32KB Flash DSP IC Chip Analog 2KB SRAM DSPIC33FJ32MC204-I/PT

• Operating Conditions: 3.0V to 3.6V, -40ºC to +150ºC, DC to 20 MIPS or 3.0V to 3.6V, -40ºC to +125ºC, DC to 40 MIPS
• Core: 16-bit dsPIC33F CPU with code-efficient architecture, two 40-bit wide accumulators, and single-cycle operations
• Clock Management: 2% internal oscillator, programmable PLLs, Fail-Safe Clock Monitor, and Independent Watchdog Timer
• Power Management: Low-power modes (Sleep, Idle, Doze), integrated Power-on Reset and Brown-out Reset
• High-Speed PWM: Up to four PWM pairs with independent timing, 12.5 ns resolution, support for various motor types
• Advanced Analog Features: Configurable ADC module (10-bit or 12-bit), multiple analog inputs
• Communication Interfaces: UART, SPI, I2C modules with various protocol support
• Debugger Development Support: In-circuit programming, breakpoints, JTAG boundary scan
• Qualification: AEC-Q100 REVG (Grade 0 -40ºC to +150ºC), Class B Safety Library

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
