5×20mm Communication Antenna 0618001 MXP Axial Lead AND Cartridge Fuses

5×20mm Communication Antenna 0618001 MXP Axial Lead AND Cartridge Fuses
5×20mm Communication Antenna 0618001 MXP Axial Lead AND Cartridge Fuses 5×20mm Communication Antenna 0618001 MXP Axial Lead AND Cartridge Fuses 5×20mm Communication Antenna 0618001 MXP Axial Lead AND Cartridge Fuses 5×20mm Communication Antenna 0618001 MXP Axial Lead AND Cartridge Fuses

Large Image :  5×20mm Communication Antenna 0618001 MXP Axial Lead AND Cartridge Fuses

Product Details:
Place of Origin: CN
Brand Name: Littelfuse
Certification: ROHS
Model Number: 0618001.MXP
Document: C142776_1510219978443110345...50.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: 0.5
Packaging Details: T/R
Delivery Time: 5-8DAY
Payment Terms: T/T,Western Union
Supply Ability: 10000
Contact Now Chat Now

5×20mm Communication Antenna 0618001 MXP Axial Lead AND Cartridge Fuses

Description
Manufacturer:: Littelfuse Product Category:: Cartridge Fuses
Series:: 618 Current Rating:: 1 A
Fuse Size / Group:: 5 Mm X 20 Mm Voltage Rating AC:: 250 VAC
Diameter:: 5 Mm Length:: 20 Mm
Highlight:

5×20mm Communication Antenna

,

Communication Antenna Axial Lead

,

0618001

Axial Lead AND Cartridge Fuses 618 Series 5×20mm Time-Lag Fuse 0618001.MXP
Product Specifications
Manufacturer Littelfuse
Product Category Cartridge Fuses
Series 618
Current Rating 1 A
Fuse Size / Group 5 mm x 20 mm
Voltage Rating AC 250 VAC
Diameter 5 mm
Length 20 mm
Interrupt Rating 35 A at 250 VAC
Mounting Style Holder / Clip
Termination Style Clip
Operating Temperature -55°C to +125°C
Resistance 61.3 mOhms
Packaging Bulk
Unit Weight 0.052911 oz
Product Description

5x20mm Time-Lag glass body cartridge fuse designed to EC specification.

Features
  • Designed to International Standards (IEC) for use globally
  • Available in cartridge and axial lead form
  • RoHS compliant and lead-free
  • Meets the IEC 60127-2, Sheet 3 specification for Time-Lag fuses
Applications

Used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.

Application testing is strongly recommended.

Electrical Characteristics
% of Ampere Rating Ampere Rating Opening Time
150% 0.125A-6.3A 60 minutes, Minimum
150% 8A-10A 30 minutes, Minimum
210% 0.125A-6.3A 120 sec., Maximum
210% 8A-10A 120 sec., Maximum
275% 0.125A-6.3A 600 ms., Min.; 10 sec. Max.
275% 8A-10A 600 ms., Min.; 10 sec. Max.
400% 0.125A-6.3A 150 ms., Min.; 3 sec. Max.
400% 8A-10A 150 ms., Min.; 3 sec. Max.
1000% 0.125A-6.3A 20 ms., Min.; 300 ms. Max.
1000% 8A-10A 20 ms., Min.; 300 ms. Max.

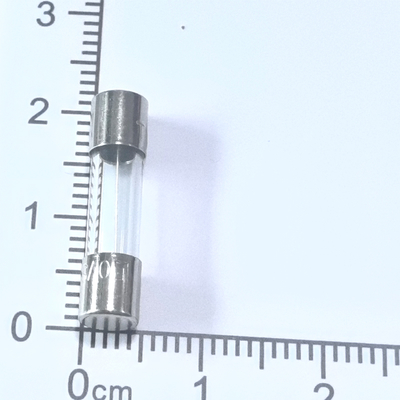

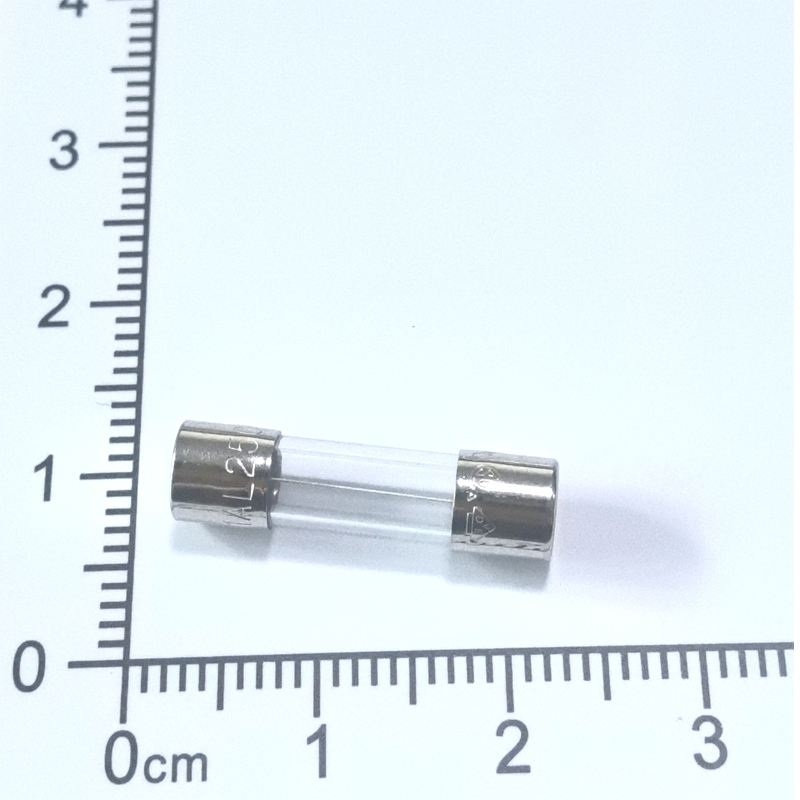

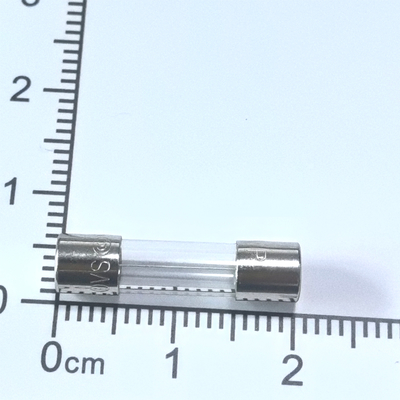

Product Images
5×20mm Communication Antenna 0618001 MXP Axial Lead AND Cartridge Fuses 0 5×20mm Communication Antenna 0618001 MXP Axial Lead AND Cartridge Fuses 1 5×20mm Communication Antenna 0618001 MXP Axial Lead AND Cartridge Fuses 2 5×20mm Communication Antenna 0618001 MXP Axial Lead AND Cartridge Fuses 3
Packaging and Transportation

Standard export packaging. Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.

Frequently Asked Questions
1. How to obtain the price?

We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are in urgent need of a price, please contact us directly.

2. What is your delivery time?

Typically 7-15 days for small batches, about 30 days for large batches, depending on order quantity and season.

3. What are your payment terms?

Factory price, 30% deposit, 70% T/T payment before shipment.

4. What is the mode of transportation?

Available by sea, air or express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm before ordering.

5. How do you help our business establish a long-term relationship?

We maintain good quality and competitive prices to ensure customer benefits. We respect every customer and value long-term partnerships.
