Battery Management SOC System On Chip Single Cell Lithium Ion Charger BQ24090DGQR

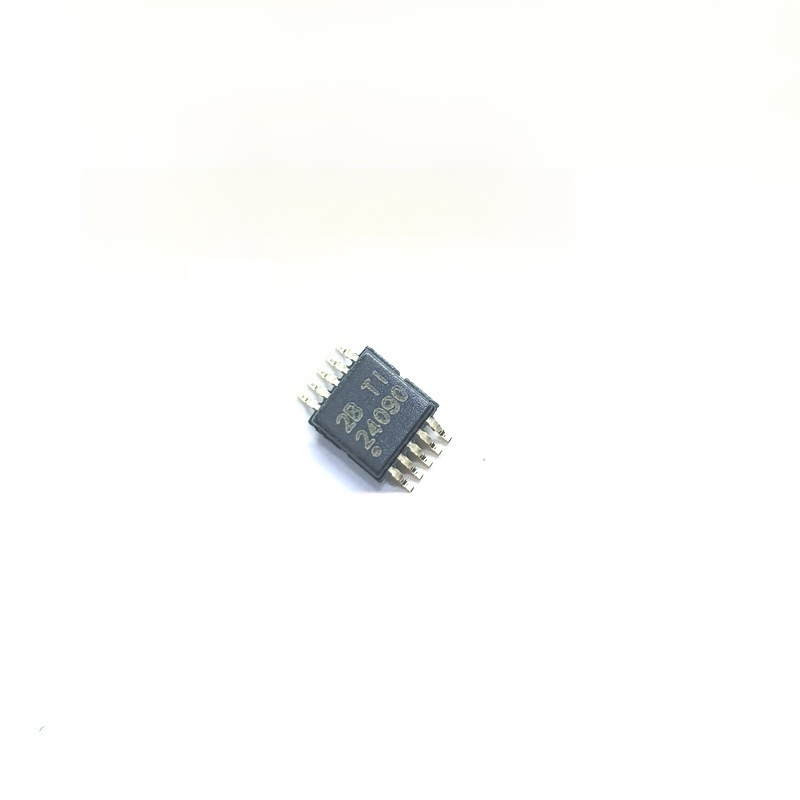

Large Image : Battery Management SOC System On Chip Single Cell Lithium Ion Charger BQ24090DGQR

Product Details:

Place of Origin:	CN
Brand Name:	TI
Certification:	ROHS
Model Number:	BQ24090DGQR
Document:	bq24090.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	consult with

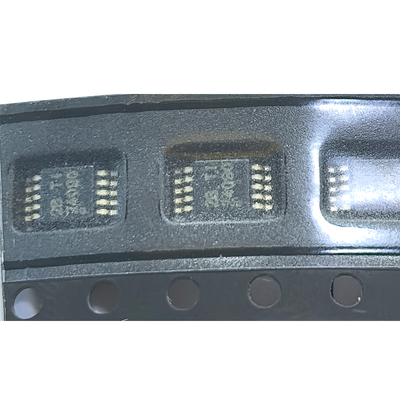

Packaging Details:	T/R
Delivery Time:	5-8DAY
Payment Terms:	T/T,Western Union
Supply Ability:	100000

Contact Now Chat Now

Battery Management SOC System On Chip Single Cell Lithium Ion Charger BQ24090DGQR

Description

Product Category::	Battery Management	Battery Type::	Lithium-ion
Series::	BQ24090	Packaging::	Cut Tape
Package / Case::	MSOP-10	Operating Supply Voltage::	4.5 V To 6.5 V
Factory Pack Quantity::	2500
Highlight:	Battery Management SOC System On Chip , SOC System On Chip 4.5V , BQ24090DGQR

Battery Management IC - BQ24090DGQR

Battery Management Applied To Single-cell Lithium-ion Lithium-polymer Batteries And Charger Chips BQ24090DGQR

Product Overview

The BQ24090DGQR is a highly integrated lithium-ion and lithium-polymer battery charger designed for space-constrained applications. This single-cell charger supports USB port or AC adapter power sources with comprehensive protection features.

Key Specifications

Attribute	Value
Product Category	Battery Management
Battery Type	Lithium-ion/Lithium-polymer
Series	BQ24090
Package	MSOP-10
Operating Voltage	4.5 V to 6.5 V
Output Voltage	4.2 V
Output Current	1 A
Operating Temperature	-40°C to +150°C

Key Features

Precision Charging: 1% voltage accuracy, 10% current accuracy
Input Options: 100mA/500mA USB current limits
Comprehensive Protection: 6.6V overvoltage, thermal regulation (125°C), shutdown (150°C)
JEITA Compliance: Temperature monitoring via battery NTC

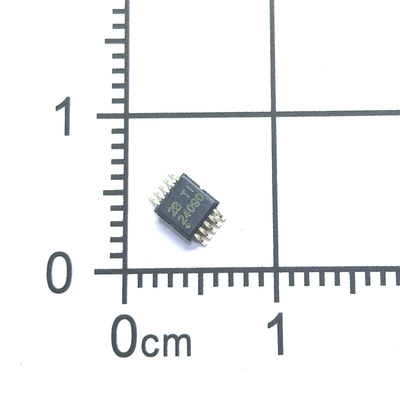

Compact Design: 10-pin MSOP package (3mm × 3mm)

Applications
