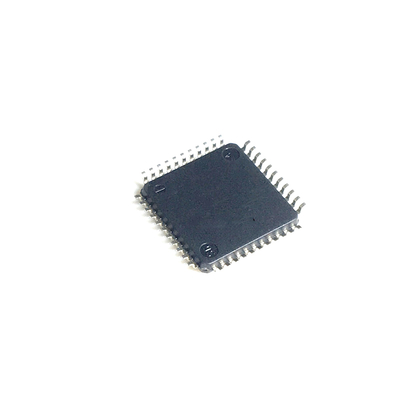

Digital Signal Dsp Digital Signal Processor High Speed DsPIC33EP256MC204-I/PT

16-bit dsPIC33E/PIC24E CPU with advanced digital signal controller features for industrial applications.

• 3.0V to 3.6V, -40°C to +85°C, DC to 70 MIPS
• 3.0V to 3.6V, -40°C to +125°C, DC to 60 MIPS
• 3.0V to 3.6V, -40°C to +150°C, DC to 40 MIPS

• Code Efficient (C and Assembly) Architecture
• Two 40-Bit Wide Accumulators
• Single Cycle (MAC/MPY) with Dual Data Fetch
• Single-Cycle, Mixed-Sign MUL plus Hardware Divide
• 32-Bit Multiply Support

• 1.0% Internal Oscillator
• Programmable PLLs and Oscillator Clock Sources
• Fail-Safe Clock Monitor (FSCM)
• Independent Watchdog Timer (WDT)
• Fast Wake-up and Start-up

• Low-Power Management modes (Sleep, Idle, Doze)
• Integrated Power-on Reset and Brown-out Reset
• 0.6 mA/MHz Dynamic Current (typical)
• 30 µA IPD Current (typical)

• Up to Three PWM Pairs with Independent Timing
• Dead Time for Rising and Falling Edges
• 7.14 ns PWM Resolution
• PWM Support for DC/DC, AC/DC, Inverters, PFC, Lighting, BLDC, PMSM, ACIM, SRM
• Programmable Fault Inputs
• Flexible Trigger Configurations for ADC Conversions

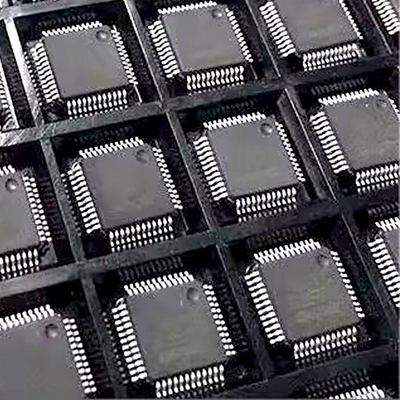

Standard export packaging available. Customers can choose from cartons, wooden cases and wooden pallets according to their requirements.
