Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR

Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR
Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR

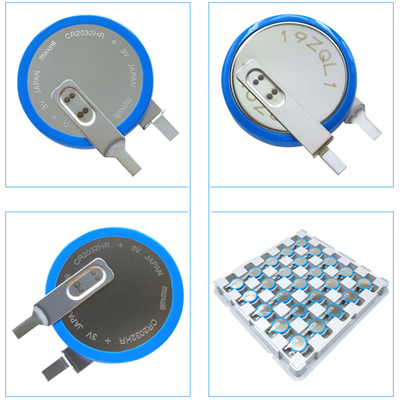

Large Image :  Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR

Product Details:
Place of Origin: JP
Brand Name: Maxell
Certification: ROHS
Model Number: CR2032HR/CR2050HR/CR2450HR
Document: CR2032HR.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 6
Packaging Details: T/R
Delivery Time: 5-8DAY
Payment Terms: T/T,Western Union
Supply Ability: 1000
Contact Now Chat Now

Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR

Description
Model: CR2032HR/CR2050HR/CR2450HR Nominal Voltage (V): 3
Nominal Capacity (mAh)*1: 200/350/550 Nominal Discharge Current (mA): 0.2
Operating Temperature Range (deg. C)*2: -40 To +125 Acceleration Resistance: Max. 2000 G
Diameter (mm): 20.0/20.0/24.5 Height (mm): 3.2/5.0/5.0
Weight (g)*3: 3.0/4.1/6.8
Highlight:

Heat Resistant Lithium Ion Battery

,

Coin Lithium Ion Battery

,

CR2032HR

Heat Resistant Coin Type Lithium Manganese Dioxide Batteries (CR) Industrial Lithium Batteries CR2032HR CR2050HR CR2450HR
Product Specifications
Attribute Value
Model CR2032HR/CR2050HR/CR2450HR
Nominal voltage (V) 3
Nominal capacity (mAh)*1 200/350/550
Nominal discharge current (mA) 0.2
Operating temperature range (deg. C)*2 -40 to +125
Acceleration resistance Max. 2000 G
Diameter (mm) 20.0/20.0/24.5
Height (mm) 3.2/5.0/5.0
Weight (g)*3 3.0/4.1/6.8
*1: At 20°C, 15kΩ discharge to 2.0V
*2: When using at temperatures exceeding 85°C, please consult Maxell in advance
*3: Typical values
Product Description

Maxell's original sealing technology and highly heat-resistant material expands operating temperature range remarkably, making the batteries supremely suitable for automobile applications -- for powering TPMS (Tire Pressure Monitoring System) sensors, for example.

The range of technologies where these batteries can be applied is expanding to include IoT sensors and HACCP temperature loggers that require a wide operating temperature range.

Key Features
  • Wide operating temperature range: -40°C to +125°C*
  • Superior leak-resistant characteristics even under high temperature and acceleration
  • Can be used even under 2000 G, which is equivalent to driving at 300 km/h
  • Resistance to high temperature/humidity: Increase in internal resistance can be suppressed even when exposed to harsh conditions for long periods
* When using at temperatures exceeding 85°C, please consult Maxell in advance for conditions of use.
UL Recognition

The heat resistant coin type lithium manganese dioxide battery is a UL recognized component. (Technician Replaceable)

Recognized model: CR2450HR, CR2050HR, CR2032HR, CR2032HRS
Certification Number: MH12568

Applications
  • TPMS (Tire-Pressure Monitoring System)
  • ETC (Electronic Toll Collection systems)
  • Keyless entry systems
  • Seat location sensors
  • Communication tags, beacons
  • Temperature data loggers (HACCP temperature loggers)
  • Logistics tags
  • FA instruments (measuring instruments, onboard microcomputers, sensors)
  • IoT sensors
Model Comparison
Model CR2032HRS CR2032HR CR2050HR CR2450HR
Nominal voltage (V) 3 3 3 3
Nominal capacity (mAh)*1 200 200 350 550
Nominal discharge current (mA) 0.2 0.2 0.2 0.2
Operating temperature range (deg. C)*2 -40 to +125
Acceleration resistance Max. 3300 G Max. 2000 G Max. 2000 G Max. 2000 G
Dimensions*3 Diameter (mm): 20.0
Height (mm): 3.2		 Diameter (mm): 20.0
Height (mm): 3.2		 Diameter (mm): 20.0
Height (mm): 5.0		 Diameter (mm): 24.5
Height (mm): 5.0
Weight (g)*3 3.0 3.0 4.1 6.8
Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR 0 Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR 1 Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR 2 Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR 3 Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR 4 Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR 5 Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR 6 Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR 7

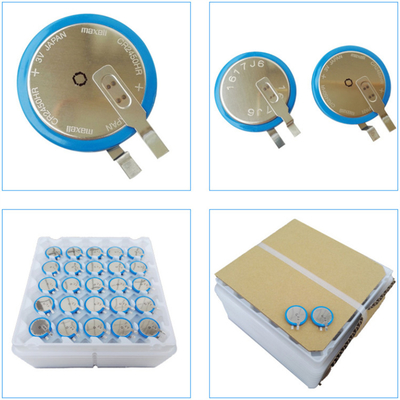

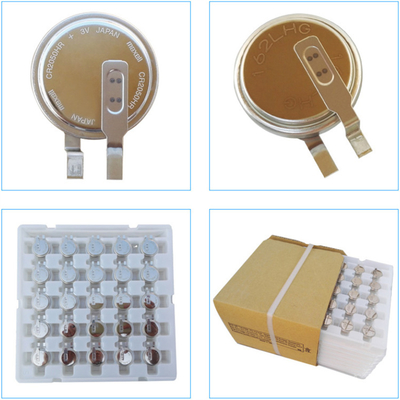

Packaging and Transportation

According to the standard export packaging. Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.

Frequently Asked Questions
1. How to obtain the price?

We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are in urgent need of a price, please send us an email or contact us in any other way so that we can provide you with a quotation.

2. What is your delivery time?

This depends on the quantity of the order and the season in which you place the order. Usually, we can ship the goods within 7 to 15 days (for small batches), and for large batches, it takes about 30 days.

3. What are your payment terms?

Factory price, 30% deposit, 70%T/T payment before shipment.

4. What is the mode of transportation?

It can be transported by sea, air or express delivery (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing an order.

5. How do you help our business establish a long-term and good relationship?

We maintain good quality and competitive prices to ensure that our customers benefit.

We respect every customer as our friend. We do business with them sincerely and make friends with them, no matter where they come from.
