Industrial DRAM Memory Chip DDR3l DDR3L X16 2Gb F60C1A0002-M69W

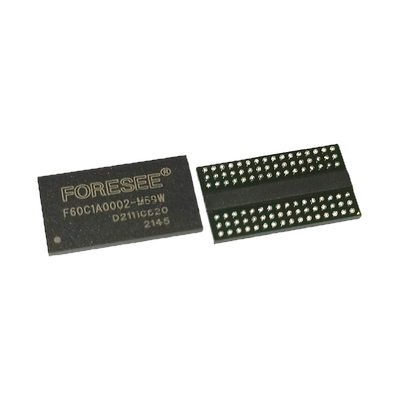

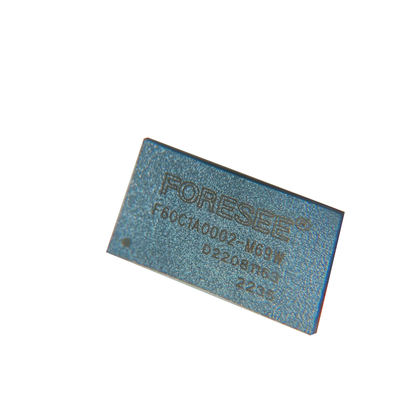

Large Image : Industrial DRAM Memory Chip DDR3l DDR3L X16 2Gb F60C1A0002-M69W

Product Details:

Place of Origin:	CN
Brand Name:	FORESEE
Certification:	ROSH
Model Number:	F60C1A0002-M69W
Document:	96237F920DD2B929D2DD38A9598...0D.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	CONSULT WITH
Packaging Details:	T/R
Delivery Time:	5-8DAY
Payment Terms:	T/T,Western Union
Supply Ability:	10000

Contact Now Chat Now

Industrial DRAM Memory Chip DDR3l DDR3L X16 2Gb F60C1A0002-M69W

Description

Product Catalogue:	Memory > Dynamic Random Access Memory (DRAM)	Universal Packaging :	FBGA-96
RoHS:	Compliance	Installation Method:	Surface Mount Installation
Operating Temperature:	- 40℃~+95℃	Length * Width * Height :	-
Application Grade:	Commercial Grade	Packaging Method:	Pallet
Highlight:	Industrial DRAM Memory Chip , DRAM Memory Chip DDR3l 2Gb , F60C1A0002-M69W

Dynamic Random Access Memory DRAM IndustrialDDR3l DDR3Lx16 2Gb F60C1A0002-M69W

Product Specifications

Attribute	Value
Product Catalogue	Memory > Dynamic Random Access Memory (DRAM)
Universal packaging	FBGA-96
RoHS	Compliance
Installation method	Surface mount installation
Operating temperature	-40℃~+95℃
Application grade	Commercial grade
Packaging method	pallet
Minimum working power supply voltage	1.35V
Storage capacity	2Gbit
Maximum working power supply voltage	1.5V

Key Features

Density: 2G bits (128Meg x 16 bits organization)
96-ball FBGA package, lead-free and halogen-free
Power supply: VDDNDDQ =1.35V(1.283 to 1.45V)
Backward compatible DDR3 (1.5V) operation
Data Rate: 1600Mbps/1866Mbps
2KB page size (x16)
Eight internal banks for concurrent operation
Burst lengths (BL): 8 and 4 with Burst Chop(BC)
CAS Latency (CL): 5,6,7,8,9,10,11,12,13,14
Operating temperature range: Tc=0°C to +85°C (Commercial Grade), Te=-40°C to +95°C (Industrial Grade)
Double data-rate architecture: two data transfers per clock cycle
JEDEC compliant DDR3
RH-Free (Row Hammer Free) option available

Packaging and Transportation

Standard export packaging available. Customers can choose from cartons, wooden cases and wooden pallets according to their requirements.
