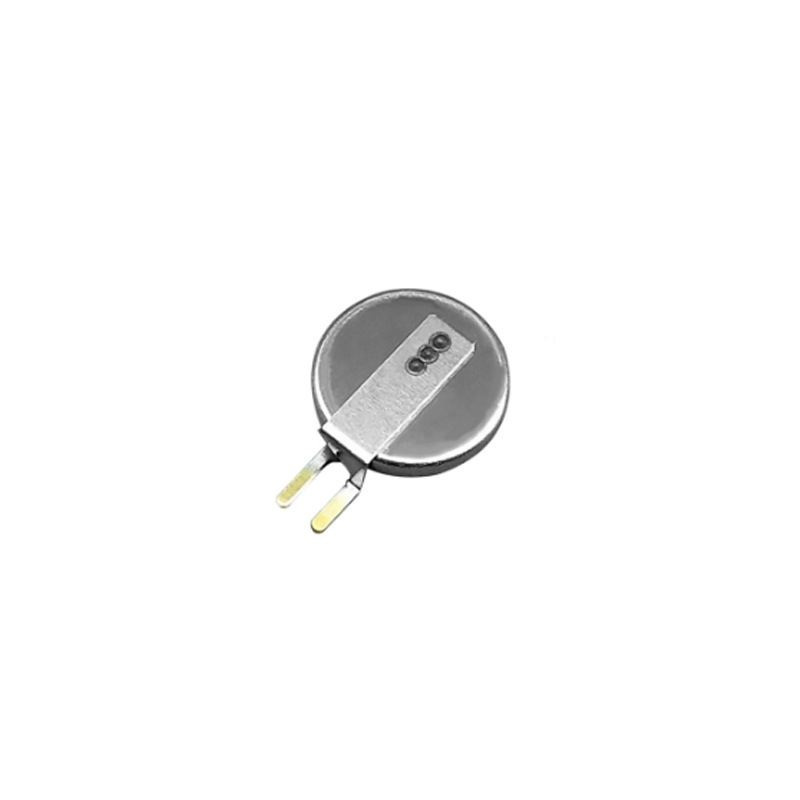

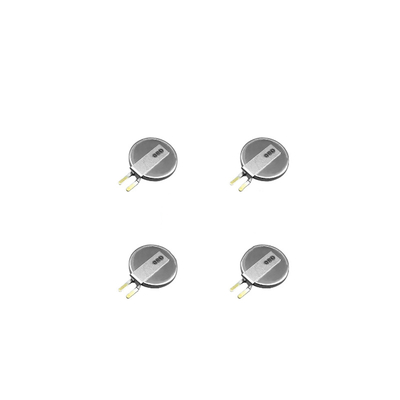

NB614S224N Supercapacitor Substitute MS621FE Battery Equivalent MS3R322 Battery

The NB614S224N supercapacitor substitute MS621FE ML621 S/D MS3R322 battery provides reliable energy storage with specific operational requirements.

The service life of supercapacitors is affected by operating temperature. Generally, when the operating temperature drops by 10℃, the service life will be extended. Please use in low-temperature environments below the maximum operating temperature whenever possible.

Important installation notes:

• Confirm operating temperature around equipment, internal temperature, and radiating heat from nearby components
• Do not install near heating elements
• Observe correct polarity according to terminal markings

• Areas with water, salt water, oil, or condensation
• Environments with harmful gases (hydrogen sulfide, sulfurous acid, chlorine, etc.)
• Areas with acidic/alkaline solvents
• Direct sunlight or dusty conditions
• Excessive vibration or shock

• Avoid overheating during soldering (260℃ max for 5 seconds on 1.6mm PCB)
• No reflow soldering
• Do not insert into molten solder
• Only solder pins - avoid contact between soldering iron and heat shrink tube
• Do not twist or tilt after installation

• Store at -10℃ to 50℃ with relative humidity below 60%
• Avoid prohibited environments listed above
• Dispose properly according to local regulations

Standard export packaging available. Customers can choose from:

• Cartons
• Wooden cases
• Wooden pallets
