64GB UFS 2.1 NAND Flash Memory Chip K3KL9L90CM-MGCT BGA

Large Image : 64GB UFS 2.1 NAND Flash Memory Chip K3KL9L90CM-MGCT BGA

Product Details:

Place of Origin:	Korea
Brand Name:	SAMSUNG
Certification:	ROHS
Model Number:	K3KL9L90CM-MGCT

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	consult
Packaging Details:	T/R
Delivery Time:	5～8day
Payment Terms:	T/T,Western Union
Supply Ability:	10000

Contact Now Chat Now

64GB UFS 2.1 NAND Flash Memory Chip K3KL9L90CM-MGCT BGA

Description

Type:	NAND Flash Memory	Interface Standard:	UFS 2.1
Capacity:	64GB	Operating Voltage:	2.5V - 3.6V
Data Transfer Rate:	Up To 530 MB/s (sequential Read), Up To 170 MB/s (sequential Write)	Packaging Form:	BGA
Operating Temperature Range:	-25°C To +85°C	I/O Pin:	400mil BGA
Highlight:	64GB UFS 2.1 NAND flash memory , BGA NAND flash memory chip , UFS 2.1 memory with warranty

EMBEDDED NAND FLASH MEMORY CHIP K3KL9L90CM-MGCT IS MAINLY APPLIED IN HIGH-END MOBILE DEVICES

K3KL9L90CM-MGCT

The K3KL9L90CM-MGCT is an embedded NAND Flash memory chip from Samsung Electronics' UFS (Universal Flash Storage) series. Designed for high-end mobile devices including smartphones and tablets, this chip delivers fast data transmission and storage capabilities. Compliant with UFS 2.1 standard, it offers superior read/write speeds, reduced power consumption, and compact dimensions to meet the demanding storage requirements of modern smart devices.

Technical Specifications

Parameter	Value
Type	NAND flash memory
Interface standard	UFS 2.1
Capacity	64GB
Operating voltage	2.5V - 3.6V
Data transfer rate	Up to 530 MB/s (sequential read), up to 170 MB/s (sequential write)
Packaging form	BGA
Operating temperature range	-25°C to +85°C
I/O pin	400mil BGA

Key Features

Superior performance compared to traditional eMMC solutions
High-speed data transmission with UFS 2.1 interface supporting full-duplex operation for simultaneous read/write operations
Reduced power consumption extends device battery life
Compact form factor ideal for space-constrained mobile devices
Enhanced stability and reliability through rigorous testing
Hardware-level encryption for data security

Applications

Smartphones and tablets: Primary internal storage solution offering high-capacity, high-performance storage
Automotive systems: Ideal for infotainment systems requiring reliable, high-performance storage
Industrial control equipment: Stores critical programs and data in automation systems
IoT devices: Supports local data storage requirements for real-time responsiveness
Wearable devices: Compact size and low power consumption make it perfect for wearable storage solutions

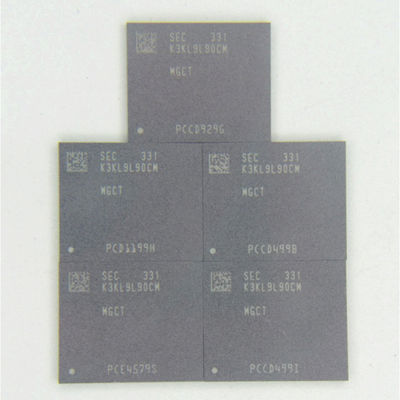

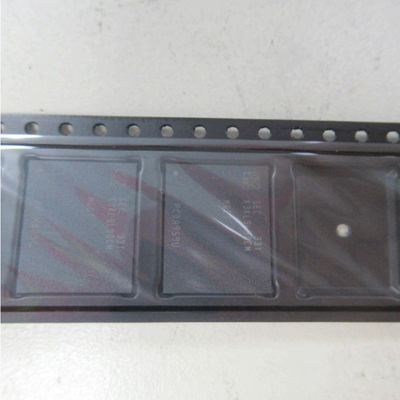

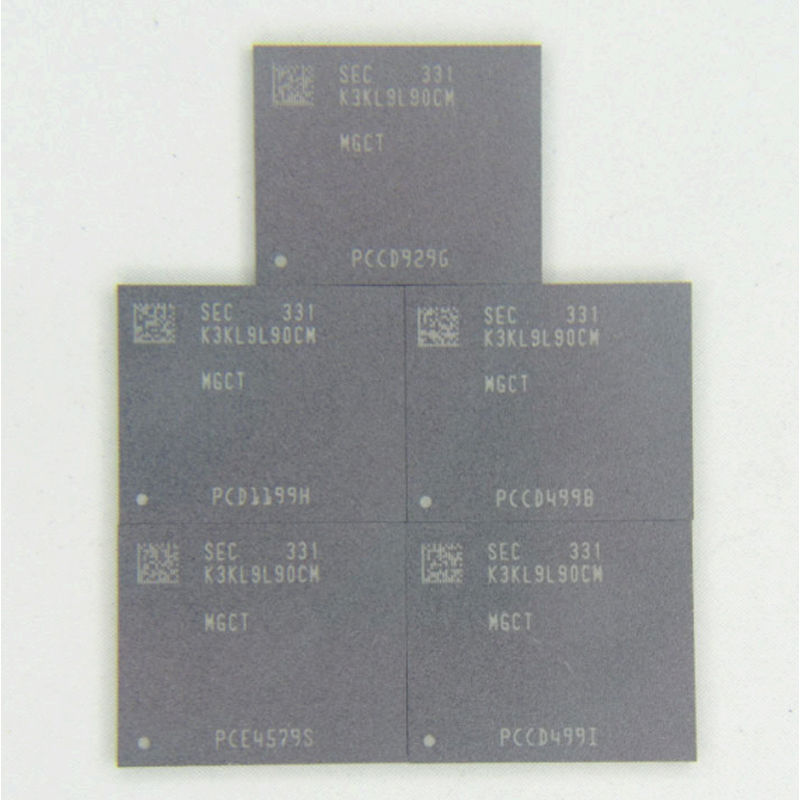

Product Images
