DRV8837DSGT 1.8A Brushed DC Motor Driver with Low Voltage Operation and H-Bridge Configuration

DRV8837DSGT Motor Motion Ignition Controllers Drivers 1.8A Low Vltg Brush DC Motor Driver

1 Features

• H-bridge Motor Driver - Drive DC motors or Other Loads - Low MOSFET on-resistance: HS + LS 280mΩ
• Maximum drive current of 1.8A
• Independent motor and logic power pins: - Motor VM: 0 to 11 V - Logic VCC: 1.8 to 7 V
• PWM or PH-EN interface - DRV8837: PWM, IN1 and IN2 - DRV8838: PH and EN
• Low-power sleep mode The maximum sleep current is only 120nA - nSLEEP pin

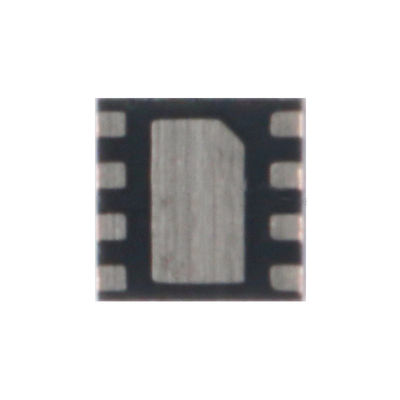

• Small package size - 8-pin WSON package with heat dissipation pad - 2.0mm * 2.0mm
• Protection characteristics - VCC undervoltage lockout (UVLO) - overcurrent protection (OCP) - thermal shutdown (TSD)

2 Application Scope

• Cameras
• Digital Single-lens Reflex (DSLR) Lenses
• Consumer Products
• Toys
• Robotics
• Medical Devices

3 Description

The DRV883x device series offers an integrated motor driver solution for cameras, consumer products, toys, and other low-voltage or battery-powered motion control applications. This device can drive a DC motor or other devices (such as solenoids). The output driver module is composed of N-channel power MOSFETs configured as H-bridges, which are used to drive the motor windings. An internal charge pump is used to generate the required gate drive voltage. The DRV883x device series can provide an output current of up to 1.8A. It operates on motor power supply voltages ranging from 0 to 11V and device power supply voltages within the range of 1.8V to 7V. The DRV8837 features a PWM (IN/IN) input interface. The DRV8838 device has a PH-EN input interface. Both of these interfaces are compatible with industry standard devices. It also provides internal shut-off functions for overcurrent protection, short-circuit protection, undervoltage locking and overheat protection.

Specifications

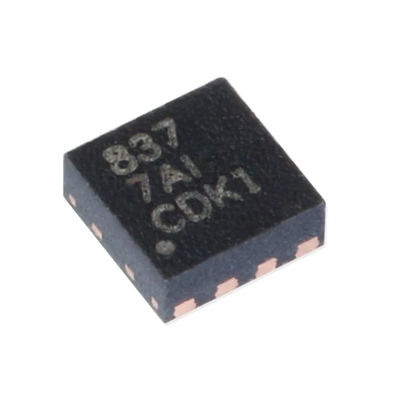

Product Images

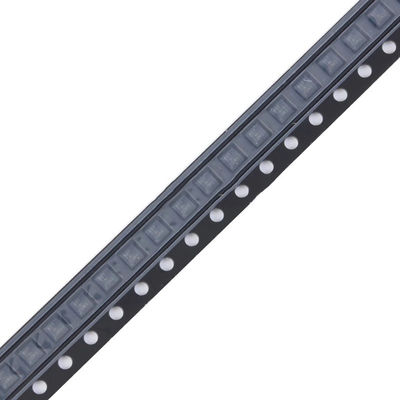

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
