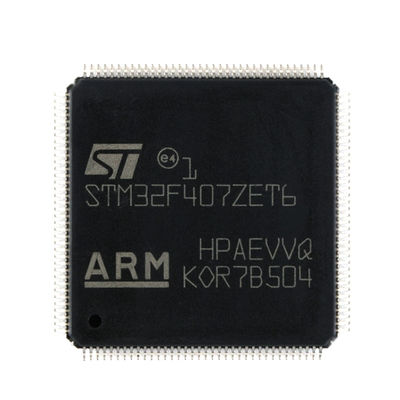

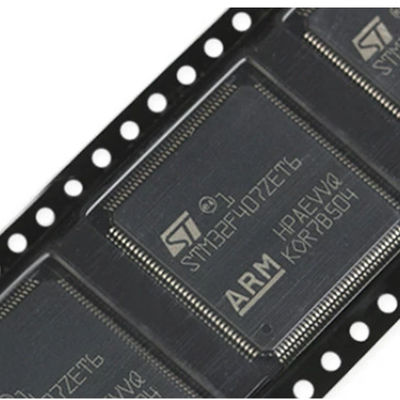

STM32F407ZET6 Microcontroller with ARM Cortex-M4 Core Featuring 210 DMIPS 1MB Flash and 192+4KB RAM

I'm Online Chat Now

STM32F407ZET6 Microcontroller with ARM Cortex-M4 Core Featuring 210 DMIPS 1MB Flash and 192+4KB RAM

STM32F407ZET6 Microcontroller with ARM Cortex-M4 Core Featuring 210 DMIPS 1MB Flash and 192+4KB RAM
STM32F407ZET6 Microcontroller with ARM Cortex-M4 Core Featuring 210 DMIPS 1MB Flash and 192+4KB RAM STM32F407ZET6 Microcontroller with ARM Cortex-M4 Core Featuring 210 DMIPS 1MB Flash and 192+4KB RAM STM32F407ZET6 Microcontroller with ARM Cortex-M4 Core Featuring 210 DMIPS 1MB Flash and 192+4KB RAM STM32F407ZET6 Microcontroller with ARM Cortex-M4 Core Featuring 210 DMIPS 1MB Flash and 192+4KB RAM

Large Image :  STM32F407ZET6 Microcontroller with ARM Cortex-M4 Core Featuring 210 DMIPS 1MB Flash and 192+4KB RAM

Product Details:
Place of Origin: CN
Brand Name: STMicroelectronics
Certification: ROHS
Model Number: STM32F407ZET6
Document: 1471342957598.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 6
Packaging Details: Tray
Delivery Time: 5-8day
Payment Terms: T/T,Western Union
Supply Ability: 10000
Contact Now Chat Now

STM32F407ZET6 Microcontroller with ARM Cortex-M4 Core Featuring 210 DMIPS 1MB Flash and 192+4KB RAM

Description
Product Category:: ARM Microcontrollers - MCU Package / Case:: LQFP-144
Core:: ARM Cortex M4 Program Memory Size:: 512 KB
Number Of I/Os:: 114 I/O Data RAM Type:: SRAM
Moisture Sensitive:: Yes Factory Pack Quantity:: 360
Unit Weight:: 0.045518 Oz
Highlight:

210 DMIPS STM32F407ZET6 Microcontroller

,

1MB Flash ARM Cortex-M4 MCU

,

192+4KB RAM 32-bit Microcontroller

ARM Cortex-M4 32b MCU+FPU, 210DMIPS, up to 1MB Flash/192+4KB RAM, USBOTG HS/FS, Ethernet, 17 TIMs, 3 ADCs, 15 comm. interfaces & camera
  • Core: ARM® 32-bit Cortex®-M4 CPU with FPU, Adaptive real-time accelerator (ARTAccelerator™) allowing 0-wait state execution from Flash memory, frequency up to 168 MHz, memory protection unit, 210 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
  • Memories
    • Up to 1 Mbyte of Flash memory
    • Up to 192+4 Kbytes of SRAM including 64-Kbyte of CCM (core coupled memory) data RAM
    • Flexible static memory controller supporting Compact Flash, SRAM, PSRAM, NOR and NAND memories
  • LCD parallel interface, 8080/6800 modes
  • Clock, reset and supply management
    • 1.8 V to 3.6 V application supply and I/Os
    • POR, PDR, PVD and BOR
    • 4-to-26 MHz crystal oscillator
    • Internal 16 MHz factory-trimmed RC (1% accuracy)
    • 32 kHz oscillator for RTC with calibration
    • Internal 32 kHz RC with calibration
  • Low-power operation
    • Sleep, Stop and Standby modes
    • VBAT supply for RTC, 20*32 bit backup registers + optional 4 KB backup SRAM
  • 3*12-bit, 2.4 MSPS A/D converters: up to 24 channels and 7.2 MSPS in triple interleaved mode
  • 2*12-bit D/A converters
  • General-purpose DMA: 16-stream DMA controller with FIFOs and burst support
  • Up to 17 timers: up to twelve 16-bit and two 32-bit timers up to 168 MHz, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
  • Debug mode
    • Serial wire debug (SWD) & JTAG interfaces
    • Cortex-M4 Embedded Trace Macrocell™
  • Up to 140 I/O ports with interrupt capability
    • Up to 136 fast I/Os up to 84 MHz
    • Up to 138 5 V-tolerant I/Os
  • Up to 15 communication interfaces
    • Up to 3 * I2C interfaces (SMBus/PMBus)
    • Up to 4 USARTs/2 UARTs (10.5 Mbit/s, ISO7816 interface, LIN, IrDA, modem control)
    • Up to 3 SPIs (42 Mbits/s), 2 with muxed full-duplex I2S to achieve audio class accuracy via internal audio PLL or external clock
    • 2 * CAN interfaces (2.0B Active)
    • SDIO interface
  • Advanced connectivity
    • USB 2.0 full-speed device/host/OTG controller with on-chip PHY
    • USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, on-chip full-speed PHY and ULPI
    • 10/100 Ethernet MAC with dedicated DMA: supports IEEE 1588v2 hardware, MII/RMII
  • 8- to 14-bit parallel camera interface up to 54 Mbytes/s
  • True random number generator
  • CRC calculation unit
  • 96-bit unique ID
  • RTC: subsecond accuracy, hardware calendar
Table 1. Device summary
Reference Part number
STM32F405xx STM32F405RG, STM32F405VG, STM32F405ZG, STM32F405OG, STM32F405OE
STM32F407xx STM32F407VG, STM32F407IG, STM32F407ZG, STM32F407VE, STM32F407ZE, STM32F407IE
Specifications
Manufacturer: STMicroelectronics
Product Category: ARM Microcontrollers - MCU
RoHS: Details
Series: STM32F407ZE
Mounting Style: SMD/SMT
Package / Case: LQFP-144
Core: ARM Cortex M4
Program Memory Size: 512 kB
Data Bus Width: 32 bit
ADC Resolution: 12 bit
Maximum Clock Frequency: 168 MHz
Number of I/Os: 114 I/O
Data RAM Size: 192 kB
Supply Voltage - Min: 1.8 V
Supply Voltage - Max: 3.6 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Packaging: Tray
Brand: STMicroelectronics
DAC Resolution: 12 bit
Data RAM Type: SRAM
Interface Type: CAN, I2C, SDIO, I2S / SPI, UART / USART, USB
Moisture Sensitive: Yes
Number of ADC Channels: 24 Channel
Processor Series: STM32F40
Product: MCU+FPUs
Product Type: ARM Microcontrollers - MCU
Program Memory Type: Flash
Factory Pack Quantity: 360
Subcategory: Microcontrollers - MCU
Tradename: STM32
Watchdog Timers: Watchdog Timer, Windowed
Unit Weight: 0.045518 oz
