24LC08BT-I/OT 8K I²C Serial EEPROM Single Supply With Operation Down To 1.7V For 24AA08 And 24FC08 Devices, 2.5V For 24LC08B Devices

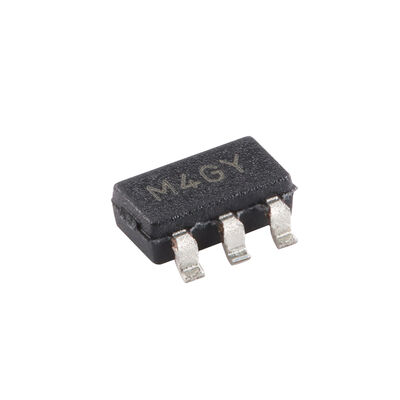

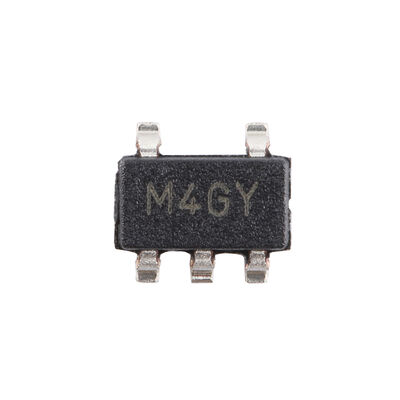

Large Image : 24LC08BT-I/OT 8K I²C Serial EEPROM Single Supply With Operation Down To 1.7V For 24AA08 And 24FC08 Devices, 2.5V For 24LC08B Devices

Product Details:

Place of Origin:	CN
Brand Name:	MICROCHIP
Certification:	rohs
Model Number:	24LC08BT-I/OT
Document:	F30B69151FE3BDF4C76FD692225...5C.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	consult with
Packaging Details:	T/R
Delivery Time:	5-8days
Payment Terms:	T/T,Western Union
Supply Ability:	100000

Contact Now Chat Now

24LC08BT-I/OT 8K I²C Serial EEPROM Single Supply With Operation Down To 1.7V For 24AA08 And 24FC08 Devices, 2.5V For 24LC08B Devices

Description

Product Category::	EEPROM	Memory Size::	8 Kbit
Interface Type::	2-Wire, I2C	Maximum Clock Frequency::	400 KHz
Organization::	1 K X 8	Package / Case::	SOT-23-5
Highlight:	24LC08BT-I/OT 8K I²C EEPROM , 24LC08BT-I/OT single supply EEPROM , 24LC08BT-I/OT 1.7V operation EEPROM

24LC08BT-I/OT 8K I²C Serial EEPROM

Single Supply With Operation Down To 1.7V For 24AA08 And 24FC08 Devices, 2.5V For 24LC08B Devices

Product Overview

The Microchip Technology Inc. 24XX08 is an 8-Kbit Electrically Erasable PROM (EEPROM). The device is organized as four blocks of 256 x 8-bit memory with a two-wire serial interface. Its low-voltage design permits operation down to 1.7V with standby and active currents of only 1 µA and 1 mA, respectively. The 24XX08 also has a page write capability for up to 16 bytes of data.

Key Features

Single Supply with Operation down to 1.7V for 24AA08 and 24FC08 Devices, 2.5V for 24LC08B Devices
Low-Power CMOS Technology: Read current 1 mA maximum, Standby current 1 µA maximum (I-temp.)
2-Wire Serial Interface, I2C Compatible
Schmitt Trigger Inputs for Noise Suppression
Output Slope Control to Eliminate Ground Bounce
100 kHz, 400 kHz and 1 MHz Compatibility
Page Write Time: 5 ms Maximum
Self-Timed Erase/Write Cycle
16-Byte Page Write Buffer
Hardware Write-Protect
ESD Protection >4,000V
More than 1 Million Erase/Write Cycles
Data Retention >200 Years
Factory Programming Available
RoHS Compliant
Temperature Ranges: Industrial (-40°C to +85°C), Extended (-40°C to +125°C)
Automotive AEC-Q100 Qualified

Available Packages

8-Lead DFN, 8-Lead MSOP, 8-Lead PDIP, 8-Lead SOIC, 8-Lead TDFN, 8-Lead TSSOP, 8-Lead UDFN
5-Lead SOT-23 and 4-Ball CSP

Pin Description

Name	DFN	MSOP	PDIP	SOIC	TDFN	TSSOP	UDFN	SOT-23	CSP	Description
A0	1	1	1	1	1	1	1	—	—	Not Connected
A1	2	2	2	2	2	2	2	—	—	Not Connected
A2	3	3	3	3	3	3	3	—	—	Not Connected
VSS	4	4	4	4	4	4	4	2	2	Ground
SDA	5	5	5	5	5	5	5	3	4	Serial Address/Data I/O
SCL	6	6	6	6	6	6	6	1	3	Serial Clock
WP	7	7	7	7	7	7	7	5	—	Write-Protect Input
VCC	8	8	8	8	8	8	8	4	1	Power Supply
