AT24C04C-SSHM-T EEPROM 4K 512x8 2-WIRE NiPdAu 1.7V

AT24C04C-SSHM-T EEPROM 4K 512x8 2-WIRE NiPdAu 1.7V
AT24C04C-SSHM-T EEPROM 4K 512x8 2-WIRE NiPdAu 1.7V AT24C04C-SSHM-T EEPROM 4K 512x8 2-WIRE NiPdAu 1.7V AT24C04C-SSHM-T EEPROM 4K 512x8 2-WIRE NiPdAu 1.7V

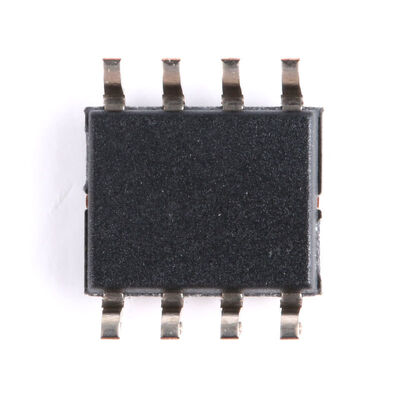

Large Image :  AT24C04C-SSHM-T EEPROM 4K 512x8 2-WIRE NiPdAu 1.7V

Product Details:
Place of Origin: CN
Brand Name: MICROCHIP
Certification: rohs
Model Number: AT24C04C-SSHM-T
Document: 1494500112478.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

AT24C04C-SSHM-T EEPROM 4K 512x8 2-WIRE NiPdAu 1.7V

Description
Organization:: 512 X 8 Package / Case:: SOIC-Narrow-8
Access Time:: 550 Ns Supply Voltage - Min:: 1.7 V
Supply Voltage - Max:: 5.5 V Mounting Style:: SMD/SMT
Highlight:

AT24C04C EEPROM 4K 512x8

,

2-wire EEPROM chip with NiPdAu

,

1.7V low voltage EEPROM

AT24C04C-SSHM-T EEPROM 4K 512x8 2-WIRE NiPdAu 1.7V
The AT24C04C-SSHM-T is a high-performance EEPROM featuring 4K memory organized as 512 x 8 with 2-wire serial interface, designed for low-voltage operation from 1.7V to 5.5V.
Standard Features
  • Low-voltage and Standard-voltage Operation (VCC = 1.7V to 5.5V)
  • Internally Organized as 512 x 8 (4K)
  • I2C-compatible (2-wire) Serial Interface
  • Schmitt Trigger, Filtered Inputs for Noise Suppression
  • Bidirectional Data Transfer Protocol
  • 1MHz (2.5V, 2.7V, 5V), 400kHz (1.7V) Compatibility
  • Write Protect Pin for Hardware Data Protection
  • 16-byte Page Write Mode (Partial Page Writes Allowed)
  • Self-timed Write Cycle (5ms Max)
  • High-reliability: Endurance: 1,000,000 Write Cycles, Data Retention: 100 Years
  • Green Package Options (Pb/Halide-free/RoHS Compliant)
  • Package Options: 8-lead PDIP, 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 5-lead SOT23, and 8-ball VFBGA
  • Die Options: Wafer Form and Tape and Reel
Pin Configuration
Pin Name Function
NC No Connect
A1 Address Input (4K Only)
A2 Address Input
SDA Serial Data
SCL Serial Clock Input
WP Write Protect
GND Ground
VCC Power Supply

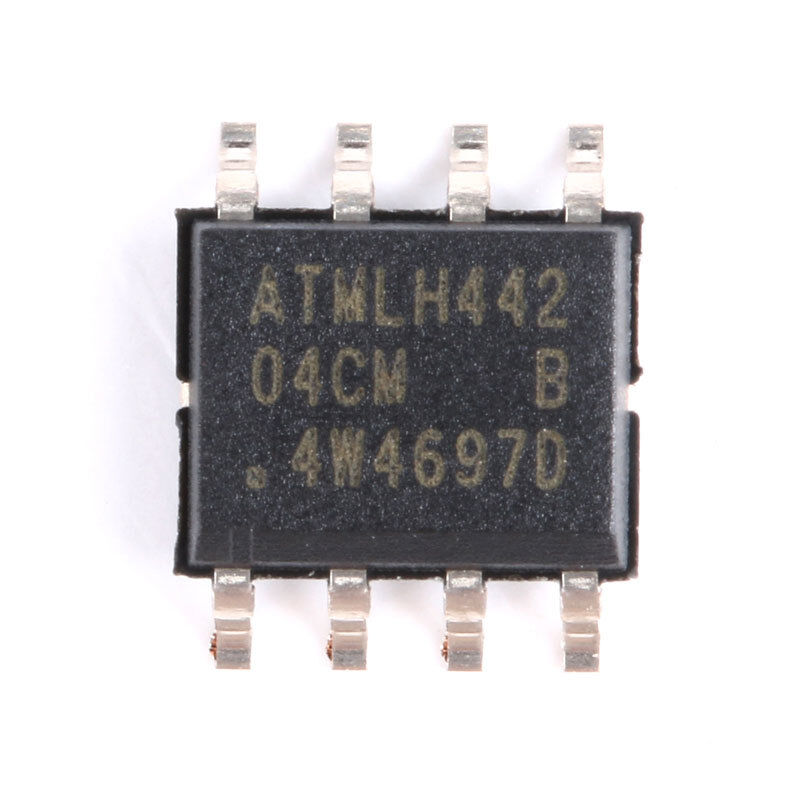

AT24C04C-SSHM-T EEPROM 4K 512x8 2-WIRE NiPdAu 1.7V 0 AT24C04C-SSHM-T EEPROM 4K 512x8 2-WIRE NiPdAu 1.7V 1 AT24C04C-SSHM-T EEPROM 4K 512x8 2-WIRE NiPdAu 1.7V 2

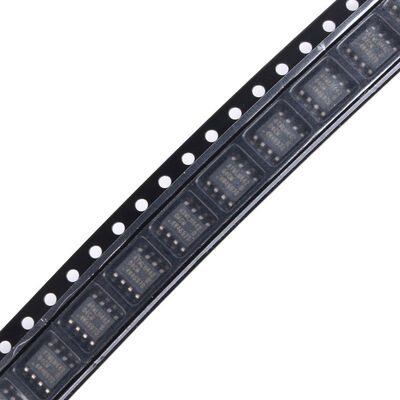

Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
