GD25Q128ESIG Uniform Sector Dual And Quad Serial Flash 500us 133MHz

GD25Q128ESIG Uniform Sector Dual And Quad Serial Flash 500us 133MHz
GD25Q128ESIG Uniform Sector Dual And Quad Serial Flash 500us 133MHz GD25Q128ESIG Uniform Sector Dual And Quad Serial Flash 500us 133MHz GD25Q128ESIG Uniform Sector Dual And Quad Serial Flash 500us 133MHz GD25Q128ESIG Uniform Sector Dual And Quad Serial Flash 500us 133MHz

Large Image :  GD25Q128ESIG Uniform Sector Dual And Quad Serial Flash 500us 133MHz

Product Details:
Place of Origin: CN
Brand Name: GigaDevice
Certification: rohs
Model Number: GD25Q128ESIG
Document: C2758105_5B8FF46BBA9FF880A5...0C.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

GD25Q128ESIG Uniform Sector Dual And Quad Serial Flash 500us 133MHz

Description
Operating Temperature: - Operating Voltage: 2.7V~3.6V
Interface Type: SPI Storage Capadity: 128Mbit
Clock Frequency (fc): 133MHz Page Write Time (Tpp): 500us
Highlight:

GD25Q128ESIG serial flash memory

,

Uniform Sector NOR FLASH

,

Dual Quad SPI flash 133MHz

GD25Q128ESIG Uniform Sector Dual And Quad Serial Flash
128M-bit Serial Flash memory with 16M-Byte capacity and 256 bytes per programmable page, featuring fast program/erase speeds and multiple SPI interface options.
Key Features
  • Memory Capacity: 128M-bit Serial Flash (16M-Byte) with 256 bytes per programmable page
  • Fast Program/Erase Speed: Page Program: 0.5ms typical, Sector Erase: 45ms typical, Block Erase: 0.15s/0.25s typical, Chip Erase: 50s typical
  • Multiple SPI Interfaces: Standard SPI, Dual SPI, and Quad SPI configurations
  • Flexible Architecture: Uniform Sector of 4K-Byte and Uniform Block of 32/64K-Byte
  • High Speed Performance: 133MHz clock frequency with 30PF load, Dual I/O up to 266Mbits/s, Quad I/O up to 532Mbits/s
  • Low Power Consumption: 14μA typical standby current, 1μA typical deep power down current
  • Write Protection: Software/hardware write protection with WP# Pin and top/bottom block protection
  • Security Features: 128-bit Unique ID, SFDP register, 3x1024-Byte Security Registers with OTP Locks
  • Reliability: Minimum 100,000 Program/Erase cycles with 20-year data retention
  • Power Supply: Single voltage range: 2.7-3.6V
Pin Configuration
Pin No. Pin Name I/O Description
1 CS# I Chip Select Input
2 SO (IO1) I/O Data Output (Data Input Output 1)
3 WP# (IO2) I/O Write Protect Input (Data Input Output 2)
4 VSS Ground
5 SI (IO0) I/O Data Input (Data Input Output 0)
6 SCLK I Serial Clock Input
7 HOLD#/RESET# (IO3) I/O Hold or Reset Input (Data Input Output 3)
8 VCC Power Supply

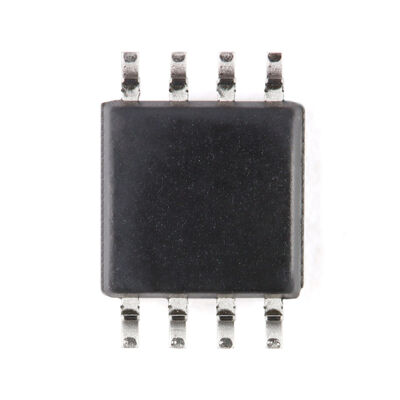

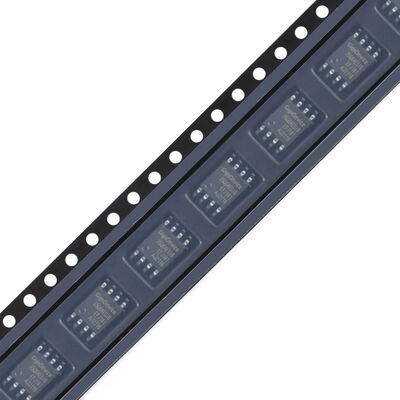

Product Images
GD25Q128ESIG Uniform Sector Dual And Quad Serial Flash 500us 133MHz 0 GD25Q128ESIG Uniform Sector Dual And Quad Serial Flash 500us 133MHz 1 GD25Q128ESIG Uniform Sector Dual And Quad Serial Flash 500us 133MHz 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
