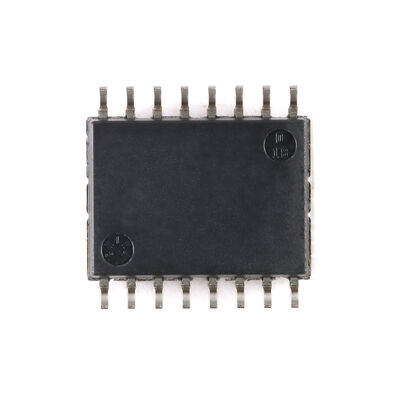

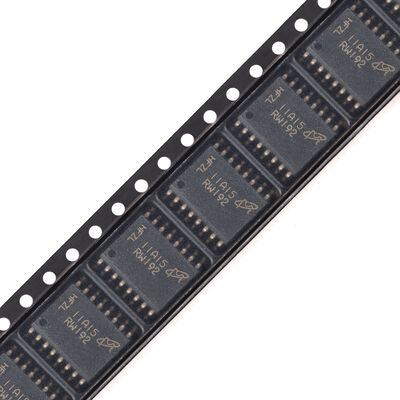

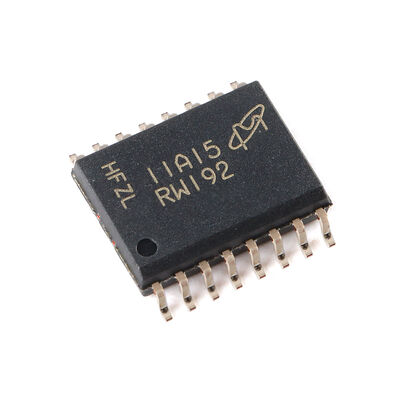

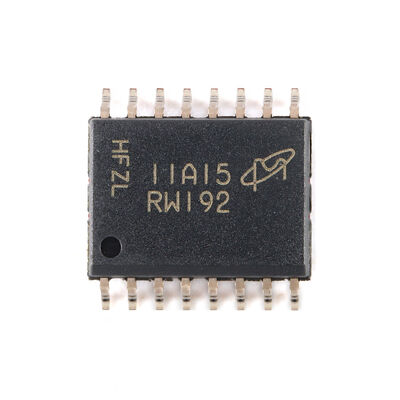

MT25QU01GBBB8ESF-0SIT 1Gb 1.8V Multiple I/O Serial Flash Memory 1.8ms 166MHz

MT25QU01GBBB8ESF-0SIT 1Gb 1.8V Multiple I/O Serial Flash Memory 1.8ms 166MHz
MT25QU01GBBB8ESF-0SIT 1Gb 1.8V Multiple I/O Serial Flash Memory 1.8ms 166MHz MT25QU01GBBB8ESF-0SIT 1Gb 1.8V Multiple I/O Serial Flash Memory 1.8ms 166MHz MT25QU01GBBB8ESF-0SIT 1Gb 1.8V Multiple I/O Serial Flash Memory 1.8ms 166MHz MT25QU01GBBB8ESF-0SIT 1Gb 1.8V Multiple I/O Serial Flash Memory 1.8ms 166MHz

Large Image :  MT25QU01GBBB8ESF-0SIT 1Gb 1.8V Multiple I/O Serial Flash Memory 1.8ms 166MHz

Product Details:
Place of Origin: CN
Brand Name: micron
Certification: rohs
Model Number: MT25QU01GBBB8ESF-0SIT
Document: F9B0B434F89BA890DBA9ACF2E9A...14.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

MT25QU01GBBB8ESF-0SIT 1Gb 1.8V Multiple I/O Serial Flash Memory 1.8ms 166MHz

Description
Operating Temperature: -40℃~+85℃ Operating Voltage: 1.7V~2V
Interface Type: SPI Storage Capadity: 1Gbit
Clock Frequency (fc): 166MHz Page Write Time (Tpp): 1.8ms
Highlight:

1.8V serial flash memory

,

1Gb NOR flash memory

,

166MHz multiple I/O flash

MT25QU01GBBB8ESF-0SIT 1Gb 1.8V Multiple I/O Serial Flash Memory 1.8ms 166MHz
Product Overview
MT25QU01GBBB8ESF-0SIT 1Gb 1.8V Multiple I/O Serial Flash Memory 1.8ms 166MHz
Key Features
  • Stacked device (two 512Mb die)
  • SPI-compatible serial bus interface
  • Single and double transfer rate (STR/DTR)
  • Clock frequency: 166 MHz (MAX) for all protocols in STR; 90 MHz (MAX) for all protocols in DTR
  • Dual/quad I/O commands for increased throughput up to 90 MB/s
  • Supported protocols: Extended, Dual and Quad I/O both STR and DTR
  • Execute-in-place (XIP)
  • PROGRAM/ERASE SUSPEND operations
  • Volatile and nonvolatile configuration settings
  • Software reset
  • Additional reset pin for selected part numbers
  • 3-byte and 4-byte address modes: enable memory access beyond 128Mb
  • Dedicated 64-byte OTP area outside main memory: Readable and user-lockable
  • Erase capability: Die erase; Sector erase 64KB uniform granularity; Subsector erase 4KB, 32KB granularity
  • Erase performance: 400KB/sec (64KB sector)
  • Erase performance: 80KB/sec (4KB sub-sector)
  • Program performance: 2MB/sec
  • Security and write protection: Volatile and nonvolatile locking and software write protection for each 64KB sector; Nonvolatile configuration locking; Password protection; Hardware write protection: nonvolatile bits(BP[3:0] and TB) define protected area size; Program/erase protection during power-up; CRC detects accidental changes to raw data
  • Electronic signature: JEDEC-standard 3-byte signature (BB21h); Extended device ID: two additional bytes identify device factory options
  • JESD47H-compliant: Minimum 100,000 ERASE cycles per sector; Data retention: 20 years (TYP)
Options Marking
  • Voltage: 1.7-2.0V U
  • Density: 1Gb 01G
  • Device stacking: 2 die stacked B
  • Device generation: B
  • Die revision: B
  • Pin configuration: HOLD# 1; RESET and HOLD# 8
  • Sector Size: 64KB E
  • Packages: JEDEC-standard, RoHS compliant; 24-ball T-PBGA 05/6mm x 8mm(TBGA24)12; 16-pin SOP2, 300 mils(SO16W, SO16-Wide, SOIC-16)SF; W-PDFN-8 8mm x 6mm (MLP8 8mmx 6mm)W9
  • Security features: Standard security 0
  • Special options: Standard S; Automotive A
  • Operating temperature range: From -40°C to +85°C IT; From -40°C to +105°C AT; From -40°C to +125°C UT
Performance Data
Number of Dummy Clock Cycles FAST READ DUAL OUTPUT FAST READ DUAL I/O FAST READ QUAD OUTPUT FAST READ QUAD I/O FAST READ
10 166 166 152 150 125
11 166 166 162 150 134
12 166 166 166 150 143
13 166 166 166 150 150
14 166 166 166 150 150
MT25QU01GBBB8ESF-0SIT 1Gb 1.8V Multiple I/O Serial Flash Memory 1.8ms 166MHz 0 MT25QU01GBBB8ESF-0SIT 1Gb 1.8V Multiple I/O Serial Flash Memory 1.8ms 166MHz 1 MT25QU01GBBB8ESF-0SIT 1Gb 1.8V Multiple I/O Serial Flash Memory 1.8ms 166MHz 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
