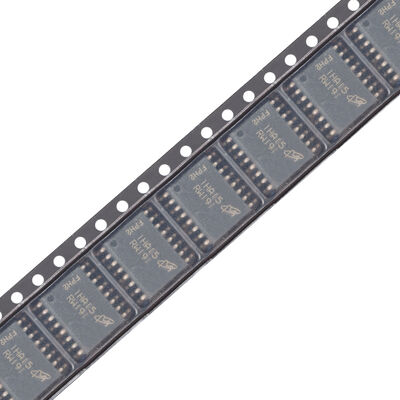

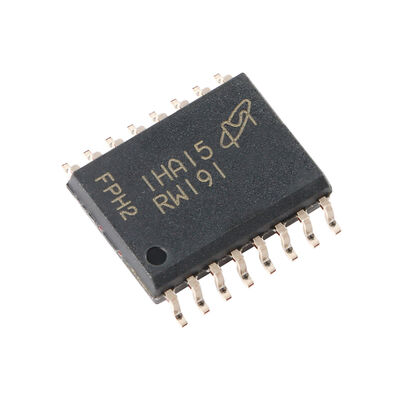

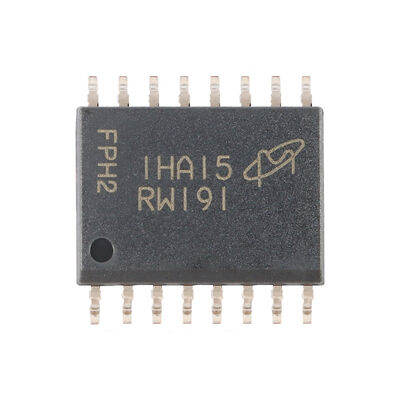

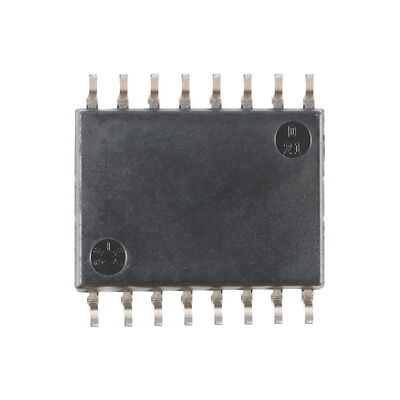

MT25QL256ABA8ESF-0SIT NOR FLASH 120us 133MHz 256Mb 3V Multiple I/O Serial Flash Memory

MT25QL256ABA8ESF-0SIT NOR FLASH 120us 133MHz 256Mb 3V Multiple I/O Serial Flash Memory
MT25QL256ABA8ESF-0SIT NOR FLASH 120us 133MHz 256Mb 3V Multiple I/O Serial Flash Memory MT25QL256ABA8ESF-0SIT NOR FLASH 120us 133MHz 256Mb 3V Multiple I/O Serial Flash Memory MT25QL256ABA8ESF-0SIT NOR FLASH 120us 133MHz 256Mb 3V Multiple I/O Serial Flash Memory MT25QL256ABA8ESF-0SIT NOR FLASH 120us 133MHz 256Mb 3V Multiple I/O Serial Flash Memory

Large Image :  MT25QL256ABA8ESF-0SIT NOR FLASH 120us 133MHz 256Mb 3V Multiple I/O Serial Flash Memory

Product Details:
Place of Origin: CN
Brand Name: micron
Certification: rohs
Model Number: MT25QL256ABA8ESF-0SIT
Document: 9CFDC3C7B0D583453244C4C52A7...CA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

MT25QL256ABA8ESF-0SIT NOR FLASH 120us 133MHz 256Mb 3V Multiple I/O Serial Flash Memory

Description
Operating Temperature: -40℃~+85℃ Operating Voltage: 2.7V~3.6V
Interface Type: SPI Storage Capadity: 256Mbit
Clock Frequency (fc): 133MHz Page Write Time (Tpp): 120us
Highlight:

256Mb NOR Flash Memory

,

3V Multiple I/O Serial Flash

,

133MHz NOR Flash with warranty

MT25QL256ABA8ESF-0SIT NOR FLASH Memory
256Mb 3V Multiple I/O Serial Flash Memory with 133MHz clock frequency and 120us access time
Key Features
  • SPI-compatible serial bus interface
  • Single and double transfer rate (STR/DTR) operation
  • 133 MHz maximum clock frequency (STR), 90 MHz (DTR)
  • Dual/quad I/O commands for throughput up to 90 MB/s
  • Execute-in-place (XIP) capability
  • Program/erase suspend operations
  • Volatile and nonvolatile configuration settings
  • 3-byte and 4-byte address modes for memory beyond 128Mb
  • 64-byte OTP area outside main memory
  • Flexible erase capabilities: bulk, sector (64KB), subsector (4KB, 32KB)
  • Enhanced security with write protection and password protection
  • JEDEC-standard electronic signature
  • 100,000 erase cycles per sector minimum
  • 20-year data retention typical
Pin Configuration
Symbol Type Description
VSS Supply Core and I/O ground connection
DNU – Do not use: Leave floating, do not connect
RFU – Reserved for future use: Leave floating
NC – No connect: No internal connection
MT25QL256ABA8ESF-0SIT NOR FLASH 120us 133MHz 256Mb 3V Multiple I/O Serial Flash Memory 0 MT25QL256ABA8ESF-0SIT NOR FLASH 120us 133MHz 256Mb 3V Multiple I/O Serial Flash Memory 1 MT25QL256ABA8ESF-0SIT NOR FLASH 120us 133MHz 256Mb 3V Multiple I/O Serial Flash Memory 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.

Tag:

spi nor flash,

nor spi,

nor spi flash
