MT25QU128ABA1ESE-0SIT NOR FLASH 128Mb 1.8V Multiple I/O Serial Flash Memory 1.7V~2V SPI

MT25QU128ABA1ESE-0SIT NOR FLASH 128Mb 1.8V Multiple I/O Serial Flash Memory 1.7V~2V SPI
MT25QU128ABA1ESE-0SIT NOR FLASH 128Mb 1.8V Multiple I/O Serial Flash Memory 1.7V~2V SPI MT25QU128ABA1ESE-0SIT NOR FLASH 128Mb 1.8V Multiple I/O Serial Flash Memory 1.7V~2V SPI MT25QU128ABA1ESE-0SIT NOR FLASH 128Mb 1.8V Multiple I/O Serial Flash Memory 1.7V~2V SPI MT25QU128ABA1ESE-0SIT NOR FLASH 128Mb 1.8V Multiple I/O Serial Flash Memory 1.7V~2V SPI

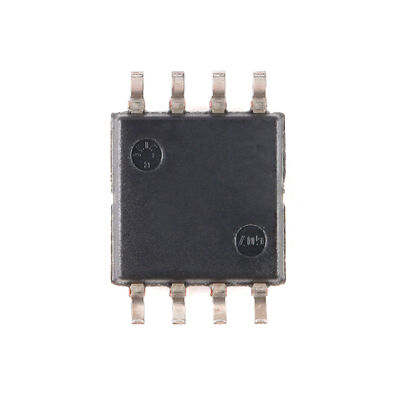

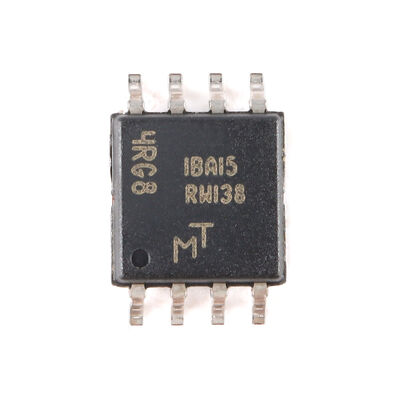

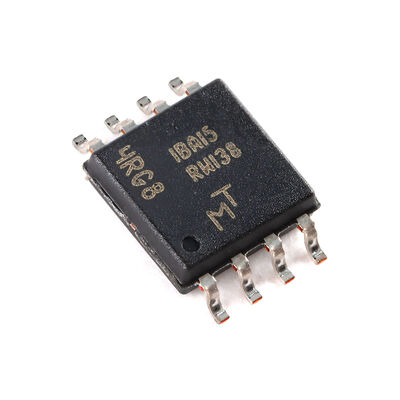

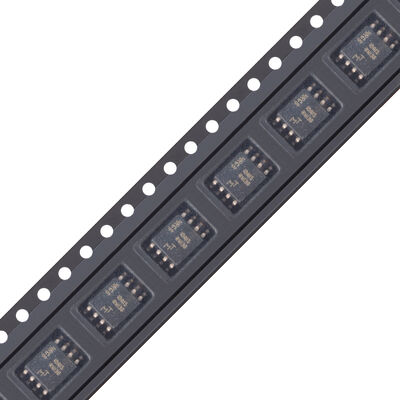

Large Image :  MT25QU128ABA1ESE-0SIT NOR FLASH 128Mb 1.8V Multiple I/O Serial Flash Memory 1.7V~2V SPI

Product Details:
Place of Origin: CN
Brand Name: micron
Certification: rohs
Model Number: MT25QU128ABA1ESE-0SIT
Document: C6D72B35E64A540142568E13A82...04.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

MT25QU128ABA1ESE-0SIT NOR FLASH 128Mb 1.8V Multiple I/O Serial Flash Memory 1.7V~2V SPI

Description
Operating Temperature: -40℃~+85℃ Operating Voltage: 1.7V~2V
Interface Type: SPI Storage Capadity: 128Mbit
Clock Frequency (fc): 133MHz Page Write Time (Tpp): -
Highlight:

1.8V NOR FLASH 128Mb SPI

,

1.7V~2V serial flash memory

,

multiple I/O NOR FLASH

MT25QU128ABA1ESE-0SIT NOR FLASH 128Mb 1.8V Multiple I/O Serial Flash Memory
128Mb 1.8V Multiple I/O Serial Flash Memory with 1.7V~2V SPI interface
Key Features
  • SPI-compatible serial bus interface
  • Single and double transfer rate (STR/DTR) support
  • Clock frequency: 166 MHz (MAX) for STR, 90 MHz (MAX) for DTR protocols
  • Dual/quad I/O commands for increased throughput up to 90 MB/s
  • Supported protocols in both STR and DTR: Extended I/O, Dual I/O, Quad I/O
  • Execute-in-place (XIP) capability
  • PROGRAM/ERASE SUSPEND operations
  • Volatile and nonvolatile configuration settings
  • Software reset functionality
  • Additional reset pin for selected part numbers
  • Dedicated 64-byte OTP area outside main memory
  • Comprehensive erase capability: Bulk erase, Sector erase (64KB uniform), Subsector erase (4KB, 32KB granularity)
  • Advanced security and write protection features
  • JEDEC-standard 3-byte signature (BB18h)
  • Extended device ID for factory options identification
  • JESD47H-compliant: 100,000 ERASE cycles per sector minimum, 20 years data retention typical
Operation Commands
Operation Name Description/Conditions
WRITE ENABLE (06h) Sets the write enable latch bit before each PROGRAM, ERASE, and WRITE command
WRITE DISABLE (04h) Clears the write enable latch bit. In case of protection error, WRITE DISABLE will not clear the bit. A CLEAR FLAG STATUS REGISTER command must be issued to clear both flags
MT25QU128ABA1ESE-0SIT NOR FLASH 128Mb 1.8V Multiple I/O Serial Flash Memory 1.7V~2V SPI 0 MT25QU128ABA1ESE-0SIT NOR FLASH 128Mb 1.8V Multiple I/O Serial Flash Memory 1.7V~2V SPI 1 MT25QU128ABA1ESE-0SIT NOR FLASH 128Mb 1.8V Multiple I/O Serial Flash Memory 1.7V~2V SPI 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
  • How to obtain the price? We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
  • What is your delivery time? Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
  • What are your payment terms? Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
  • What are the shipping options? Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
