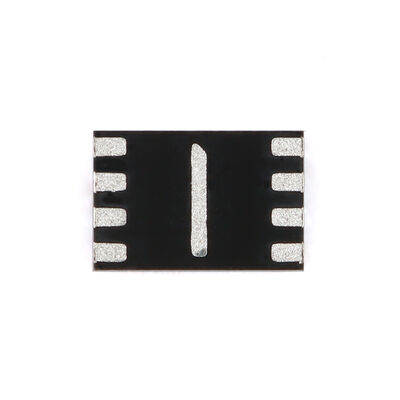

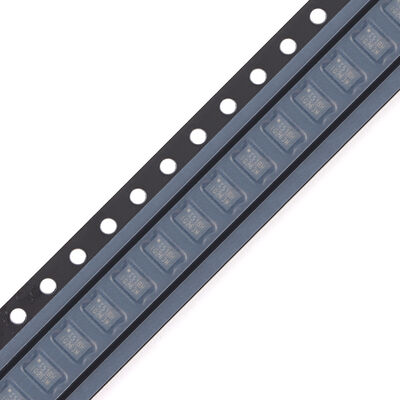

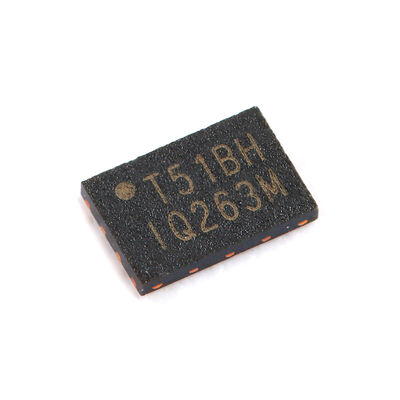

W25Q16JWXHIQ 1.8V 16M-BITSERIAL FLASH MEMORY WITHDUAL QUAD SPI 800us 133MHz

W25Q16JWXHIQ 1.8V 16M-BITSERIAL FLASH MEMORY WITHDUAL QUAD SPI 800us 133MHz
W25Q16JWXHIQ 1.8V 16M-BITSERIAL FLASH MEMORY WITHDUAL QUAD SPI 800us 133MHz W25Q16JWXHIQ 1.8V 16M-BITSERIAL FLASH MEMORY WITHDUAL QUAD SPI 800us 133MHz W25Q16JWXHIQ 1.8V 16M-BITSERIAL FLASH MEMORY WITHDUAL QUAD SPI 800us 133MHz W25Q16JWXHIQ 1.8V 16M-BITSERIAL FLASH MEMORY WITHDUAL QUAD SPI 800us 133MHz

Large Image :  W25Q16JWXHIQ 1.8V 16M-BITSERIAL FLASH MEMORY WITHDUAL QUAD SPI 800us 133MHz

Product Details:
Place of Origin: CN
Brand Name: Winbond
Certification: rohs
Model Number: W25Q16JWXHIQ
Document: C571260_35A2CBF0DA721D82950...E2.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

W25Q16JWXHIQ 1.8V 16M-BITSERIAL FLASH MEMORY WITHDUAL QUAD SPI 800us 133MHz

Description
Operating Temperature: -40℃~+85℃ Operating Voltage: 2.7V~3.6V
Interface Type: SPI Storage Capadity: 32Mbit
Clock Frequency (fc): 133MHz Page Write Time (Tpp): 3ms
Highlight:

1.8V 16M-bit NOR flash memory

,

Dual Quad SPI flash memory

,

133MHz serial flash memory

W25Q16JWXHIQ 1.8V 16M-Bit Serial Flash Memory with Dual/Quad SPI
High-performance 16M-bit serial flash memory featuring dual and quad SPI interfaces, operating at 1.8V with 133MHz clock speed and 800μs access time.
Key Features
  • New family of SpiFlash memories with 16M-bit / 2M-byte capacity
  • Multiple interface options: Standard SPI, Dual SPI, and Quad SPI
  • Software and hardware reset functionality
  • 133MHz Quad I/O SPI clocks with 66MB/s continuous data transfer
  • Minimum 100K program-erase cycles with 20+ year data retention
Power & Temperature Specifications
  • Single 1.65V to 1.95V supply voltage
  • Ultra-low power consumption: <0.1μA power-down (typical)
  • Operating range: -40°C to +85°C / -40°C to +105°C
Memory Architecture
  • Flexible 4KB sector architecture
  • Uniform sector/block erase (4K/32K/64K-byte)
  • Program 1 to 256 bytes per programmable page
  • Erase/program suspend and resume functionality
Security Features
  • Software and hardware write-protect
  • Special OTP (One-Time Programmable) protection
  • Top/bottom, complement array protection
  • Individual block/sector array protection
  • 64-bit unique ID for each device
  • Discoverable Parameters (SFDP) register
  • 3x256-byte security registers
  • Volatile and non-volatile status register bits
Driver Strength Configuration
DRV1, DRV0 Driver Strength
0, 0 100%
0, 1 75%
1, 0 50%
1, 1 25% (default)
Package Options
  • 8-pin SOIC 150/208-mil
  • 8-pad USON 4x3-mm
  • 8-pad WSON 6x5-mm / XSON 2x3-mm
  • 8-ball WLCSP
  • Contact Winbond for KGD and other options
W25Q16JWXHIQ 1.8V 16M-BITSERIAL FLASH ME <img alt=Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
