BPW34 PIN Photodiode With High Speed And Highradiant Sensitivity In Miniature Flat Top View Clear Plasticpackage

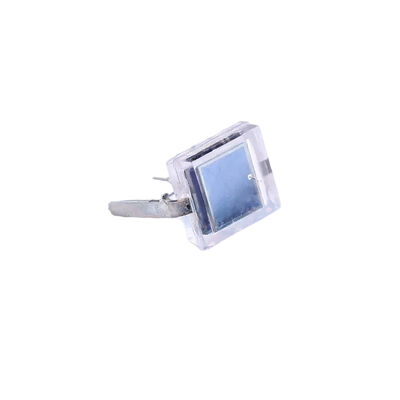

Large Image : BPW34 PIN Photodiode With High Speed And Highradiant Sensitivity In Miniature Flat Top View Clear Plasticpackage

Product Details:

Place of Origin:	CN
Brand Name:	VISHAY
Certification:	rohs
Model Number:	BPW34
Document:	C85128_15129614702161174639...39.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	consult with
Packaging Details:	T/R
Delivery Time:	5-8day
Payment Terms:	T/T,Western Union
Supply Ability:	10000

Contact Now Chat Now

BPW34 PIN Photodiode With High Speed And Highradiant Sensitivity In Miniature Flat Top View Clear Plasticpackage

Description

Operating Temperature:	-40℃~+100℃	Direct Current Reverse Withstand Voltage (Vr):	60V
Receiving Angle:	±65°	Peak Wavelength:	900nm
Spectral Range:	430nm~1100nm	Dark Current:	2nA

BPW34 PIN Photodiode With High Speed And Highradiant Sensitivity In Miniature Flat Top View Clear Plasticpackage

FEATURES

Package type: leaded
Package form: top view
Dimensions (L x W x H in mm): 5.4 x 4.3 x 3.2
Radiant sensitive area (in mm2): 7.5
High photo sensitivity
High radiant sensitivity
Suitable for visible and near infrared radiation
Fast response times
Angle of half sensitivity: ϕ = ± 65°
Compliant to RoHS Directive 2002/95/EC and inaccordance to WEEE 2002/96/EC

APPLICATIONS

High speed photo detector

ORDERING INFORMATION

ORDERING CODE	PACKAGING	REMARKS	PACKAGE FORM
BPW34	Bulk	MOQ: 3000 pcs, 3000 pcs/bulk	Top view
BPW34S	Tube	MOQ: 1800 pcs, 45 pcs/tube	Top view

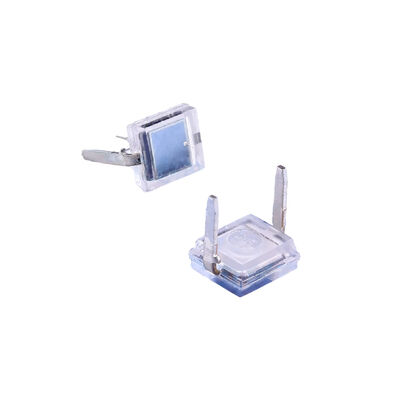

BPW34 PIN Photodiode With High Speed And Highradiant Sensitivity In Miniature Flat Top View Clear Plasticpackage 0

BPW34 PIN Photodiode With High Speed And Highradiant Sensitivity In Miniature Flat Top View Clear Plasticpackage 1

BPW34 PIN Photodiode With High Speed And Highradiant Sensitivity In Miniature Flat Top View Clear Plasticpackage 2
