STM32F407ZET6 ARM Cortex-M4 32b MCU+FPU, 210DMIPS, Up To 1MB Flash/192+4KB RAM USBOTG HS/FS Ethernet 17 TIMs 3 ADCs 15 Comm Interfaces & Camera

STM32F407ZET6 ARM Cortex-M4 32b MCU+FPU, 210DMIPS, Up To 1MB Flash/192+4KB RAM USBOTG HS/FS Ethernet 17 TIMs 3 ADCs 15 Comm Interfaces & Camera
STM32F407ZET6 ARM Cortex-M4 32b MCU+FPU, 210DMIPS, Up To 1MB Flash/192+4KB RAM USBOTG HS/FS Ethernet 17 TIMs 3 ADCs 15 Comm Interfaces & Camera STM32F407ZET6 ARM Cortex-M4 32b MCU+FPU, 210DMIPS, Up To 1MB Flash/192+4KB RAM USBOTG HS/FS Ethernet 17 TIMs 3 ADCs 15 Comm Interfaces & Camera STM32F407ZET6 ARM Cortex-M4 32b MCU+FPU, 210DMIPS, Up To 1MB Flash/192+4KB RAM USBOTG HS/FS Ethernet 17 TIMs 3 ADCs 15 Comm Interfaces & Camera

Large Image :  STM32F407ZET6 ARM Cortex-M4 32b MCU+FPU, 210DMIPS, Up To 1MB Flash/192+4KB RAM USBOTG HS/FS Ethernet 17 TIMs 3 ADCs 15 Comm Interfaces & Camera

Product Details:
Place of Origin: CN
Brand Name: ST
Certification: rohs
Model Number: STM8L101F3P6
Document: 1471342957598.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

STM32F407ZET6 ARM Cortex-M4 32b MCU+FPU, 210DMIPS, Up To 1MB Flash/192+4KB RAM USBOTG HS/FS Ethernet 17 TIMs 3 ADCs 15 Comm Interfaces & Camera

Description
Product Category:: MCU Maximum Clock Frequency:: 168MHz
Data Bus Width:: 32 Bit Program Memory Size:: 512KB
Program Memory Type:: FLASH Data RAM Size:: 192KB
Highlight:

STM32F407ZET6 Cortex-M4 microcontroller

,

32-bit MCU with USB OTG

,

ARM microcontroller with Ethernet support

STM32F407ZET6 ARM Cortex-M4 32-bit MCU with FPU
High-performance ARM Cortex-M4 32-bit microcontroller with floating point unit, delivering 210 DMIPS with up to 1MB Flash memory, 192+4KB RAM, USB OTG HS/FS, Ethernet, 17 timers, 3 ADCs, 15 communication interfaces, and camera interface.
Key Features
Processor Core
  • ARM® 32-bit Cortex®-M4 CPU with FPU
  • Adaptive real-time accelerator (ART Accelerator™) for 0-wait state execution from Flash memory
  • Operating frequency up to 168 MHz
  • Memory protection unit
  • 210 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1)
  • DSP instructions support
Memory Configuration
  • Up to 1 Mbyte of Flash memory
  • Up to 192+4 Kbytes of SRAM including 64-Kbyte of CCM (core coupled memory) data RAM
  • Flexible static memory controller supporting Compact Flash, SRAM, PSRAM, NOR and NAND memories
  • LCD parallel interface with 8080/6800 modes
Clock, Reset and Power Management
  • 1.8 V to 3.6 V application supply and I/Os
  • POR, PDR, PVD and BOR
  • 4-to-26 MHz crystal oscillator
  • Internal 16 MHz factory-trimmed RC (1% accuracy)
  • 32 kHz oscillator for RTC with calibration
  • Internal 32 kHz RC with calibration
Low Power Operation
  • Sleep, Stop and Standby modes
  • VBAT supply for RTC
  • 20×32 bit backup registers + optional 4 KB backup SRAM
Analog and Digital Conversion
  • 3×12-bit, 2.4 MSPS A/D converters: up to 24 channels and 7.2 MSPS in triple interleaved mode
  • 2×12-bit D/A converters
System Peripherals
  • General-purpose DMA: 16-stream DMA controller with FIFOs and burst support
  • Up to 17 timers: up to twelve 16-bit and two 32-bit timers up to 168 MHz
  • Each timer with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
Debug Capabilities
  • Serial wire debug (SWD) & JTAG interfaces
  • Cortex-M4 Embedded Trace Macrocell™
Product References
Reference Part Numbers
STM32F405xx STM32F405RG, STM32F405VG, STM32F405ZG, STM32F405OG, STM32F405OE
STM32F407xx STM32F407VG, STM32F407IG, STM32F407ZG, STM32F407VE, STM32F407ZE, STM32F407IE
Product Images

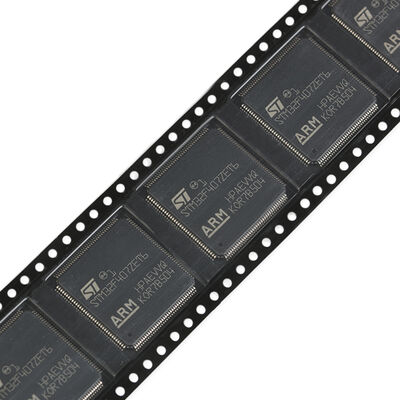

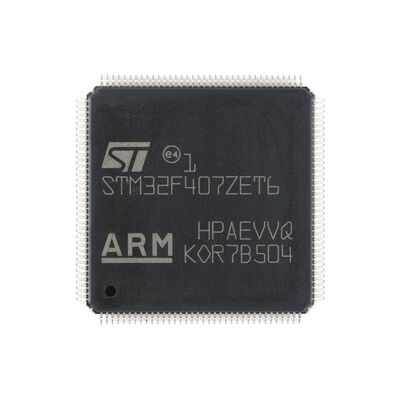

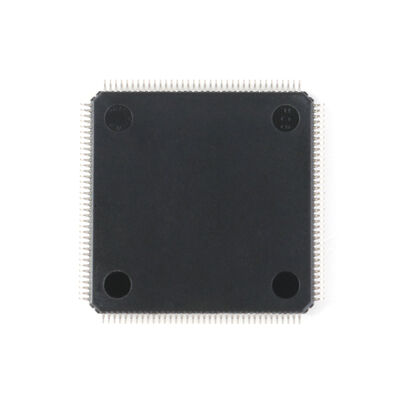

STM32F407ZET6 ARM Cortex-M4 32b MCU+FPU, 210DMIPS, Up To 1MB Flash/192+4KB RAM USBOTG HS/FS Ethernet 17 TIMs 3 ADCs 15 Comm Interfaces & Camera 0 STM32F407ZET6 ARM Cortex-M4 32b MCU+FPU, 210DMIPS, Up To 1MB Flash/192+4KB RAM USBOTG HS/FS Ethernet 17 TIMs 3 ADCs 15 Comm Interfaces & Camera 1 STM32F407ZET6 ARM Cortex-M4 32b MCU+FPU, 210DMIPS, Up To 1MB Flash/192+4KB RAM USBOTG HS/FS Ethernet 17 TIMs 3 ADCs 15 Comm Interfaces & Camera 2
