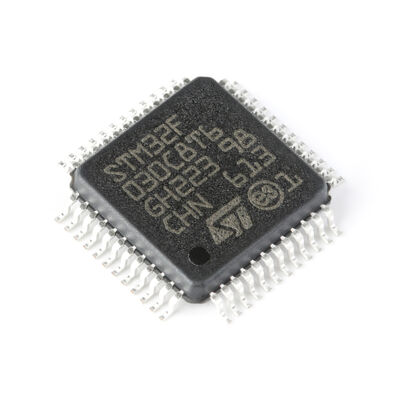

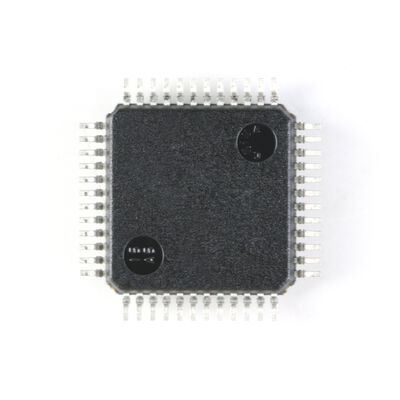

STM32F030C8T6 Value-line ARM-based 32-bit MCU With 16 To 64-KB Flash Timers ADC Communication Interfaces 2.4-3.6V Operation

STM32F030C8T6 Value-line ARM-based 32-bit MCU With 16 To 64-KB Flash Timers ADC Communication Interfaces 2.4-3.6V Operation
STM32F030C8T6 Value-line ARM-based 32-bit MCU With 16 To 64-KB Flash Timers ADC Communication Interfaces 2.4-3.6V Operation STM32F030C8T6 Value-line ARM-based 32-bit MCU With 16 To 64-KB Flash Timers ADC Communication Interfaces 2.4-3.6V Operation STM32F030C8T6 Value-line ARM-based 32-bit MCU With 16 To 64-KB Flash Timers ADC Communication Interfaces 2.4-3.6V Operation

Large Image :  STM32F030C8T6 Value-line ARM-based 32-bit MCU With 16 To 64-KB Flash Timers ADC Communication Interfaces 2.4-3.6V Operation

Product Details:
Place of Origin: CN
Brand Name: ST
Certification: rohs
Model Number: STM32F030C8T6
Document: 1457707258011.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

STM32F030C8T6 Value-line ARM-based 32-bit MCU With 16 To 64-KB Flash Timers ADC Communication Interfaces 2.4-3.6V Operation

Description
Product Category:: MCU Maximum Clock Frequency:: 48MHz
Data Bus Width:: 32 Bit Program Memory Size:: 64KB
Program Memory Type:: FLASH Data RAM Size:: 8KB
Number Of I/Os:: 39
Highlight:

STM32F030C8T6 32-bit MCU with ADC

,

ARM-based microcontroller with 64KB Flash

,

STM32F030C8T6 MCU 3.6V operation

STM32F030C8T6 Value-line ARM-based 32-bit MCU
High-performance 32-bit microcontroller with 16 to 64-KB Flash memory, integrated timers, ADC, and communication interfaces. Operating voltage range: 2.4-3.6V.
Key Features
  • Core: ARM® 32-bit Cortex™-M0 CPU, frequency up to 48 MHz
  • Memories: 16 to 64 Kbytes of Flash memory, 4 to 8 Kbytes of SRAM with HW parity checking
  • CRC calculation unit
  • Power Management: Voltage range: 2.4 V to 3.6 V, Power-on/Power down reset (POR/PDR), Low power modes: Sleep, Stop, Standby
  • Clock Management: 4 to 32 MHz crystal oscillator, 32 kHz oscillator for RTC with calibration, Internal 8 MHz RC with x6 PLL option, Internal 40 kHz RC oscillator
  • Up to 55 fast I/Os, all mappable on external interrupt vectors, Up to 36 I/Os with 5 V tolerant capability
  • 5-channel DMA controller
  • 1 x 12-bit, 1.0 µs ADC (up to 16 channels), Conversion range: 0 to 3.6 V, Separate analog supply from 2.4 up to 3.6 V
  • Up to 10 timers including advanced-control timers for PWM output with deadtime generation and emergency stop
Reference Part Numbers
Series Part Numbers
STM32F030x4 STM32F030F4
STM32F030x6 STM32F030C6, STM32F030K6
STM32F030x8 STM32F030C8, STM32F030R8
STM32F030C8T6 Value-line ARM-based 32-bit MCU With 16 To 64-KB Flash Timers ADC Communication Interfaces 2.4-3.6V Operation 0 STM32F030C8T6 Value-line ARM-based 32-bit MCU With 16 To 64-KB Flash Timers ADC Communication Interfaces 2.4-3.6V Operation 1 STM32F030C8T6 Value-line ARM-based 32-bit MCU With 16 To 64-KB Flash Timers ADC Communication Interfaces 2.4-3.6V Operation 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
