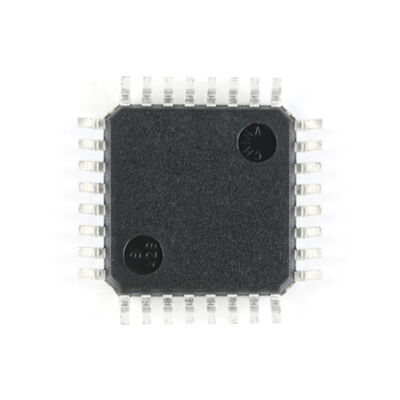

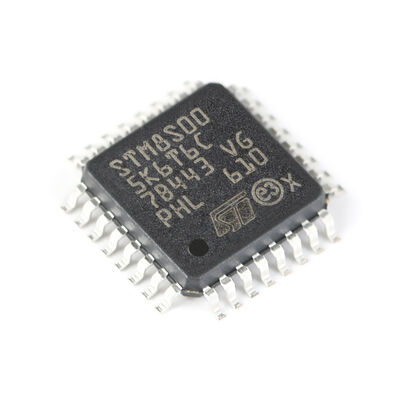

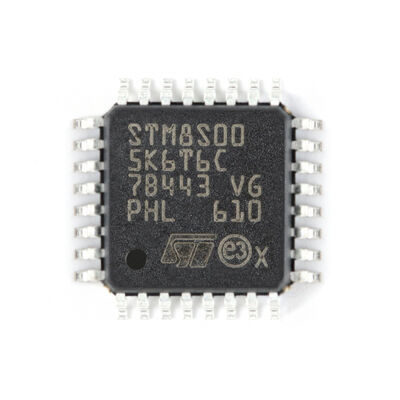

STM8S005K6T6C Value Line 16 MHz STM8S 8-bit MCU
32 Kbytes Flash with Data EEPROM, 10-bit ADC, Timers, UART, SPI, and I²C interfaces
Product Overview
The STM8S005K6T6C is a high-performance 8-bit microcontroller from STMicroelectronics' Value Line series, featuring a 16 MHz STM8 core with advanced architecture and comprehensive peripheral set.
Key Features
- 16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline
- Extended instruction set for enhanced performance
- 32 Kbytes Flash program memory with 20-year data retention
- 128 bytes true data EEPROM with 100k write/erase cycle endurance
- 2 Kbytes RAM for data storage
- Operating voltage: 2.95 V to 5.5 V
- Flexible clock control with multiple master clock sources
- Advanced power management with low power modes
- Up to 38 I/O ports with high sink capability
Clock, Reset and Power Management
- Four master clock sources: crystal resonator, external clock, internal 16 MHz RC, and internal 128 kHz RC
- Clock security system with monitor
- Individual peripheral clock control
- Low power modes: wait, active-halt, and halt
- Permanently active power-on/power-down reset
Interrupt Management
Nested interrupt controller supporting 32 interrupts with up to 37 external interrupts across 6 vectors.
Timer Systems
- Two 16-bit general purpose timers with CAPCOM channels
- Advanced 16-bit control timer with complementary outputs and dead-time insertion
- 8-bit basic timer with prescaler
- Auto wake-up timer
- Window and independent watchdog timers
Communication Interfaces
- UART with synchronous clock output, Smartcard, IrDA, and LIN support
- SPI interface up to 8 Mbit/s
- I2C interface up to 400 Kbit/s
Analog-to-Digital Converter
10-bit ADC with ±1 LSB accuracy, up to 10 multiplexed channels, scan mode, and analog watchdog functionality.
Development Support
Embedded single wire interface module (SWIM) for fast on-chip programming and non-intrusive debugging.
Memory Map
| Memory Area |
Size (bytes) |
Start Address |
End Address |
| Flash Program Memory |
32K |
0x008000 |
0x00FFFF |
| RAM |
2K |
0x000000 |
0x0007FF |
| Data EEPROM |
128 |
0x004000 |
0x00407F |
