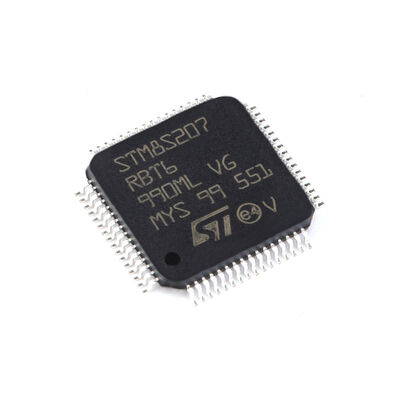

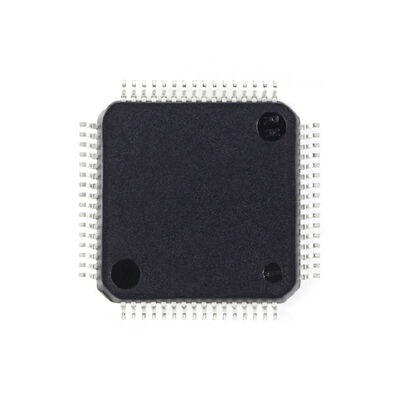

STM8S207RBT6 Performance Line 8-bit MCU
High-performance 24 MHz STM8S 8-bit microcontroller with up to 128 KB Flash memory, integrated EEPROM, 10-bit ADC, multiple timers, and comprehensive communication interfaces including 2 UARTs, SPI, I²C, and CAN.
Key Features
- Core: Advanced STM8 core with Harvard architecture, 3-stage pipeline, extended instruction set
- Performance: Up to 24 MHz max frequency, 20 MIPS at 24 MHz
- Memory: Up to 128 KB Flash, 2 KB EEPROM, 6 KB RAM
- Voltage Range: 2.95 to 5.5 V operating voltage
- Communication: CAN 2.0B, 2 UARTs, SPI, I²C interfaces
- Analog: 10-bit ADC with up to 16 channels
- I/O: Up to 68 I/Os with high sink outputs
Detailed Specifications
Clock & Power Management
- Low power crystal resonator oscillator
- Internal user-trimmable 16 MHz RC
- Internal low power 128 kHz RC
- Clock security system with monitor
- Multiple low power modes
Timers & Interrupts
- 2* 16-bit general purpose timers
- Advanced control timer with complementary outputs
- 8-bit basic timer with prescaler
- Nested interrupt controller with 32 interrupts
- Up to 37 external interrupts
Development Support
- Single wire interface module (SWIM)
- Debug module (DM)
- 96-bit unique ID for each device
Part Numbers
STM8S207xx Series: STM8S207MB, STM8S207M8, STM8S207RB, STM8S207R8, STM8S207R6, STM8S207CB, STM8S207C8, STM8S207C6, STM8S207SB, STM8S207S8, STM8S207S6, STM8S207K8, STM8S207K6
STM8S208xx Series: STM8S208MB, STM8S208M8, STM8S208RB, STM8S208R8, STM8S208R6, STM8S208CB, STM8S208C8, STM8S208C6, STM8S208SB, STM8S208S8, STM8S208S6
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
