STM32F103VBT6 Medium-density Performance Line ARM-based 32-bit MCU With 64or 128 KB Flash USB CAN 7 Timers 2 ADCs 9 Com Interfaces

STM32F103VBT6 Medium-density Performance Line ARM-based 32-bit MCU With 64or 128 KB Flash USB CAN 7 Timers 2 ADCs 9 Com Interfaces
STM32F103VBT6 Medium-density Performance Line ARM-based 32-bit MCU With 64or 128 KB Flash USB CAN 7 Timers 2 ADCs 9 Com Interfaces STM32F103VBT6 Medium-density Performance Line ARM-based 32-bit MCU With 64or 128 KB Flash USB CAN 7 Timers 2 ADCs 9 Com Interfaces STM32F103VBT6 Medium-density Performance Line ARM-based 32-bit MCU With 64or 128 KB Flash USB CAN 7 Timers 2 ADCs 9 Com Interfaces

Large Image :  STM32F103VBT6 Medium-density Performance Line ARM-based 32-bit MCU With 64or 128 KB Flash USB CAN 7 Timers 2 ADCs 9 Com Interfaces

Product Details:
Place of Origin: CN
Brand Name: ST
Certification: rohs
Model Number: STM32F103VBT6
Document: 1457707344439.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

STM32F103VBT6 Medium-density Performance Line ARM-based 32-bit MCU With 64or 128 KB Flash USB CAN 7 Timers 2 ADCs 9 Com Interfaces

Description
Product Category:: MCU Maximum Clock Frequency:: 72MHz
Data Bus Width:: 32 Bit Program Memory Size:: 128KB
Program Memory Type:: FLASH Data RAM Size:: 20KB
Number Of I/Os:: 80
Highlight:

STM32F103VBT6 ARM-based 32-bit MCU

,

STM32F103VBT6 MCU with USB CAN

,

STM32F103VBT6 microcontroller with 128KB Flash

STM32F103VBT6 Medium-Density Performance Line ARM-Based 32-Bit MCU
High-performance ARM Cortex-M3 based 32-bit microcontroller with 64 or 128 KB Flash memory, USB, CAN interface, 7 timers, 2 ADCs, and 9 communication interfaces.
Key Features
  • ARM 32-bit Cortex-M3 CPU Core
    • 72 MHz maximum frequency, 1.25 DMIPS/MHz performance
    • Single-cycle multiplication and hardware division
  • Memory Configuration
    • 64 or 128 Kbytes of Flash memory
    • 20 Kbytes of SRAM
  • Clock, Reset and Supply Management
    • 2.0 to 3.6 V application supply and I/Os
    • POR, PDR, and programmable voltage detector (PVD)
    • 4-to-16 MHz crystal oscillator
    • Internal 8 MHz factory-trimmed RC
  • Low Power Modes
    • Sleep, Stop and Standby modes
    • VBAT supply for RTC and backup registers
  • Analog-to-Digital Conversion
    • 2 x 12-bit, 1 µs A/D converters (up to 16 channels)
    • Conversion range: 0 to 3.6 V
    • Dual-sample and hold capability with temperature sensor
  • DMA Controller
    • 7-channel DMA controller
    • Supports timers, ADC, SPIs, I2Cs and USARTs
  • I/O Ports
    • Up to 80 fast I/O ports
    • 26/37/51/80 I/Os, all mappable on 16 external interrupt vectors
    • Almost all 5 V-tolerant
  • Debug Interfaces
    • Serial wire debug (SWD) & JTAG interfaces
  • Timer System
    • Three 16-bit timers with IC/OC/PWM or pulse counter
    • 16-bit motor control PWM timer with dead time generation
    • 2 watchdog timers (Independent and Window)
    • SysTick timer 24-bit downcounter
  • Communication Interfaces
    • Up to 2 x I2C interfaces (SMBus/PMBus)
    • Up to 3 USARTs with advanced capabilities
    • Up to 2 SPIs (18 Mbit/s)
    • CAN interface (2.0B Active)
    • USB 2.0 full-speed interface
  • Additional Features
    • CRC calculation unit
    • 96-bit unique ID
Part Number Reference
Reference Part Numbers
STM32F103x8 STM32F103C8, STM32F103R8, STM32F103V8, STM32F103T8
STM32F103xB STM32F103RB, STM32F103VB, STM32F103CB, STM32F103TB
Product Images

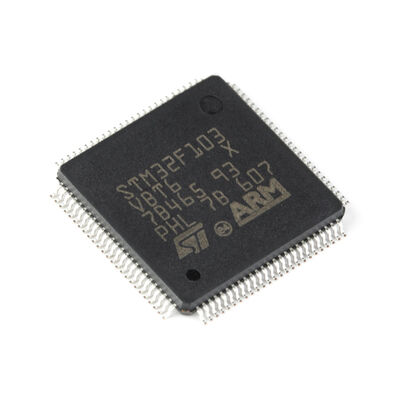

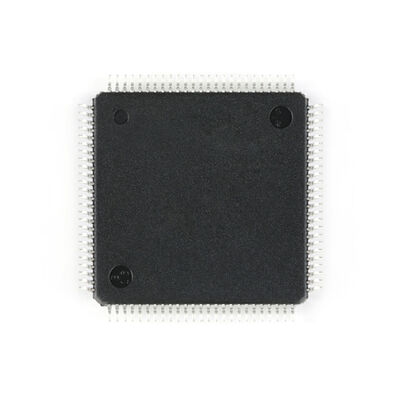

STM32F103VBT6 Medium-density Performance Line ARM-based 32-bit MCU With 64or 128 KB Flash USB CAN 7 Timers 2 ADCs 9 Com Interfaces 0 STM32F103VBT6 Medium-density Performance Line ARM-based 32-bit MCU With 64or 128 KB Flash USB CAN 7 Timers 2 ADCs 9 Com Interfaces 1 STM32F103VBT6 Medium-density Performance Line ARM-based 32-bit MCU With 64or 128 KB Flash USB CAN 7 Timers 2 ADCs 9 Com Interfaces 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
