STM8S105C6T6 Access Line 16 MHz STM8S 8-bit MCU Up To 32 Kbyte Flash Integrated EEPROM 10-bit ADC Timers UART SPI I²C

STM8S105C6T6 Access Line 16 MHz STM8S 8-bit MCU Up To 32 Kbyte Flash Integrated EEPROM 10-bit ADC Timers UART SPI I²C
STM8S105C6T6 Access Line 16 MHz STM8S 8-bit MCU Up To 32 Kbyte Flash Integrated EEPROM 10-bit ADC Timers UART SPI I²C STM8S105C6T6 Access Line 16 MHz STM8S 8-bit MCU Up To 32 Kbyte Flash Integrated EEPROM 10-bit ADC Timers UART SPI I²C STM8S105C6T6 Access Line 16 MHz STM8S 8-bit MCU Up To 32 Kbyte Flash Integrated EEPROM 10-bit ADC Timers UART SPI I²C

Large Image :  STM8S105C6T6 Access Line 16 MHz STM8S 8-bit MCU Up To 32 Kbyte Flash Integrated EEPROM 10-bit ADC Timers UART SPI I²C

Product Details:
Place of Origin: CN
Brand Name: ST
Certification: rohs
Model Number: STM8S105C6T6
Document: 1457707591193 (1).pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

STM8S105C6T6 Access Line 16 MHz STM8S 8-bit MCU Up To 32 Kbyte Flash Integrated EEPROM 10-bit ADC Timers UART SPI I²C

Description
Product Category:: MCU Maximum Clock Frequency:: 16MHz
Data Bus Width:: 8 Bit Program Memory Size:: 32KB
Program Memory Type:: FLASH Data RAM Size:: 2KB
Number Of I/Os:: 38
Highlight:

STM8S105C6T6 8-bit MCU 32KB Flash

,

STM8S Access Line MCU 16MHz

,

8-bit microcontroller with EEPROM ADC

STM8S105C6T6 Access Line 16 MHz 8-bit MCU
High-performance STM8S 8-bit microcontroller with up to 32 Kbyte Flash memory, integrated EEPROM, 10-bit ADC, and comprehensive communication interfaces including UART, SPI, and I²C.
Key Features
  • Core: 16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline with extended instruction set
  • Memory: Up to 32 Kbyte Flash program memory (20-year data retention at 55°C), 1 Kbyte true data EEPROM (300k cycle endurance), and 2 Kbyte RAM
  • Power Management: 2.95 to 5.5V operating voltage with flexible clock control and low-power modes (wait, active-halt, halt)
  • Clock System: 4 master clock sources including low power crystal resonator, external clock input, internal 16 MHz RC, and internal 128 kHz RC
  • Interrupt Management: Nested interrupt controller with 32 interrupts and up to 37 external interrupts on 6 vectors
Peripheral Clock Enable Control
Bit Peripheral Clock Bit Peripheral Clock Bit Peripheral Clock Bit Peripheral Clock
PCKEN17 TIM1 PCKEN13 UART2 PCKEN27 Reserved PCKEN23 ADC
PCKEN16 TIM3 PCKEN12 Reserved PCKEN26 Reserved PCKEN22 AWU
PCKEN15 TIM2 PCKEN11 SPI PCKEN25 Reserved PCKEN21 Reserved
PCKEN14 TIM4 PCKEN10 I2C PCKEN24 Reserved PCKEN20 Reserved

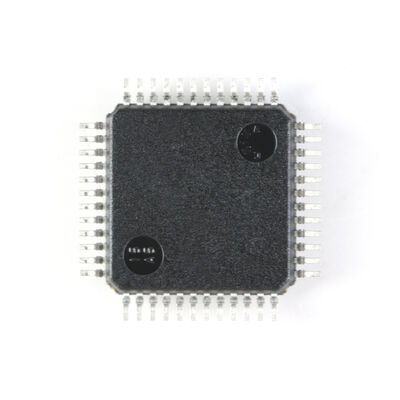

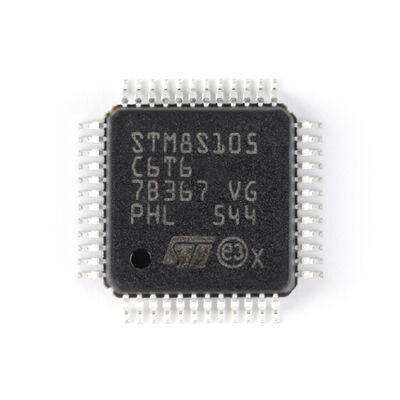

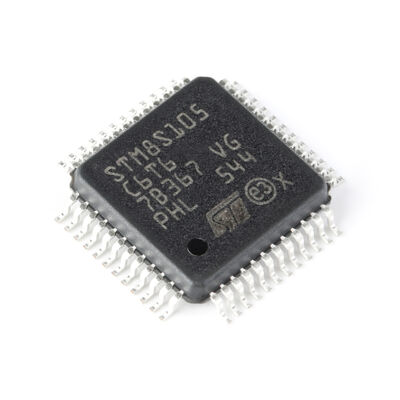

STM8S105C6T6 Access Line 16 MHz STM8S 8-bit MCU Up To 32 Kbyte Flash Integrated EEPROM 10-bit ADC Timers UART SPI I²C 0 STM8S105C6T6 Access Line 16 MHz STM8S 8-bit MCU Up To 32 Kbyte Flash Integrated EEPROM 10-bit ADC Timers UART SPI I²C 1 STM8S105C6T6 Access Line 16 MHz STM8S 8-bit MCU Up To 32 Kbyte Flash Integrated EEPROM 10-bit ADC Timers UART SPI I²C 2
